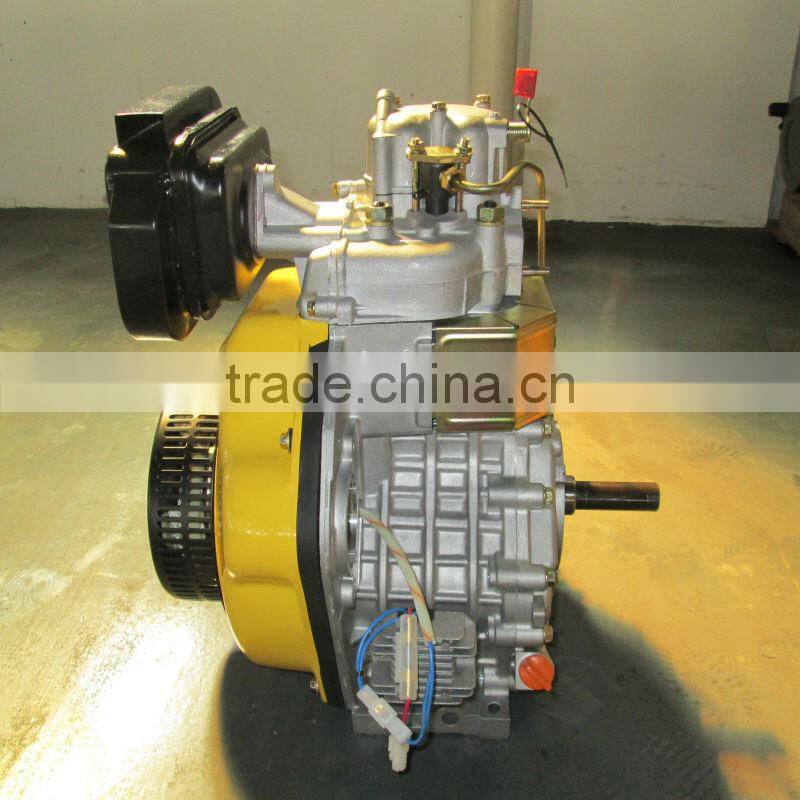

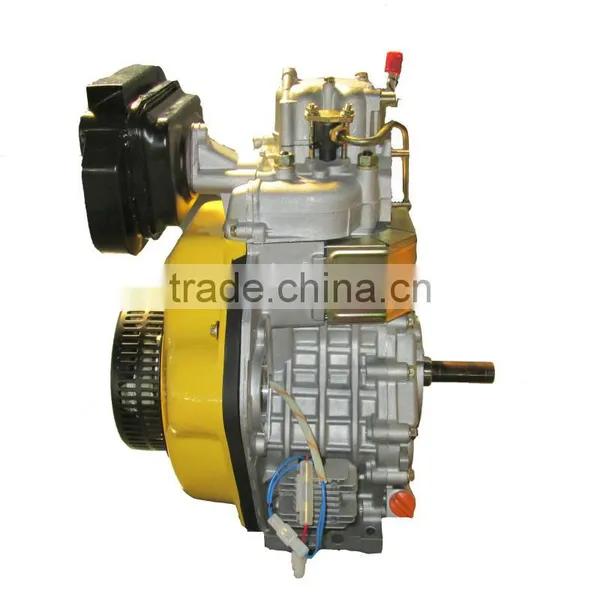

Single Cylinder Air Cooled Small Diesel Engine SD188FA(E)

Name: Single Cylinder Air Cooled Small Diesel Engine SD188FA(E)
Brand: Halotop
SKU: 141199086
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Usage:

Other

Fuel:

Diesel

Shanghai Halotop Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China sea port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Usage Other

Fuel Diesel

Stroke 4 Stroke

Cylinder Single Cylinder

Cold Style Other, Air-cooled

Start Other, Recoil or Electric starter

Brand Name Halotop

Model Number SD188FA(E)

Dimension(L*W*H) 422*480*530

Weight 52

After-sales Service Provided Overseas service center available

Specifications

Single cylinder air cooled small diesel engine SD188FA(E)
1.Single cylinder diesel engine
2.Air cooled
3.Small engine

Product Description

Single cylinder air cooled small diesel engine SD188FA(E)

Single cylinder diesel engine / air cooled engine / small engine

Diesel Engine
Model	SD188FA(E)
Engine Type	Single cylinder,vertical,4 stroke,air cooled,diesel engine,direct injection
Bore*Stroke(mm)	88*72
Displacement(L)	428
Combustion Ration	19:01
Rated power(kw/rpm)	7.5	7.8
Rated Speed(rmp)	3000	3600
The lowest speed at zero load(rpm)	≤1300
Rotation direction(view from the flywheel)	Anticlockwise
Starting System	Recoil or Electric starter
Lube oil type	SAE10W-30,SAE20W-40 or L-ECD grade(above)
Fuel type	Diesel
Fuel consumption(g/kwh)	274
Fuel tank capacity(L)	5.5
Lube Oil Capacity(L)	1.65
DIM LXWXH(mm)	422480530
N.W.(kg)	52
