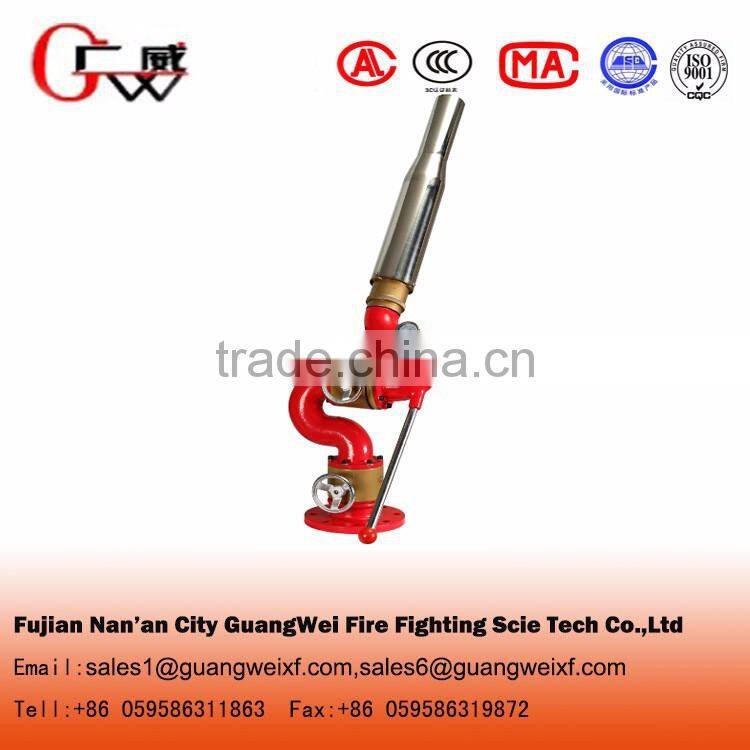

Manual Operation Portable Foam Water Gun for Foam Fire Fighting System

Manual Operation Portable Foam Water Gun for Foam Fire Fighting System photo-1

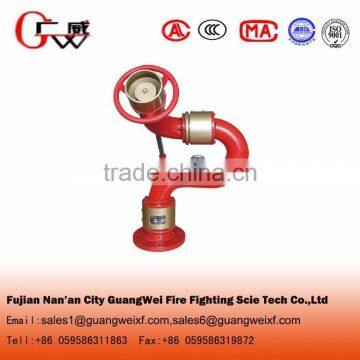

Manual Operation Portable Foam Water Gun for Foam Fire Fighting System photo-2
Manual Operation Portable Foam Water Gun for Foam Fire Fighting System photo-3
Manual Operation Portable Foam Water Gun for Foam Fire Fighting System photo-4

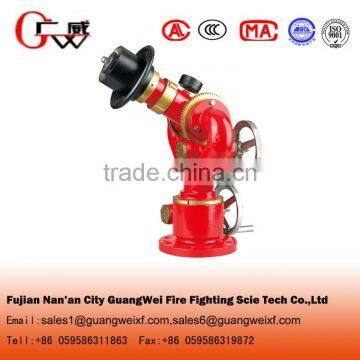

Manual Operation Portable Foam Water Gun for Foam Fire Fighting System photo-5

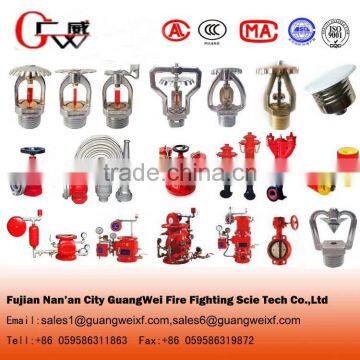

Manual Operation Portable Foam Water Gun for Foam Fire Fighting System photo-6
US$ 279 - 311 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
GW
Model Number:
PS20-PS80
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name GW
Model Number PS20-PS80

Manual operation portable foam water gun for foam fire fighting system



1.Brief information

a. Wireless electric remote control drive

b. Stable performance, flexible operation and easy to maintenance.

c. Low inlet pressure

d. Large flow and range far

e. Light weight and small volume.

f. It can spray in close distance, remote monitoring.

g. It can spray water column and water mist use different gun head.



2.Technical Parameter

Water Flow Rates

20L/S,30L/S,40L/S,50L/S,60L/S,70L/S,80L/S

Jetting Range

From 48 meters to 80 meters,it depends on the working pressure

Working Pressure

0.8 Mpa,0.9Mpa,1.0Mpa,1.2Mpa

Connection type

Flange type

Body Material

Stainless Steel 304,Cast iron,Ductile iron

Sealing Material

NBR

Painting Color

Red,RAL3000

Flange Size

80mm,100mm

Applicable Medium

Water,Foam,foam mixture,such as AFFF3%,AFFF6%

Updown Turning angle

>70 degree

Horizontal Turning Angle

>180 degree

Installation Type

Fixed type

Working Type

Manual type

Manufacture Standard

GB50338-2003

Model Number

PS



Model

PS20

PS30

PS40

PS50

PS60

PS70

PS80

L/S

20

30

40

50

60

70

80

Working Pressure(Mpa)

0.8

0.8

0.8

0.8

0.9

0.9

0.9

Max Working Pressure(Mpa)

1.0

1.0

1.0

1.0

1.2

1.2

1.2

Flange Connection(mm)

DN80

DN80

DN80

DN80

DN100

DN100

DN100

Water Jetting Range(m)

≥ 48

≥ 55

≥ 60

≥ 65

≥ 70

≥75

≥80

Horizontal Angle (Degree)

0-360

0-360

0-360

0-360

0-360

0-360

0-360

Max angle of elevation (Degree)

70

70

70

70

70

70

70

Max Angle Of Depression (Degree)

-70

-70

-70

-70

-70

-70

-70



3. Pictures

Manual operation portable foam water gun for foam fire fighting system

Manual operation portable foam water gun for foam fire fighting systemManual operation portable foam water gun for foam fire fighting systemManual operation portable foam water gun for foam fire fighting system
