Home > Products > Fire nozzle&monitor > Spray jet storz fire hose nozzle
Spray jet storz fire hose nozzle
USD $1 - $40
/ Set
20 Sets(Min.Order)
- 3000 Set / Sets per Month
- Xiamen
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | GW | |
| Model Number | QZ3.5/5 , QZ3.5/7.5, QZ3.5/5,QZ3.5/5 |
Product Description
Spray jet storz fire hose nozzle
1.Brief description
QZ3.5/5, QZ3.5/7.5 fire-fighting straight-through water gun are used for putting out fire by waterplay. When it is connected with water band, it will jet dense and rich waterflow. And its advantage is long jetting range and large quantity of water, etc.
2.Technical parameter
| Item | Straight-through Type | |
| Model | QZ3.5/5 | QZ3.5/7.5 |
| Nominal flow rate(L/S) | 5 | 7.5 |
| Jetting Range(m) | ≥25 | ≥28 |
| Output Nozzel Nominal Diameter(mm) | 16 | 19 |
| Coupling Nominal Diameter(mm) | 50/65 | |
| Working Pressure(Mpa) | 0.35 | |
| Flow Allowable Variation | ±8 | |
| Item | Straight-through Switch Type | |
| Model | QZG3.5/5 | QZG3.5/7.5 |
| Nominal flow rate(L/S) | 5 | 7.5 |
| Jetting Range(m) | ≥25 | ≥28 |
| Output Nozzel Nominal Diameter(mm) | 16 | 19 |
| Coupling Nominal Diameter(mm) | 50/65 | |
| Working Pressure(Mpa) | 0.35 | |
| Flow Allowable Variation | ±8 | |
| Item | Multi-funtional type | |
| Model | QDH6.0/4.0 | QDH6.0/6.5 |
| Nominal flow rate(L/S) | 5 | 7.5 |
| Jetting Range(m) | ≥25 straight-through type ≥12.5 spray fog type | ≥30 straight-through type ≥15 spray fog type |
| Coupling Nominal Diameter(mm) | 50/65 | |
| Working Pressure(Mpa) | 0.6 | |
| Flow Allowable Variation | ±8 | |

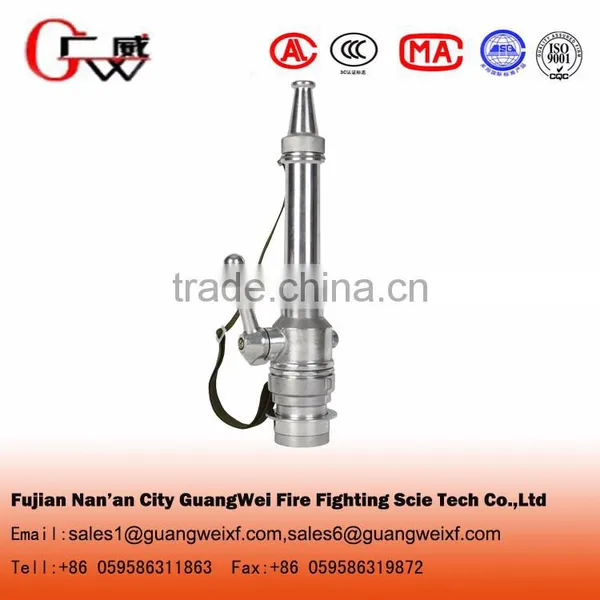

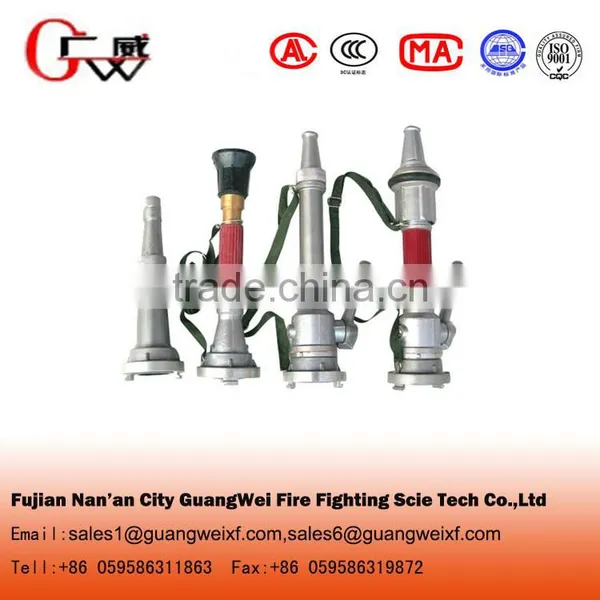

3.Products images
