Specifications
Configurable for alarm and recover smsAutomatically report the status of itself on schedule
Support remote setting via
HIGH qulity GSM RTU

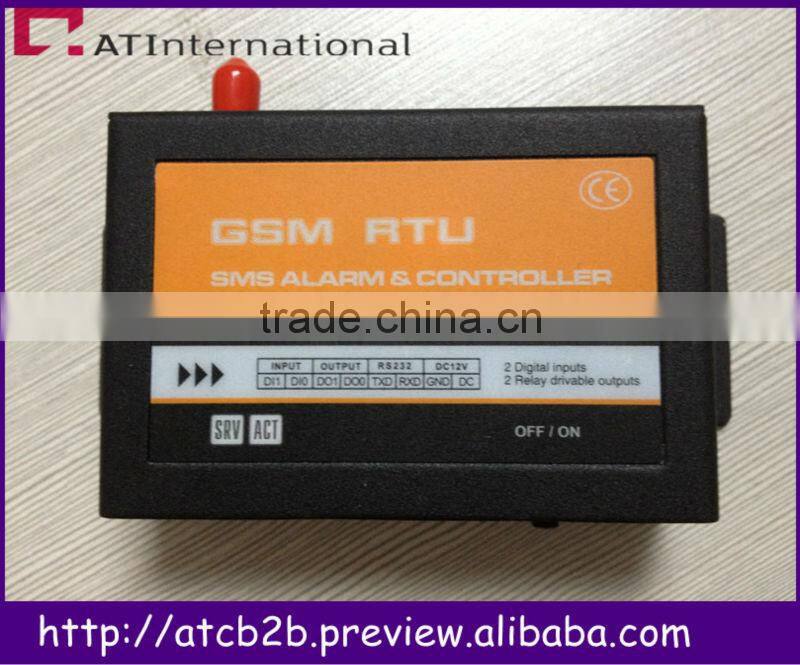

CWT5010 GSM RTU is designed as a cost effective remote control system alert device.
It monitors up to 4 dry contacts and 4 drivable relay outputs. User-defined SMS is sent to pre-configure mobile phone numbers when a pre-defined alarm condition happens. These pre-configured mobile phone numbers can belong to technicians or engineers who are responsible in handling corresponding alarms. With the aid of this GSM RTU, the alarm condition brings attention to in-charge personnel immediately. Besides it allows those mobile phone users to trigger any relay output by using SMS. The output can be connected with alarm indication device, such as alarm, and others.
There is a built-in microprocessor chip running on a real-time operating system. It gives immediate response to any change in both inputs and outputs condition. A GSM modem is embedded in the GSM RTU, user has to subscribe a SIM card for the GSM RTU. The GSM RTU can be installed in any location under GSM coverage.
Advance features
- Configurable for alarm and recover sms
- Automatically report the status of itself on schedule
- Support remote setting via sms commands
- Preset 10 phone numbers(can be distributed authority)
- Remote add/edit/delete phone group
- Automatically update internal clock via sms
- Time stamped in alarm or recover messages
- Support ring call when alarm
- Temperature sensor (optional)
- Internal battery and providing power cut off alarm
- Easy used GUI configure software
- Adopted highly integrated industrial CPU
- Reliable performance with built-in double watchdog
- Can execute preset tasks by re-defined conditions
- Low maintenance, 24×7 operation
4 digital inputs feature
- NO or NC type can be preset
- Configurable for alarm and recover sms
- Configurable for alarm ensure time
- Configurable for alarm delay time
- Configurable for service number’s authority of receive inputs alarm
- Remote query inputs status
4 relay drivable outputs
- Multiple output type can be preset
- Remote On/Off/Pulse outputs
- Configurable for pulse time
- Remote query outputs status
- Outputs can be activated by alarm or call
- Outputs can be activated on schedule
Specifications
Parameter |
|
DC Power supply |
12-24V DC (Standard adapter: DC 12V/1.5A) |
Power consumption |
12V input Max. 150mA/Average 50mA |
Frequency range |
Quad-frequency 900/1800/850/1900HMz |
SIM Card |
Supporting 3V SIM Card |
Antenna |
50 Ω SMA Antenna interface |
Serial |
RS232 |
Temperature range |
-30°C ~ +70 °C |
Humidity range |
Relative humidity 95% |
Digital Input |
4 digital inputs(Dry contact) |
output |
4 drivable relay outputs(open-collector outputs) |
Output drive voltage |
Equal to input DC voltage |
Output drive power |
Drive voltage ≤35V, drive current ≤500mA |
Exterior dimension |
95×63×25mm |
Weight |
256 g |
Product show
