package: mainframe*1 ac to dc adaptor*1 gsm antenna*1 cd (user guider pc configurator)

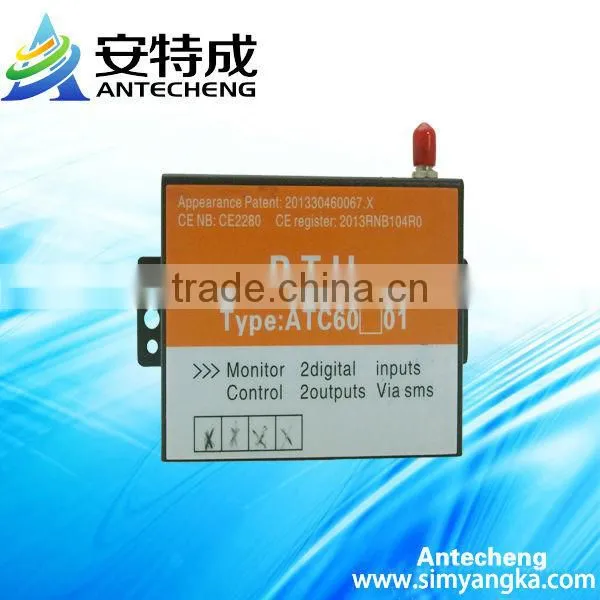

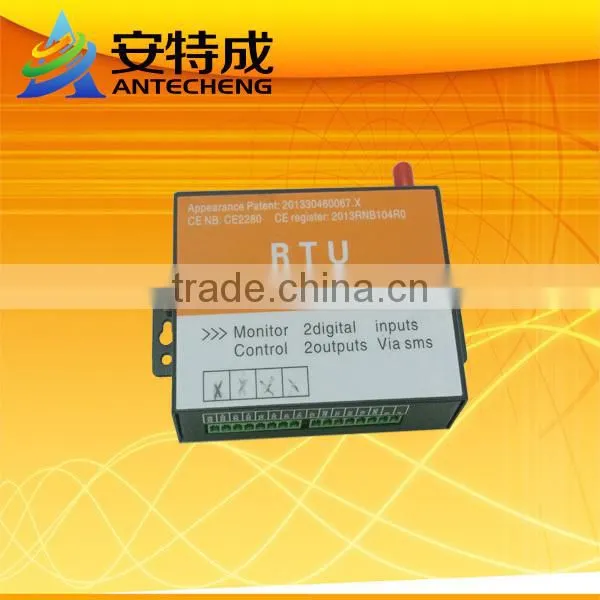

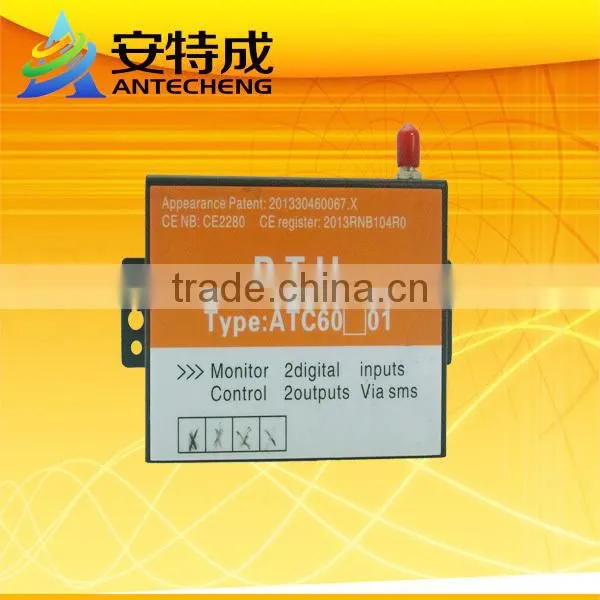

ATC remote control vibrator gsm RTU ntroller

digital thermometer data logger

2 digital inputs
2 relay outputs
2 analog input
gps module (option)
internal battery(option)

Introduction

       The Q26_RTU GSM/GPRS/EDGE Remote Monitoring& Remote Control System is a complete Remote Telemetry unit. It contains a GSM/GPRS/EDGE Modem and control circuitry. It is capable of controlling up to 2 Relay outputs and monitor 2 Digital inputs and 2 Analogue inputs.(Analogue input support: Detect Water leaks, Monitoring Temperatures for out-of-range conditions, Monitor Humidity for Damaging High Humidity Levels and monitor fuel levels).

The Q26_RTUGSM/GPRS/EDGE Remote Monitor &Remote Control System is operated by the sending of SMS and GPRS/EDGE. The GSM/GPRS/EDGE controller can be used as a remote telemetry system; users can directly control the output relays from a simple text message or GPRS. The controller can also be used as a remote monitoring system; the unit can automatically notify the user whenever the any inputs change state and inputs counter.

The Q26_RTU is complete with extend function include DI/DO/AI by UART2, support back up battery and built-in Quad-Band Modem -900/1800/850/1900.

Features

   Monitors up to 2 Digital inputs&2 Analogue inputs

   2 Remote control outputs for switching applications

   Fast and easy installation

   Low set up and running costs

   No field programming required as it can be done by SMS

   Able to work in GMS mode/GPRS mode/EDGE mode

   Programmable low/high alarm points for each analogue input

   Works with 4 - 20mA(default)/1-5V based transducer

   Accept other kind of transducer - temperature /motion transducer etc.

   Reports on set point alarms and other triggers

   Up to 10 alarm time set point

   Support for get GPS location

Interface

Power:  12V (12V-35V)

       Correspond Relay Specification

Communicate:   485/232 (Factory Default: 232)

              485:       (A   B)

              232:       (RX1       TX1        GND)

Digital Input:

              DI1:        (DI1+     DI1-)

              DI2:        (DI2+     DI2-)

Digital Output:

              DO1:      (DO1+    DO1-)

              DO2:      (DO2+    DO2-)

Analog Input:     Transmitter (temperature /water level / humidity/ pressure)

              Type:     Current (4-20mA)

              AI1:        (AI1+      AI1-)

              AI2:        (AI2+      AI2-)

Indicator Light:

              GSM:     Device Register State

              ACT:      Reserve for customized

              NET:      Reserve for customized

              GPS:      Reserve for customized

SIM Card:     3V/1V8

Access Equipment:   Serial Port Equipment (Camera /PLC….)

              Reserve for customized

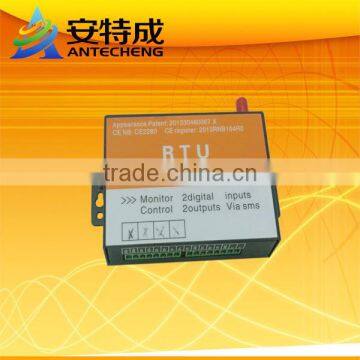

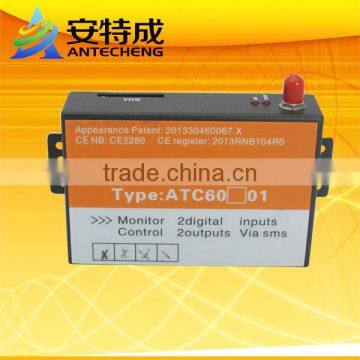

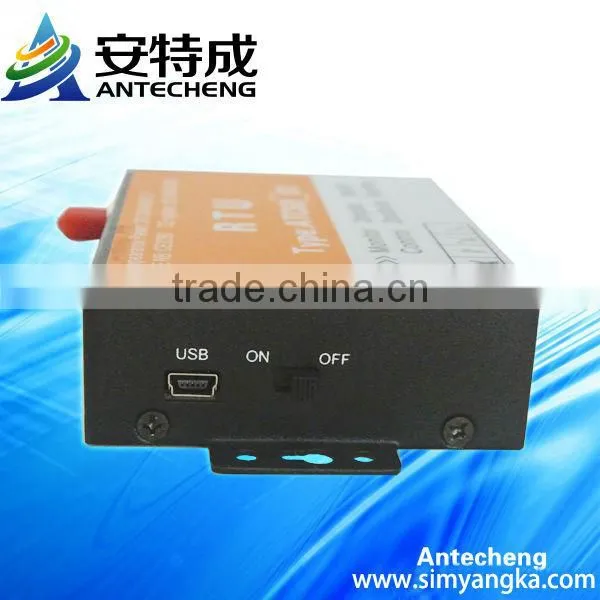

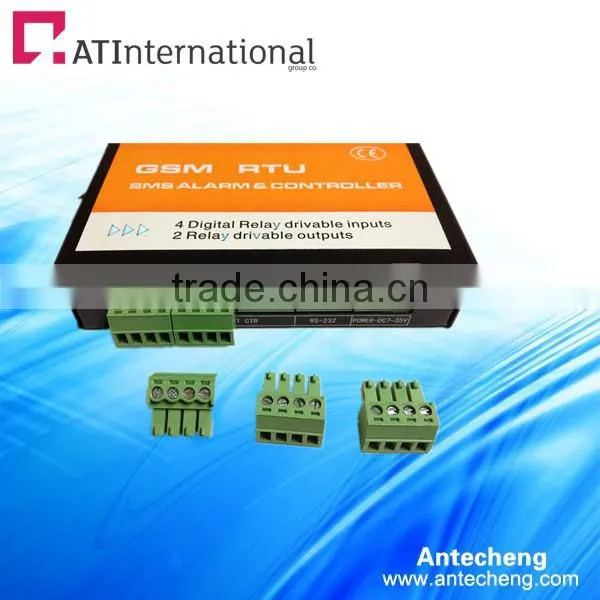

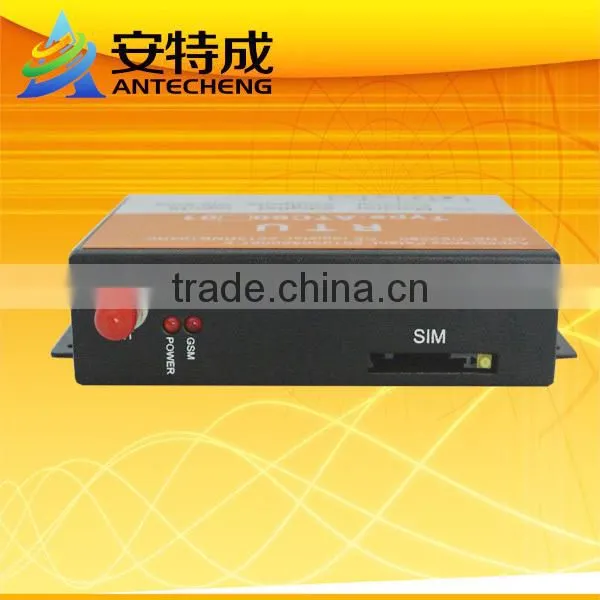

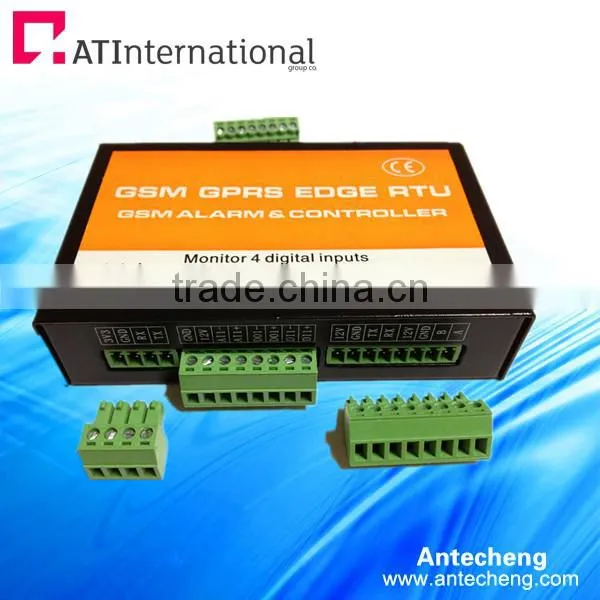

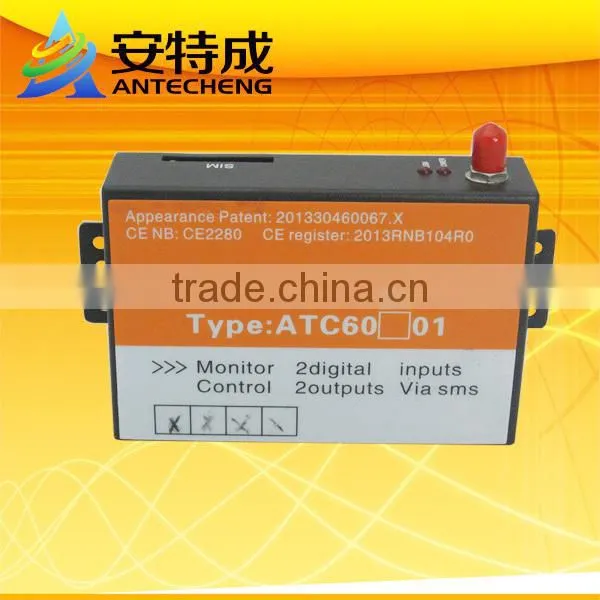

Pictures :

Applications:
