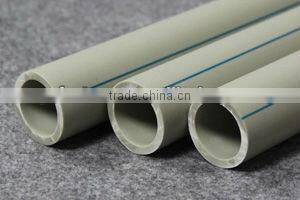

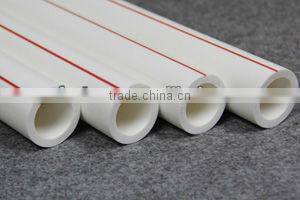

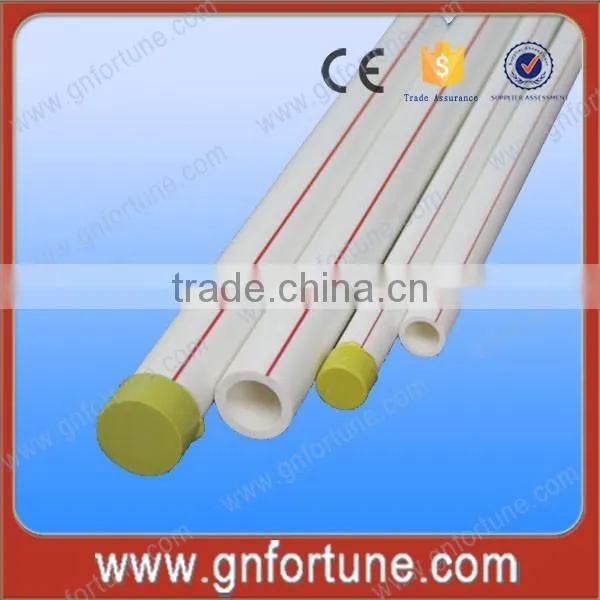

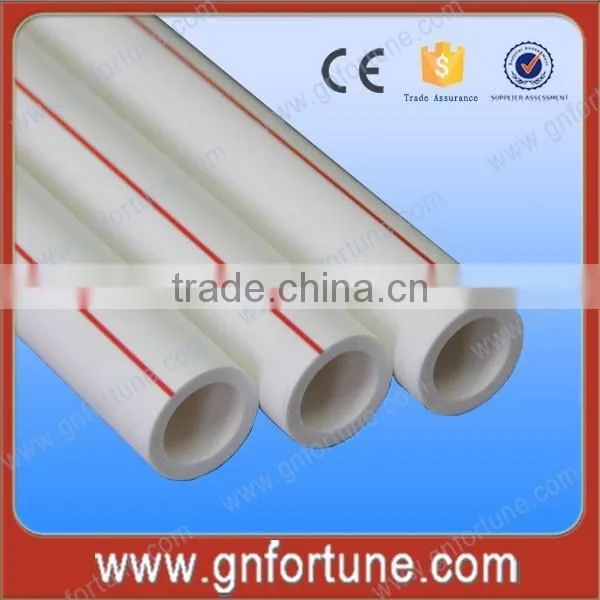

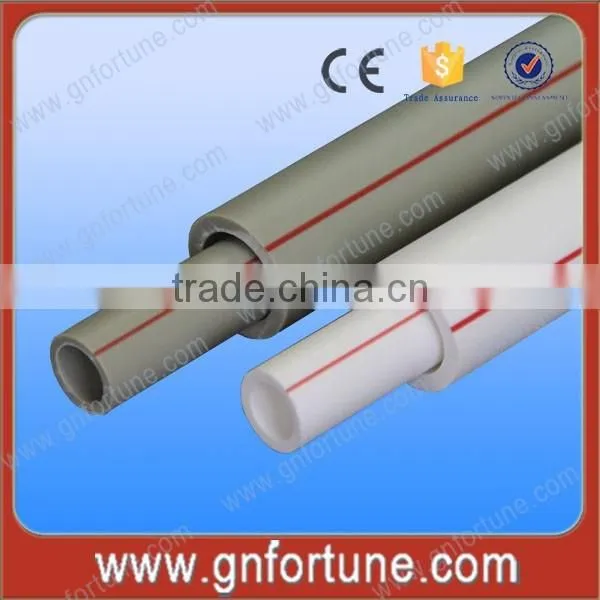

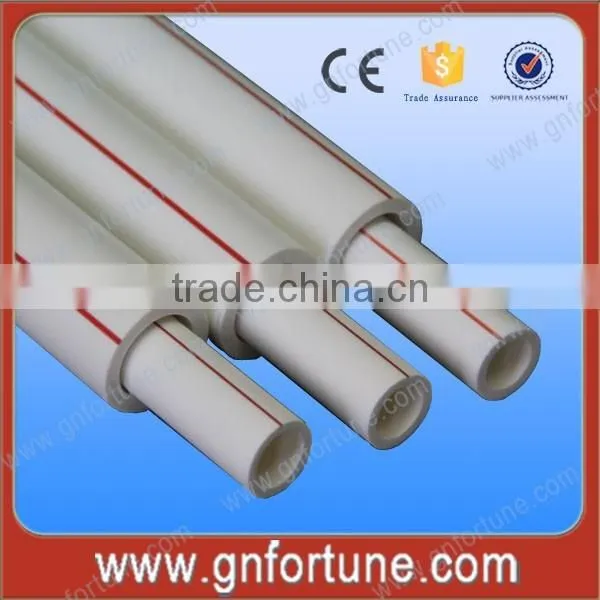

Good Quality PVC PPR Water Pipe Prices
1. Introduction of PPR Water Pipe
The quality of our PPR Pipes is entirely up to the standard of DIN8077/8078 of Germany. Its raw materials, a propylene random copolymer, are imported from Korea. Featured by excellent cleanness, cost effectiveness, applicability and advantage in safety, PPR Pipes is considered as the optimal pipe material for cold and hot water system, water purifying engineering, underground heating system for wooden floor, chemical pipe works and so on.
2. Dimension of PPR Water Pipe
|
PPR Water Pipe for Cold Water
|
PPR Water Pipe for Hot Water
| ||
Outer Diameter dn(mm) | PN 1.25MPa | PN 1.6MPa | PN 2.0MPa | PN 2.5MPa |
Wall Thickness en (mm) | Wall Thickness en(mm) | Wall Thickness en(mm) | Wall Thickness en(mm) | |
20 | 2.0 | 2.3 | 2.8 | 3.4 |
25 | 2.3 | 2.8 | 3.5 | 4.2 |
32 | 2.9 | 3.6 | 4.4 | 5.4 |
40 | 3.7 | 4.5 | 5.5 | 6.7 |
50 | 4.6 | 5.6 | 6.9 | 8.3 |
63 | 5.8 | 7.1 | 8.6 | 10.5 |
75 | 6.8 | 8.4 | 10.3 | 12.5 |
90 | 8.2 | 10.1 | 12.3 | 15.0 |
110 | 10.0 | 12.3 | 15.1 | 18.3 |
160 | 14.6 | 17.9 | 21.9 | 26.0 |
3. Advantages of PPR Water Pipe
1) PP-R pipe and fitting system both for cold and hot water
2) High temperature, high pressure resistance and good resistance to chemical corrosion
3) Long service life, healthy , non-toxic , sanitary and recyclable
4) Hot welding connection adopted, making pipes and fittings into a whole, leakage effectively prevented
5) Low noise, reduced by 40% compared to common pipes
6) Light weight , easy to handle and transport
4. Applications of PPR Water Pipe
1) Cold and hot water supply systems for civil and industrial constructions, e.g.
in residential buildings, hospitals, hotels, school and office buildings, ship building.
2) Drinking water systems and food industry pipe works
3) Central air conditioning system
4) Irrigating system for gardens and green houses
5) Public and sport facilities such as swimming pools and stadiums
6) For rainwater utilization systems

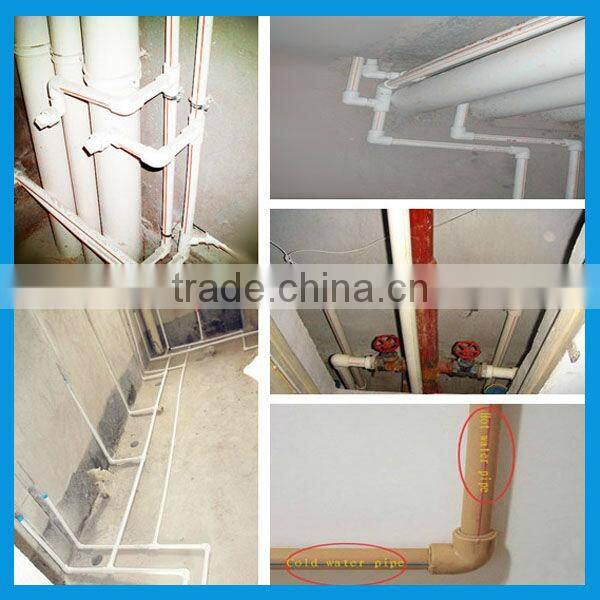

5. Installation of PPR Water Pipe for Hot and Cold Water
6. Other PPR Water Pipe Fittings
All accessories like ppr socket, ppr elbow, ppr equal tee, ppr reducer etc. are available.
| | | |
| | | |
| | | |
For more informaton of PPR Water Pipe,feel free to contact us.
