Hot and Cold Water PPR Piping
1. Introduction of PPR Piping
The quality of our PPR Piping is entirely up to the standard of DIN8077/8078 of Germany. Its raw materials, a propylene random copolymer, are imported from Korea. Featured by excellent cleanness, cost effectiveness, applicability and advantage in safety, PPR Piping is considered as the optimal pipe material for cold and hot water system, water purifying engineering, underground heating system for wooden floor, chemical pipe works and so on.
2. Dimension of PPR Piping
|
PPR Pipe for Cold Water
|
PPR Pipe for Hot Water
| ||
Outer Diameter dn(mm) | PN 1.25MPa | PN 1.6MPa | PN 2.0MPa | PN 2.5MPa |
Wall Thickness en (mm) | Wall Thickness en(mm) | Wall Thickness en(mm) | Wall Thickness en(mm) | |
20 | 2.0 | 2.3 | 2.8 | 3.4 |
25 | 2.3 | 2.8 | 3.5 | 4.2 |
32 | 2.9 | 3.6 | 4.4 | 5.4 |
40 | 3.7 | 4.5 | 5.5 | 6.7 |
50 | 4.6 | 5.6 | 6.9 | 8.3 |
63 | 5.8 | 7.1 | 8.6 | 10.5 |
75 | 6.8 | 8.4 | 10.3 | 12.5 |
90 | 8.2 | 10.1 | 12.3 | 15.0 |
110 | 10.0 | 12.3 | 15.1 | 18.3 |
160 | 14.6 | 17.9 | 21.9 | 26.0 |
3. Advantages of PPR Piping
1) PP-R pipe and fitting system both for cold and hot water
2) High temperature, high pressure resistance and good resistance to chemical corrosion
3) Long service life, healthy , non-toxic , sanitary and recyclable
4) Hot welding connection adopted, making pipes and fittings into a whole, leakage effectively prevented
5) Low noise, reduced by 40% compared to common pipes
6) Light weight , easy to handle and transport
4. Applications of PPR Piping
1) Cold and hot water supply systems for civil and industrial constructions, e.g.
in residential buildings, hospitals, hotels, school and office buildings, ship building.
2) Drinking water systems and food industry pipe works
3) Central air conditioning system
4) Irrigating system for gardens and green houses
5) Public and sport facilities such as swimming pools and stadiums
6) For rainwater utilization systems
5. Installation of PPR Pipe for Hot and Cold Water

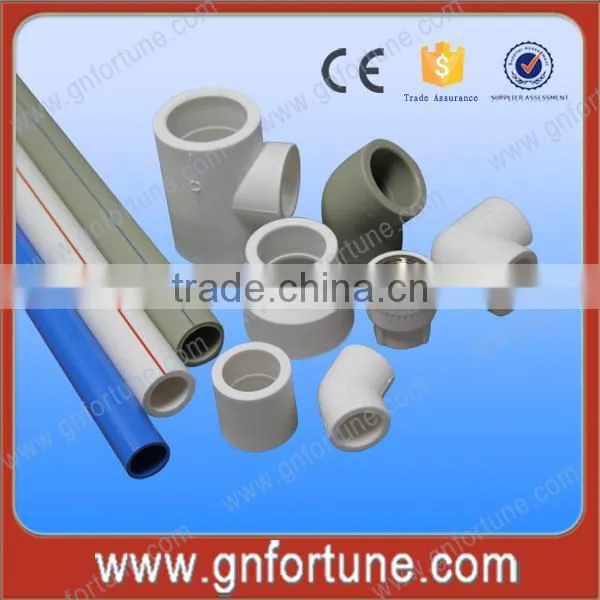

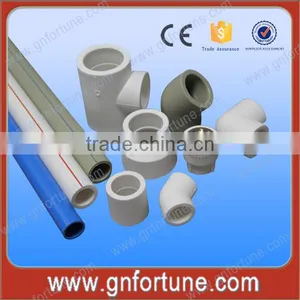

6. Other PPR Pipe Fittings
All accessories like ppr socket, ppr elbow, ppr equal tee, ppr reducer etc. are available.

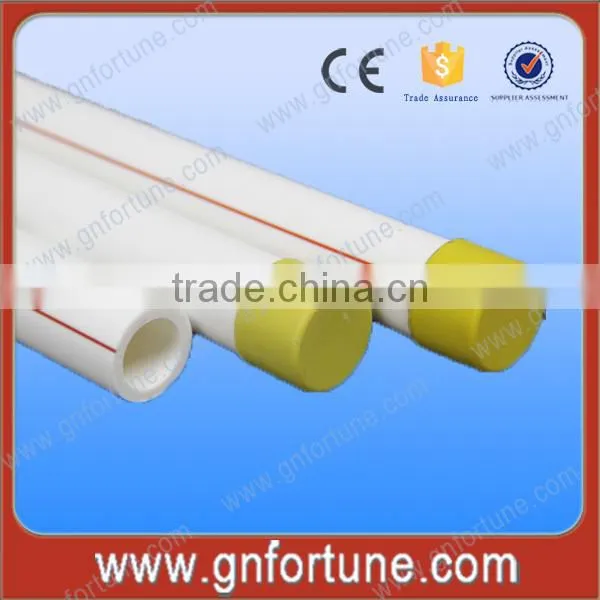

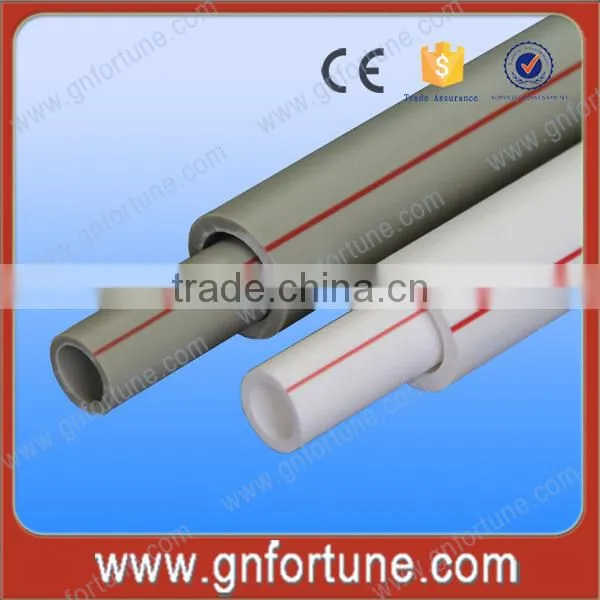

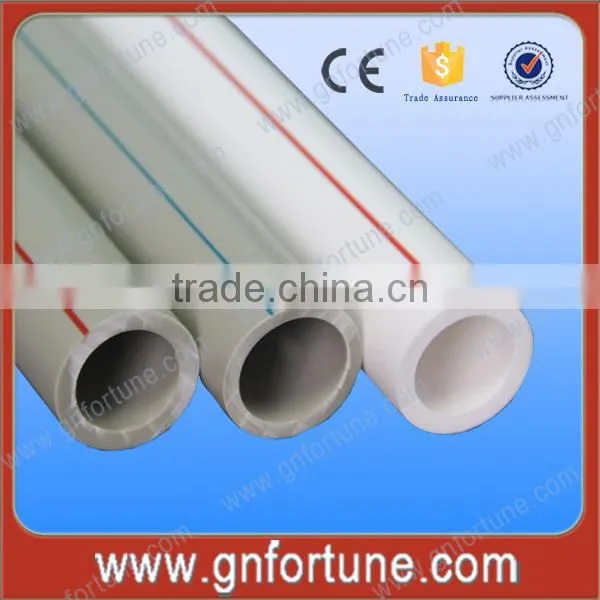

Hot and Cold Water PPR Piping
| | | |
| | | |
| | | |
Welcome to contact us if you need any more information of our PPR Piping and fittings,your inquiry will be replied within 24 hours.
