Specifications
38x17mm Wall Cable Trunking System Price1.Adhesived or not
2.Fire resistant
3.Endurable
4.Full size

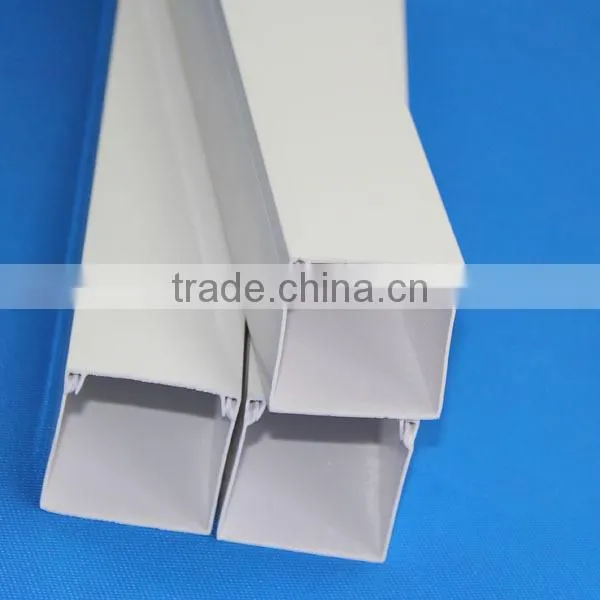

38x17mm Wall Cable Trunking System Price
1.Product Introductions:
1).Material: Making of PVC Plastic
2).Standard: IEC 61084-2-1
3).Apperance: Regular square, smooth, light, no impurity, beautiful Decent packaging
4).Color: Color pure, no have discoloration and aging
5).Smell: no scent,environmental
6).Use: For internal wiring,protecting the wire under 1200v
7).Effect: After using,wiring easily and trimly,installing reliably,and is convenient for maintaining and searching and exchanging
8).Lifetime: Anti-aging,normal use life can be up to 50 years
2.Product Features of 38x17mm Wall Cable Trunking System Price :
1).Thickness: With appropriate temperature and accurate molds machinery technology, the thickness,size,shape can be precisely controlled
2). Toughness: If you bend ,can not be easier to break
3). Hardness: Under pressure ability, high impact resistance
4).Fire-resistance: Flame-retardant pvc resin,highly combustion-retardant,quickly self-extinguishing
5).Corrosion resistance :moisture, acid and alkali resistance,, assuring a lower maintenance cost and a longer performance life
6). Heat resistance: high-temperature resistance
7). Non-conductive: excellent electricity insulation, which resist 25kv voltage , assuring a safe system
8).Installation: easy to open and close ,convenient push-pull,installed with solvent cementing and threading joinin
3.Size Details:
| plastic trunking Specification | ||||
| Picture | Size(mm×mm) | Thickness(mm) | Packing(pcs/bud) | |
|
plastic trunking
|
10X10 | 0.60 | 50 | |
| 15X10 | 0.55/0.80 | 50 | ||
| 16X16 | 0.58/0.63/0.80/1.00 | 40 | ||
| 18X9 | 0.40 | 50 | ||
| 20X10 | 0.45/0.55/0.70 | 50 | ||
| 22X12 | 0.50/0.60/0.80 | 25 | ||
| 23X13 | 0.65/0.75 | 25 | ||
| 24X14 | 0.65/0.75 | 25 | ||
| 25X16 | 0.63/0.72/1.00 | 25 | ||
| 25X25 | 0.75 | 20 | ||
|
plastic trunking
|
30X15 | 0.60 | 20 | |
| 39X19 | 0.75/0.90 | 15 | ||
| 40X16 | 0.60/0.80/1.00 | 20 | ||
| 40X25 | 0.68/0.76/1.00/1.20 | 10 | ||
| 40X30 | 1.00/1.20 | 10 | ||
| 40X40 | 1.38 | 10 | ||
| 50X25 | 1.00 | 10 | ||
| 50X50 | 1.10/1.25 | 4 | ||
| 59X22 | 0.85/1.10 | 10 | ||
| 60X30 | 1.10 | 6 | ||
| 60X40 | 1.20/1.40 | 6 | ||
| 60X60 | 1.68 | 4 | ||
| 75X50 | 1.25 | 2 | ||
|
Compartment plastic trunking
|
75X75 | 1.30/1.50 | 2 | |
| 80X40 | 1.35 | 6 | ||
| 80X50 | 1.40/1.70 | 4 | ||
| 99X27 | 0.90/1.20 | 5 | ||
| 100X40 | 1.35/1.50 | 2 | ||
| 100X50 | 1.35/1.70 | 2 | ||
| 100X60 | 1.65/1.90 | 2 | ||
| 100X75 | 1.65/2.00 | 2 | ||
| 100X100 | 1.60/2.00 | 1 | ||
| 150X100 | 2.00 | 1 |
||
4. Adhesived ARC Floor PVC Plastic Trunking
| Picture | Size(mmxmm) | Thickness(mm) | Packing(pcs/bud) |
|
30x10 | 1.75mm | 20 |
| 50x15 | 1.60mm | 10 | |
| 70x20 | 2.00mm | 5 |
5. Factory Brief Introduction
- Since the past few years development, our factroy has been the professional manufacturer of PVC conduct, pipes, PVC-U drainage pipelines and so on.
- we have 50-plus assembly lines, including 80 injection machines, which greatly enhance the capacity of production.
- All of our products are approved by Guangdong Quality Supervision &Testing Institute before going to the market.
- Our factory obtained the ISO9001 certification.
|
|
|
6.Our certifications:
|
|
|
|
|
|
|
|
Welcome to contact us for more information of 38x17mm Wall Cable Trunking System Price ,your inquiry will be replied within 24 hours.
