Help CenterCompetitive Building Material 25*16 PVC Panel Trunking
Related Products
-
Plastic Floor ARC Self Adhesive TrunkingUS$ 1.156 - 1.495MOQ: 3000 Meters -
PVC Conduit Trunking Wiring SystemsUS$ 1.156 - 1.495MOQ: 3000 Meters
-
Telephone Cable ARC Floor TrunkingUS$ 1.156 - 1.495MOQ: 3000 Meters
-
150X100mm Underground PVC Trunking SizeUS$ 0.165 - 2.746MOQ: 3 Meters
-
PVC Floor Protection Cable Trunking CoverUS$ 1.156 - 1.495MOQ: 3000 Meters
Specifications
PVC Panel Trunking1.Good impact strength
2.Combustion-resistant
3.CE,BV,SGS
4. full size of PVC Panel Trunking

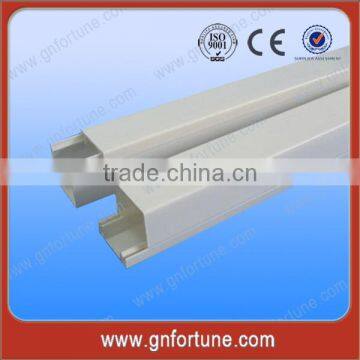

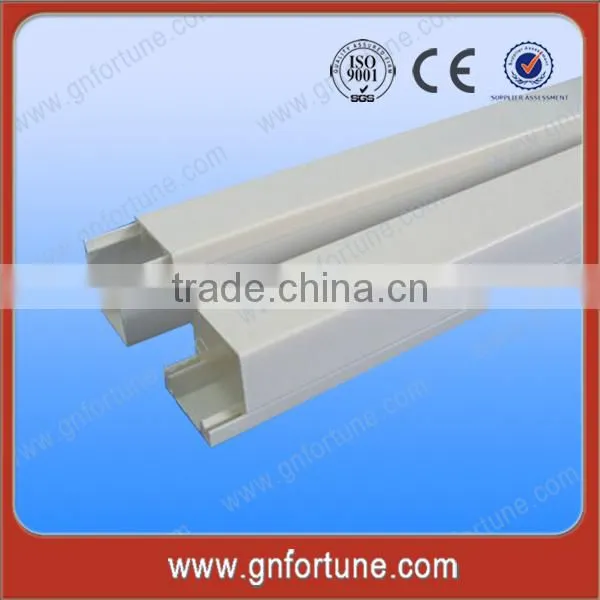

Competitive Building material 25*16 PVC Panel Trunking
1. PVC Panel Trunking Description
| Impact strength | Resistant to compression and impact, suitable to be buried in concrete |
| Non-conductive | Good insulation, able to resist 25KV voltage, assuring a safe system |
| Fire resistance | with self-extinguishing function |
| Corrosion Resistance | Resistant to acids, bases and salts, assuring a lower maintenance cost and a longer performance life |
| Smooth surface | Small friction and high flow capacity to ensure the cables go through smoothly |
| Easy Installation | Light weight, easy to cut, transport, bent and handle; easy connecting by solvent cement and threading joining without leakage |
2. Application of PVC Panel Trunking
In the electrical wiring of buildings, a PVC Panel Trunking system is used to support insulated electric cables used
for power distribution and communication. PVC Panel Trunkingsystems are generally used in commercial or industrial
applications. PVC Electrical Trunking is typically for protection and routing of electrical wiring.
3. Features of PVC Panel Trunking
Electric Insulation
- Combustion-proof, good tenacity, chemical resistant.
- Test Standard: EN 61357:2007
- Certificate: CE, SGS
|
Size mm |
Thickness mm |
Size mm |
Thickness mm |
Size mm |
Thickness mm |
Size mm |
Thickness mm |
|
| 15X10 | 0.55 | 40X25 | 0.68 | 25X16 | 0.63 | 80X50 | 1.40 | ||
| 0.80 | 0.76 | 0.72 | 1.70 | ||||||
| 18X9 | 0.40 | 1.00 | 1.00 | 99X27 | 0.90 | ||||
| 20X10 | 0.45 | 1.20 | 25X25 | 0.75 | 1.20 | ||||
| 0.55 | 40X30 | 1.00 | 100X40 | 1.35 | |||||
| 0.70 | 1.20 | 30X15 | 0.76 | 1.50 | |||||
|
22X12 | 0.50 | 59X22 | 1.10 | 0.60 | 100X50 | 1.35 | ||
| 0.60 | 0.85 | 39X19 | 0.90 | 1.70 | |||||
| 0.80 | 60X30 | 1.10 | 0.75 | 100X60 | 1.65 | ||||
| 23X13 | 0.65 | 60X40 | 1.20 | 40X16 | 0.60 | 1.90 | |||
| 0.75 | 1.40 | 0.80 | 100X75 | 1.65 | |||||
| 24X14 | 0.75 | 75X50 | 1.25 | 1.00 | 2.00 | ||||
| 0.65 | 80X40 | 1.35 | 50X25 | 1.00 | 150X100 | 2/3 | |||
b. Square PVC Panel Trunking
|
Square PVC Trunking |
Size mm |
Thickness mm |
Size mm |
Thickness mm |
|
| 10X10 | 0.60 | 50X50 | 1.10 | ||
| 16X16 | 0.58 | 1.25 | |||
| 0.63 | 60X60 | 1.68 | |||
| 0.80 | 75X75 | 1.50 | |||
| 1.00 | 1.30 | ||||
| 40X40 | 1.38 | 100X100 | 1.60 | ||
| 2.00 | |||||
c. Arc Floor PVC Panel Trunking
|
Size mm |
Thickness mm |
Size mm |
Length m |
Thickness mm |
|
| 25X8 | 1.00 | 100X50 | 2.9m with 2 grids board | 3 grids | ||
| 35X10 | 1.40 | 1.35mm | ||||
| 48X14 | 1.80 | 100X50 | 2.9m with 3 grids board | 4grids | ||
| 70X18 | 2.00 | 1.35mm | ||||
| 90*20 | 2.20 | |||||
5. Advantages of PVC Panel Trunking
1) Machinery: More than 60 advanced Extrusion machines and 30 Injection machines with max 500T.
2) Experience: Over 30 years experience in manufacturing and selling PVC Panel Trunkings.
3)Quality Assurance: 24-hour Rigorous QC Team which is in line with ISO 9001 Certification;
4)International Projects: Supply building and irrigation Projects in Asia, Africa, Middle East, Russia etc.
6. PVC Panel Trunking Factory
7. Certificates Of PVC Panel Trunking
