Specifications
Which are widely used in water supply and drainage of agriculture land and building,and cable laying.PVC Multifunctional Pipe Production Line
Which are widely used in water supply and drainage of agriculture land and building,and cable laying.
Features and application

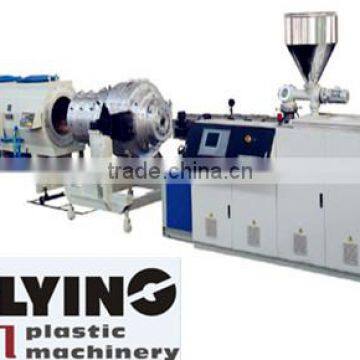

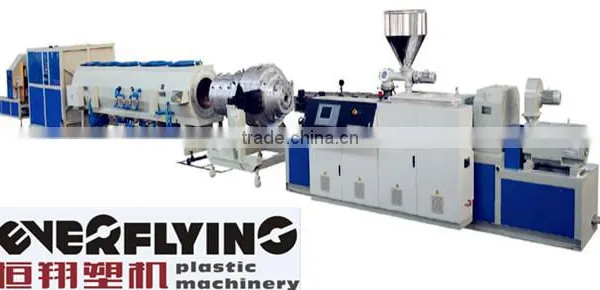

This production line is mainly used produce all kinds of PVC pipes, which aer widely used in water supply and drainsge of agriculture land and building, and cable laying. This production line is composed of conical(parallel)twin-screw extruder, and vaccum sizing device, traction machine,cutting machine and roll-over stand. The extruder and traction machine adopts frequency control, and the traction machine adopts two, three, four, six or dight claws traction modes. This production line is equipped with cutter(saw web or planetary), and has reliable performance and high efficiency.
| Diameter range | Extruder | Main motor | Capacity | Max.speed |
| 16-50mm | 51/105 | 18.5kw | 60-100kg | 15m/min |
| 63-160mm | 65/132 | 37kw | 150-200kg | 6m/min |
| 160-250mm | 80/156 | 55kw | 350-400kg | 4m/min |
| 200-315mm | 80/156 | 55kw | 350-400kg | 3m/min |
| 315-630mm | 92/188 | 110kw | 700-800kg | 1m/min |
