Specifications
1. Flat emitter2.automatic transportation device
3. vaccum sizing device
4. speed: 60-100m/min
5. thickness:0.6 mm

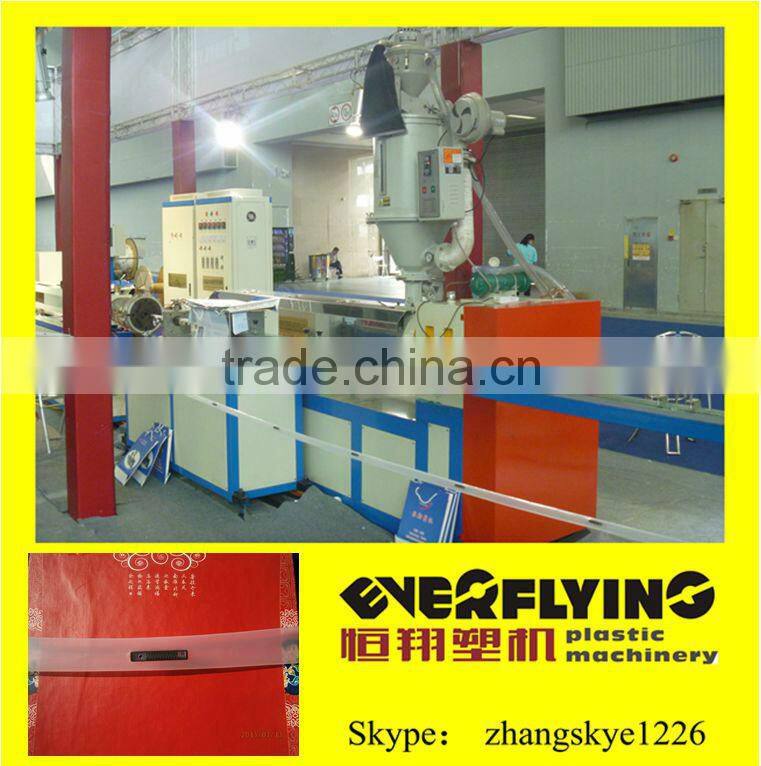

Inlaid Flat Emitter Drip Irrigation Tape Machine
Device structure:
- Emitter conveying automatic screening machine
- Emitter infrared sensor automatic conveyor
- SJ-65 extruder
- Automatic insert mold
- Vacuum sizing machine
- Crawler haul-off machine
- Synchronous motor automatic punching suction cutting machine
- Double position center coiling machine
Characteristics:
- The production is stable and reliable. The emitter transmits even. The punching position is accurate. The chip can be removed easily.
- It adopts PLC control, which is operated conveniently.
- According to the production requirement, it can produce products with different specifications after changing the mold, conveying and punching parts.
- Electrical components adopt international famous brand. The servo system adopts imported components.
- Matched with meters alarming device.
- It also can be used to produce common dripping pipes.
Technical parameters:
Dia. of the drip irrigation pipe | Φ12, Φ16, Φ20 |
Thickness of the drip irrigation pipe | 0.2-0.6mm |
Screw dia. | Φ65mm |
L/D | 30:1 |
Motor power of the extruder | 37 KW |
Speed of the production line | 50-100m/min |
Conveying distance between emitters | 200-2,000mm |
Conveying speed of emitters | 200/min |
Punching speed | 50-100/min |
Total power of the machine set | 42 kw |
Display:

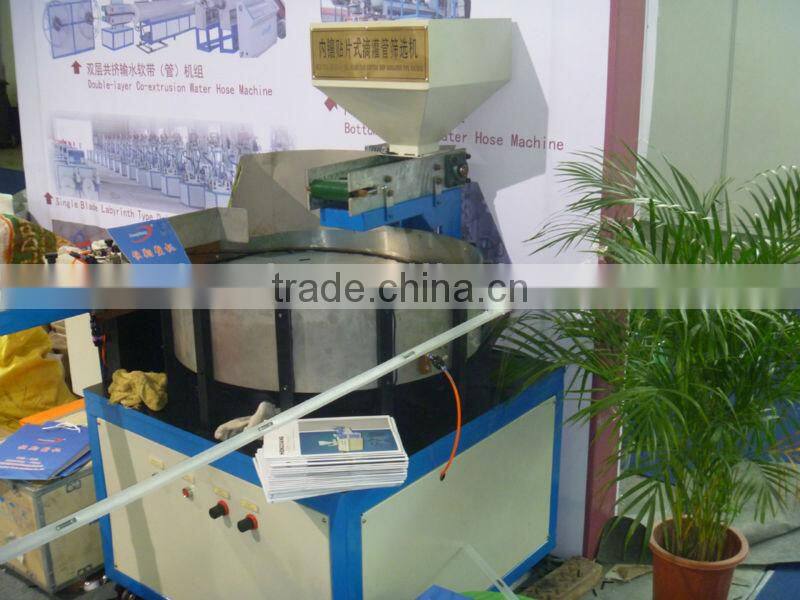

Emitter Sieving Device

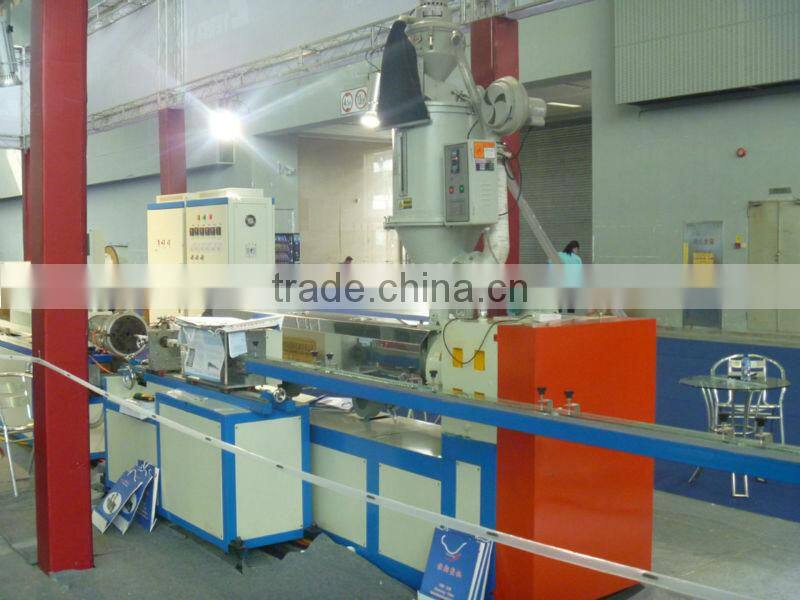

Extruder

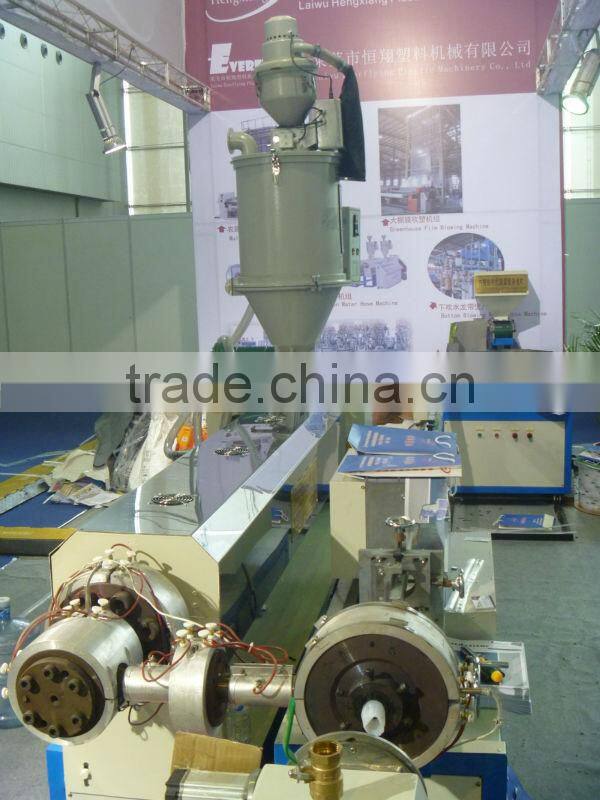

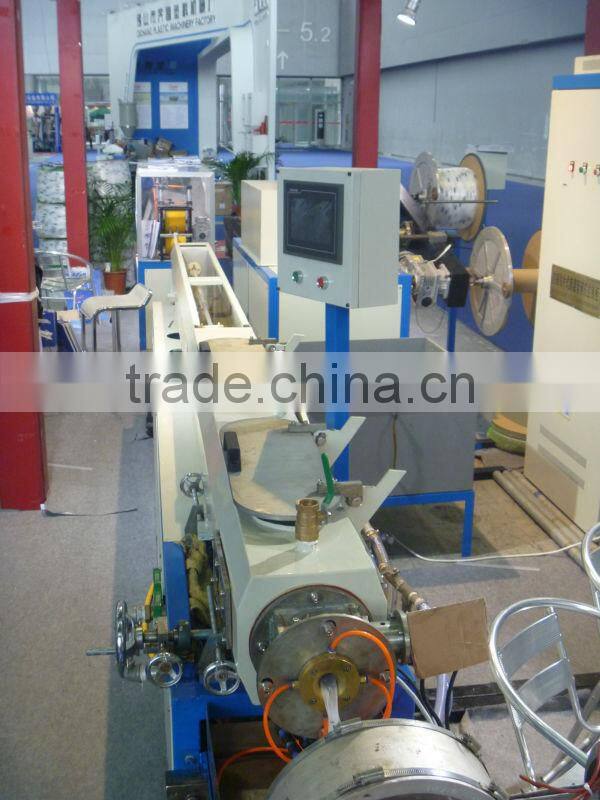

Extruder and Mould
Vaccum Sizing and Cooling Tank

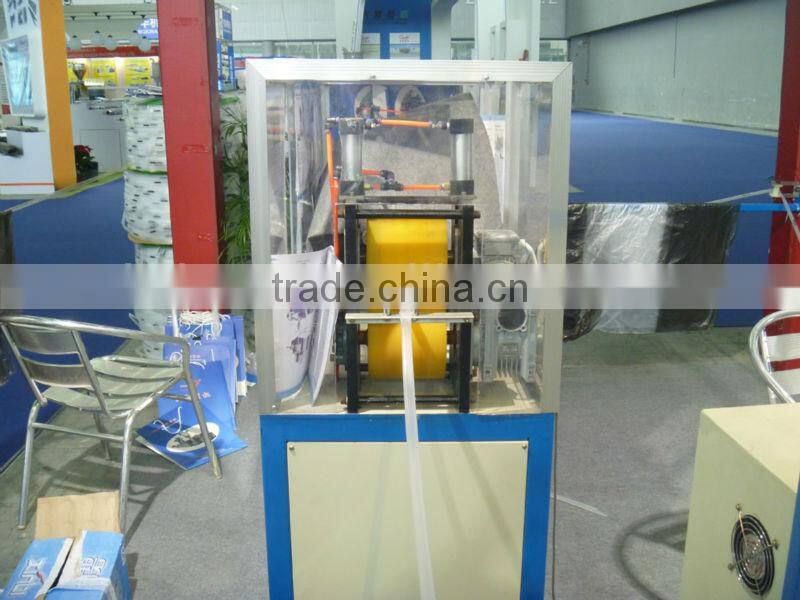

Punching and Haul-off Device

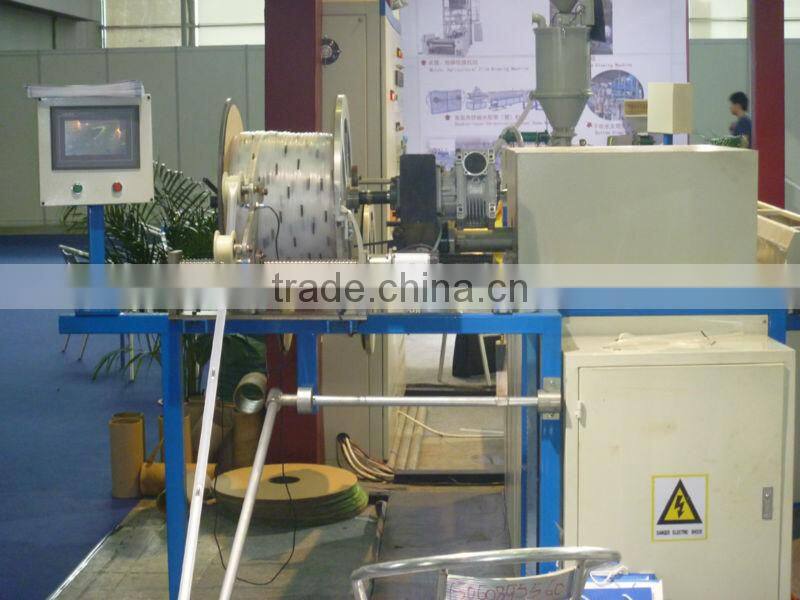

Winder

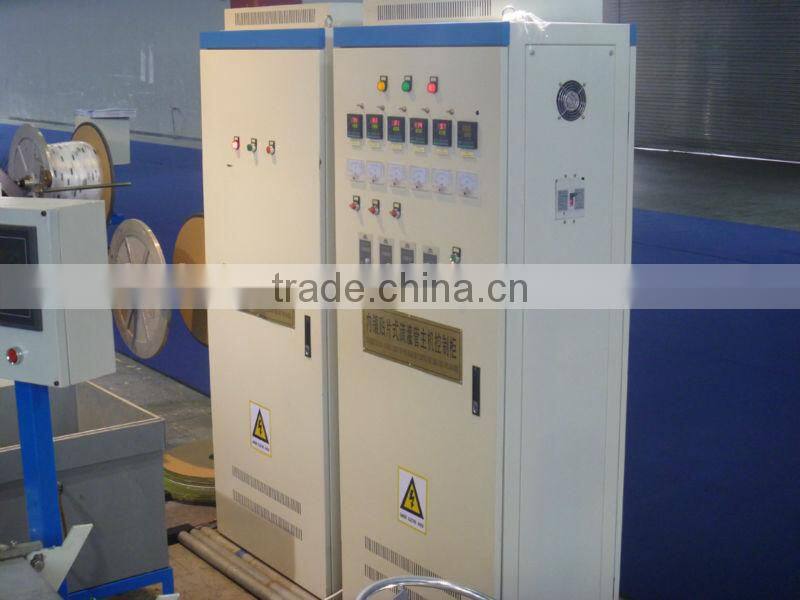

Electrical Control Cabinet

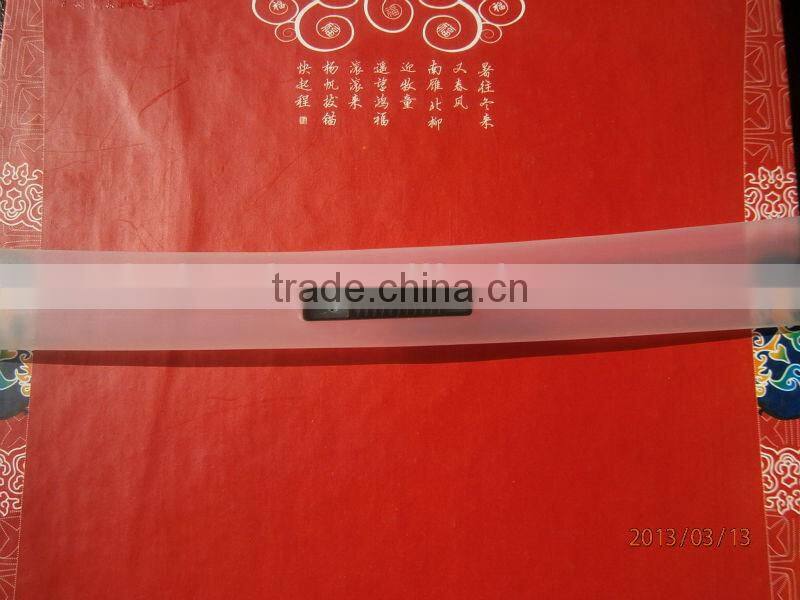

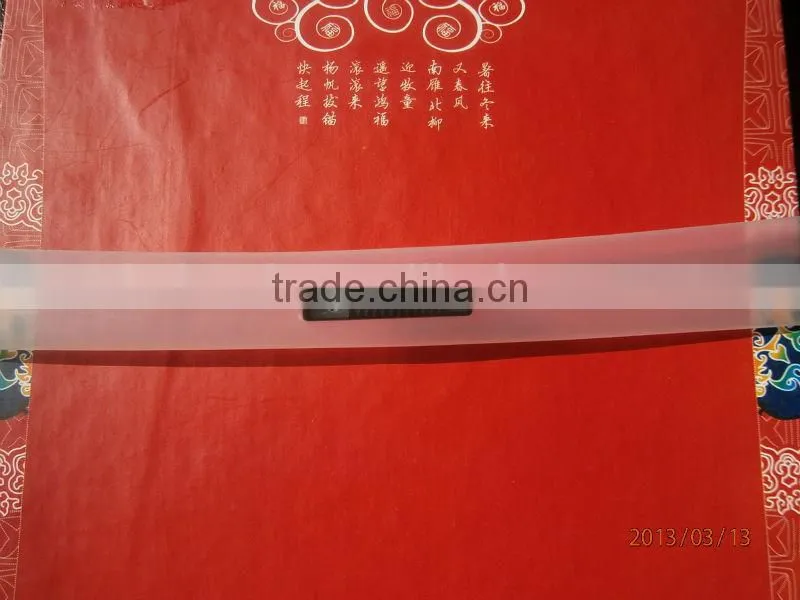

Inlaid Flat Emitter Drip Irrigation Tape

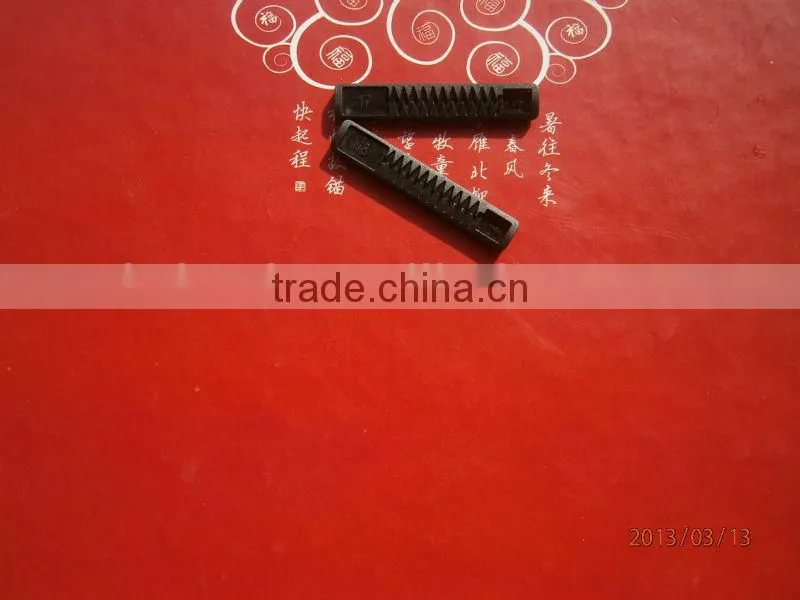

Flat Emitter
Company Image:

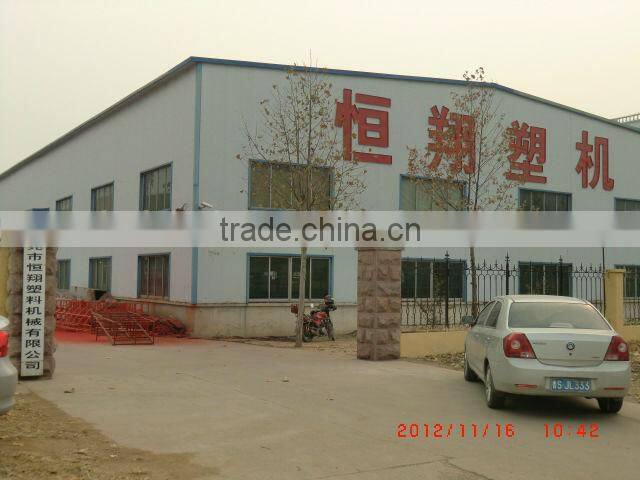

Workshop of Laiwu Everflying Machinery Company

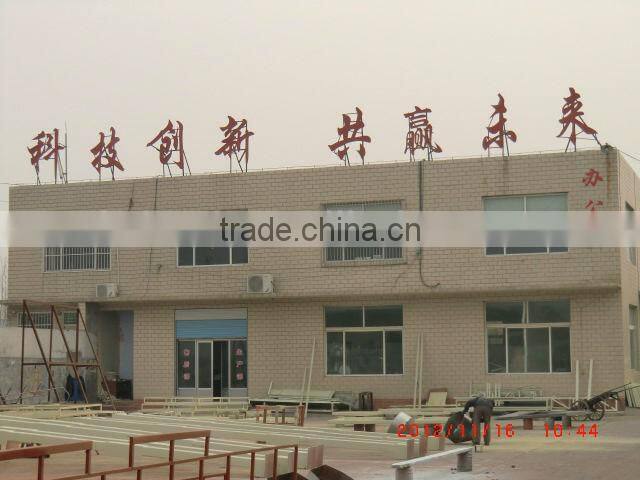

Working Office
Qualification:
Guarantee:
Machines supplied by our company shall be guaranteed for 12 months.
We will dispatch engineers to customer's factory for installation and adjustment, and train staffs about how to operation the machine, and how to solve problems when some problems happen.
We warmly welcome you to visit our company.
