Specifications
Monolayer plastic wide film blowing machine unit is mainly used for producing products of LDPE,LLDPE,EVA,LDPE/LLDPE Blend.
»Features and application
Monolayer plastic wide film blowing machine unit is mainly used for producing of LDPE,LLDPE,EVA,LDPE/LLDPE Blend.Its main structural characteristics are as follows:
1. The extruder adopts courgated screw with mixing head and foece transporting barrel ,and is configured with DC motor (or frequency control ).
2. The cooling system adopts air blower with low air pressure, and large air volume.
3. The haul-off system is stable and reliable.
4. It is supported by split device.
5. The inner cooling device can be matched by the requirement of users ( ordered separately)

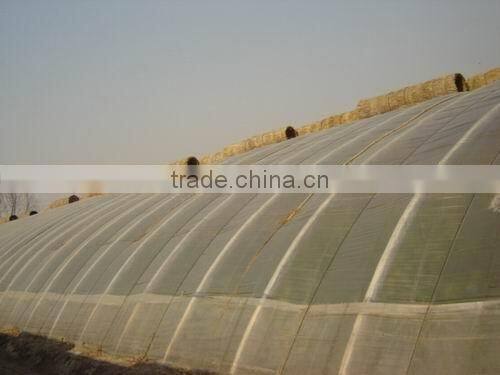

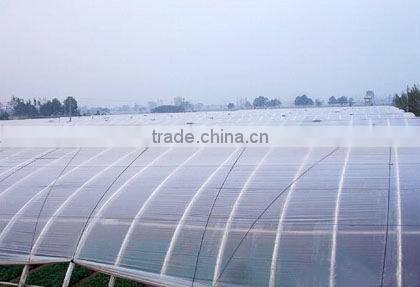

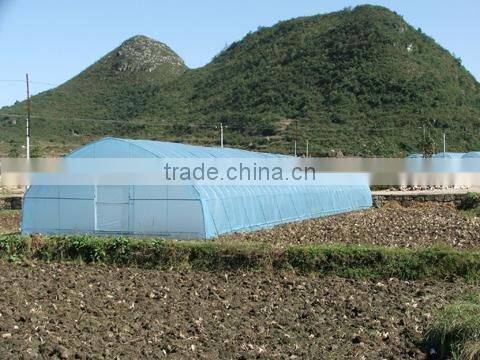

Multilayer co-extruding agricultural film ,geomembrane blowing machine unit is developed and designed on the basis of absorbing western advanced key technology.It is applicable for processing LLDPE,LDPE,EVA,mPE,HDPE materials.The structure is reasonable and the property is stable.It possesses properties of good plasticizing ,high output, low energy consumption, and clear layers splitting.It is ideal equipment for producing greenhouse film and geomembrane with multifunction of high strengh , ageing resistance,no water drop,transmitting and heat presevation.
»monolayer technical parameters
| Model | LD3200-I | LD3200-II | LD2800-I | JCM3200-I | JCM4000-I |
| Extruder | SJ-120/25 | SJ-120/30 | SJ-150/25 | SJ-150/180/30 | SJ-200/30 |
| Dia.of screw(mm) | 120 | 120 | 150 | 150/180 | 200 |
| L/D of screw | 25 | 30 | 25 | 30 | 30 |
| Max.extruding capacity(kg/h) | 300 | 350 | 450 | 600/700 | 750 |
| Dia.of neckling die (mm) | 650 | 1000 | 1200 | 1400 | 1600 |
| Outer dia.of air ring (mm) | 1400 | 2500 | 3200 | 3600 | 3600 |
| Haul-off device | Tower type structure | ||||
| Length of height (mm) | 10,000 | 12,700 | 19,000 | 21,000 | 21,000 |
| Length of Haul-off roll (mm) | 3200 | 3200 | 2800 | 3200 | 4000 |
| Haul-off speed(m/min) | 3˜30 | ||||
| Wind-up device | Two position center wind-up machine | ||||
| Roller length (mm) | 3200 | 3200 | 2800 | 3200 | 4000 |
| Wind-up speed(m/min) | 3˜30 | ||||
| Total power of the unit(kw) | 195 | 245 | 310 | 400/490 | 550 |
| Overall dimension(m) | 12×5×11 | 13×5×13 | 14×7×19 | 14×7×21 | 16×8×21 |
» multilayer technical parameters
Model | 3FM2800-I | 3FM3500-I | 3FM5000-IV | 3FM5000-V | 3FM5500-I | 3FM5500-II |
Max. width(mm) | 10,000 | 12,000 | 14,000 | 16,000 | 18,000 | 20,000 |
Thickness (mm) | 0.08~0.12 | |||||
Composed layers | 3 | |||||
Applicable raw material | LDPE, LLDPE, EVA | |||||
Max. output(kg/h) | 600 | 1,000 | 1,500 | 1,800 | 2,000 | 2,300 |
Extruder | 90/30×2 120/25×1 | 120/25×2 150/30×1 | 150/30×3 | 150/30×2 180/30×1 | 180/30×3 | 180/30×3 |
Main driving power(kw) | 90×2+110 | 110×2+200 | 250×3 | 250×2+280 | 280×3 | 315×3 |
Dia of neckling die (mm) | 1,400 | 1,600 | 1,800 | 2,000 | 2,200 | 2,400 |
Outer dia. of air ring (mm) | 3,600 | 3,600 | Double tuyeres | Double tuyeres | Double tuyeres | Double tuyeres |
Haul-off height | 19,000 | 21,000 | 24,000 | 24,000 | 27,000 | 32,000 |
Wind-up speed(m/min) | 3~30 | |||||
Edge folding form | Inserting plate | |||||
Wind-up method | Two position center wind-up machine | |||||
Total power of the unit | 750 | 950 | 1,400 | 1,550 | 1,650 | 1,900 |
Overall dimension(m) | 16×9×20 | 18×12×21 | 19×11×25 | 20×13×25 | 20×15×27 | 22×22×3 |
