Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 10-300KW Multi-Cylinder Marine Diesel Engine With Gearbox

10-300KW Multi-Cylinder Marine Diesel Engine With Gearbox

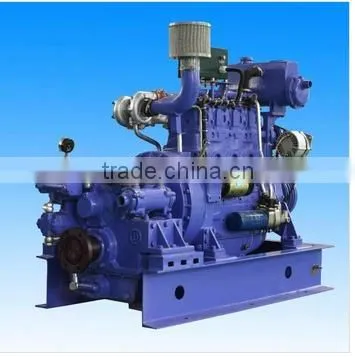

10-300KW Multi-Cylinder Marine Diesel Engine With Gearbox photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Huatian
Speed:
1500-2400rpm
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Huatian
Speed 1500-2400rpm
Frequency 50/60hz
Rated Power 10-300kw
Rated Voltage 400/230V

Specifications

1).10-300KW Multi-Cylinder Marine Diesel Engine
2).sea water exchanger and sea water pump
3).competitive price
4)Good Quality





Engine ModelR4105AZLC
Typewater-cooled,inline,4-stroke,direct injection
Rated Power 70kw
Rated Speed1500rpm-2000rpm
Air intake type turbocharged
cylinder number 4
Bore*Stroke 105*130mm
Piston Speed 6.25m/s
Compression Ratio 16:1
Mechanical Governor Rate ≤5%
Electronical Governor Rate ≤1%
Noise Level(dBA) ≤95
Exhaust Temperature(°C) ≤600
Rated Fuel Consumption(L/h) 19
Displacement(L) 4.5



Diesel engine model R6105ZC
Typewater-cooled,  inline, 4-storkes, swirl combusion chamber
Constant Output (kW/kVA)84KW
Speed (r/min)1800kw
Cylinder No.-Bore*Stroke(mm)6-105*125
Total Displacement of Piston(L)6.49
Pressure Ratio16:01
Air Intake TypeTurbocharged
Fuel Consumption(g/kw/.h)239
Oil Consumption(g/kw.h)1.63
Exhaust Temperature(°C)600
Crankshaft RatatingInverse Hour (Facing the power output end)
Cooling Type Forced Water Cooling
Lubricating TypeCompound type with pressure and splash
Starting Type Electric Start

Packaging & Shipping

  10-300KW Multi-Cylinder Marine Diesel Engine with Gearbox
