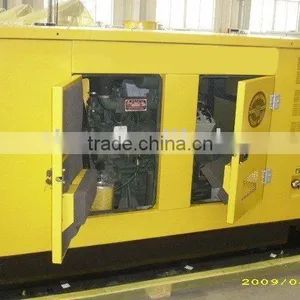

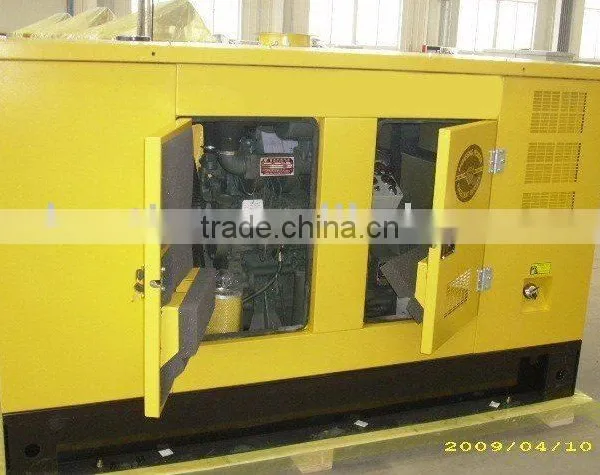

Help CenterSoundproof Diesel Generator Set With ATS(10-200KW)
Related Products
Specifications
1)Silent Diesel generator set2)new design,silent type,good view. low oil.
3)One year/2000 hours warranty
4)3-Phase 4-w
Soundproof Diesel Generator set Good All-weather;
The steel casings, phosphate and multi-layer spraying, has good corrosion function;
Stable structure;
High damping device can ensure smooth operation generator;
Large capacity fuel tank can set run over 8 hours.
The soundproof type diesel generator set has perfect all-weather service property and the outside steel material features preferable corrosion prevention capability. Special noise elimination setting restrains machinery noise to be lowered 60dB.
Soundprood Diesel Generator set Specifications:
1) Output range: from 10kW up to 200kW
2) Engine model: R series,
3) Alternator model: GM/MP/UC
4) Water-cooled
Standard configuration of diesel gensets:
1) Engine model:6113ZLD
2) Alternator model: MP-50
3) Rated output: 50kW (62.5kVA)
4) Closed cooling
5) Fuel consumption: 220g/kWh
6) Prepare output: 56kW (70kVA)
7) Rated voltage: 230 / 400V
8) Rated current: 90.2A
9) Power factor: 0.8 lagging
10) Connection type: 3-phase, 4-wire
11) Rated frequency: 50 / 60Hz
12) Excitation way: brush or brushless
13) Rotating speed: 1,500 / 1,800rpm
14) Overall dimensions: 2,900 x 1,200 x 1,700mm
15) Weight: 1,880kg
16) Accessories: exhaust elbow, bellow, muffler
17) Supply standard collocation:
a) Diesel engine with all accessories, 3 filters and electric systems
b) Alternator
c) Steel structure
d) Fan and water tank cooling system
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air cleaner, fuel cleaner, oil cleaner
h) On-board control panel
i) MCCB air conservation switch
j) 12 / 24V starting accumulator and battery cable
k) Set shock absorber
l) High-efficient silencer
