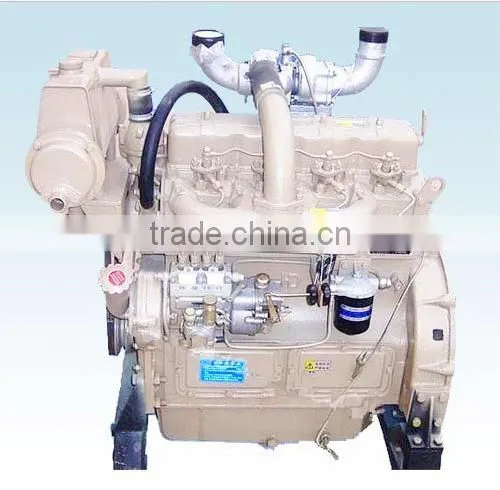

Small Marine Diesel Engine K4100ZC
- 1000 Set / Sets per Month
- Qingdao
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | Huatian | Model Number: | K4100ZC |
Speed: | 1500rpm | Frequency: | 50/60hz | Rated Power: | 41kw/55.8hp |
Rated Voltage: | 400/230V |
Product Description
Specifications
1). Marine Diesel Engine2).Water cooled
3).41kw/51.8hp/1500rpm
4).CE/ISO Certificated
5) Manufacturer
Engine Model | K4100ZC |
Type | water-cooled,inline,4-stroke,direct injection |
Rated Power | 41kw/55.8hp |
Rated Speed | 1500rpm-2000rpm |
Air intake type | turbocharged |
cylinder number | 4 |
Bore*Stroke | 100*115mm |
Piston Speed | 6.25m/s |
Compression Ratio | 17:01 |
Mechanical Governor Rate | ≤5% |
Electronical Governor Rate | ≤1% |
Noise Level(dBA) | ≤95 |
Exhaust Temperature(°C) | ≤600 |
Rated Fuel Consumption(L/h) | 19 |
Displacement(L) | 4.5 |
Diesel engine model | R6105ZC |
Type | water-cooled, inline, 4-storkes, swirl combusion chamber |
Constant Output (kW/kVA) | 84KW |
Speed (r/min) | 1800RPM |
Cylinder No.-Bore*Stroke(mm) | 6-105*125 |
Total Displacement of Piston(L) | 6.49 |
Pressure Ratio | 16:01 |
Air Intake Type | Turbocharged |
Fuel Consumption(g/kw/.h) | ≤239 |
Oil Consumption(g/kw.h) | ≤1.63 |
Exhaust Temperature(°C) | ≤600 |
Crankshaft Ratating | Inverse Hour (Facing the power output end) |
Cooling Type | Forced Water Cooling |
Lubricating Type | Compound type with pressure and splash |
Starting Type | Electric Start |
warehouse
Weifang Huatian diesel engine can be widely used as the main power for generator set, fixed power, engineering machinery, agricultural machines and water pump set. All series engines are developed on the basis of original model by optimizing its fuel system, air intake and exhaust system, cooling system and transmitting system, to achieve high performance reliability and economical efficiency. The engines mainly have following features: lower oil consumption, higher reliability, bigger torque, easy starting & maintenance, and better adaptability
