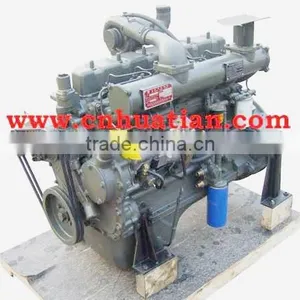

Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 90kw/122hp Chinese Ricardo Diesel Engine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Weifang Huatian
Model Number:
R6105AZD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
300KW Water-Cooled Diesel Engine R618DNegotiableMOQ: 1 Set -
Diesel Engine 31kw Used for Power TransmissionNegotiableMOQ: 1 Set
-
Weifang Ricardo 42kw Diesel Engine Generator SetNegotiableMOQ: 1 Set
-
Generator Engines 33kw With Best PriceNegotiableMOQ: 1 Set
-
60kw/81.6hp Diesel Engine With Clutch Belt PulleyNegotiableMOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
Weifang Huatian
Model Number
R6105AZD
Speed
1500rpm
Frequency
50hz
Rated Power
90kw/122hp
Specifications
1).R6105AZD Diesel Engine2).Forced water cooling
3).CE/ISO Certification
4).90kw/122hp Power Generator
5).4 stoke Engine
Product Description
| Model | R6105AZD |
| Type | 4-Strokes,Inline,Direct injection combustion chamber |
| Cylinder | Multi-cylinder |
| Total Displacement of Piston(L) | 6.49 |
| Press Ratio | 16:01 |
| Rated Power/Speed kw/rpm | 90/1500 |
| Fuel | Diesel |
| Starting Mode | Electric Starting |
| Cooling Mode | Forced Water Cooling |
| Lubricating Mode | Compound With Pressure And Splash |
| Crankshaft Ratating Direction | Ounter Clockwise |
| Warranty | 12 months or 3000hrs, whichever is lesser |
| Engine Model | Cylinder No. | Rated Power | Overload Power | Rated Speed | Fuel Consumption | Application |
| 295D | 2 | 13.5kw/18.4hp | 14.85kw/20.2hp | 1500rpm | 240g/kw.h | |
| 2100D | 2 | 15kw/20.4hp | 16.5kw/22.4hp | 1500rpm | 240g/kw.h | |
| 495D | 4 | 26.5kw/36.1hp | 29.15kw/40hp | 1500rpm | 238g/kw.h | |
| 495ZD | 4 | 36kw/49hp | 39.6kw/53.9hp | 1500rpm | 238g/kw.h | |
| K4100D | 4 | 30.1kw/41hp | 33.1kw/45hp | 1500rpm | 238g/kw.h | |
| K4100ZD | 4 | 41kw/55.8hp | 45.1kw/61.3hp | 1500rpm | 238g/kw.h | |
| K4102D | 4 | 33kw/44.9hp | 36.3kw/49.4hp | 1500rpm | 238g/kw.h | |
| HT4102ZD | 4 | 44kw/60hp | 48.4kw/65.8hp | 1500rpm | 238g/kw.h | |
| HT4106D | 4 | 48kw/65hp | 52.8kw/72hp | 1500rpm | 238g/kw.h | |
| HT4106ZD | 4 | 58kw/79hp | 63.8kw/86.8hp | 1500rpm | 238g/kw.h | Land Generator |
| R4105D | 4 | 42kw/57hp | 46.2kw/62.9hp | 1500rpm | 238g/kw.h | |
| R4105ZD | 4 | 56kw/76hp | 61.6kw/83.8hp | 1500rpm | 238g/kw.h | |
| R4105AZD | 4 | 60kw/81.6hp | 66kw/90hp | 1500rpm | 238g/kw.h | |
| R4105AZLD | 4 | 70kw/95hp | 77kw/104hp | 1500rpm | 238g/kw.h | |
| R6105D | 6 | 60kw/81.6hp | 66kw/90hp | 1500rpm | 224g/kw.h | |
| R6105ZD | 6 | 84kw/114hp | 92.4kw/125.7hp | 1500rpm | 224g/kw.h | |
| R6105AZD | 6 | 90kw/122hp | 99kw/134.7hp | 1500rpm | 224g/kw.h | |
| R6105ZLD | 6 | 100kw/136hp | 110kw/150hp | 1500rpm | 224g/kw.h | |
| R6105AZLD | 6 | 110kw/150hp | 121kw/165hp | 1500rpm | 224g/kw.h | |
| R6110IZLD | 6 | 132kw/180hp | 145.2kw/198hp | 1500rpm | 224g/kw.h | |
| HT6110ZLD | 6 | 150kw/204hp | 165kw/224hp | 1500rpm | 224g/kw.h | |
| R6113ZLD | 6 | 155kw/210hp | 170.5kw/232hp | 1500rpm | 224g/kw.h | |
| HT6126ZLD | 6 | 230kw/313hp | 253kw/344hp | 1500rpm | 208g/kw.h | |
| HT618D | 6 | 300kw/4o8hp | 330kw/450hp | 1500rpm | 208g/kw.h |
Packaging & Shipping
Our Services
Company Information
Weifang huatian Diesel Engine Co., Ltd, is located in weifang city, of Shandong province. Hundreds of workers,10 years experience, CE and ISO9001 certificated, less two hour reach Qingdao port. So far ,we already set up more than 20 sole agencies and dealer in the whole world ,such as Australia, Europe, Southeast Asia, East-Asia, Mid-east, America and Africa. Supply the fast and efficient after sales service. that’s how we keep superior quality and global valued customers.
