CE and ISO Certificated Diesel Engine 204hp Made in China

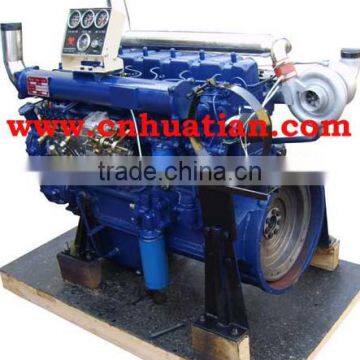

CE and ISO Certificated Diesel Engine 204hp Made in China photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Weifang Huatian
Model Number:
R6110ZLD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Weifang Huatian
Model Number R6110ZLD
Speed 1500rpm
Frequency 50hz
Rated Power 150kw/204hp

Specifications

1.204hp Diesel Engine R6110ZLD
2.Electric Start
3.Warranty for 1 Year
4.CE/ISO Certificated
5.water cooled


Product Description



Engine ModelR6110ZLD
Typewater-cooled,inline,4-stroke,direct injection
Rated Power150KW
Rated Speed1500rpm
Air intake type turbocharged
cylinder number6
Bore*Stroke110*135
Total Displacement of Piston7.518
Compression Ratio17:01
Starting TypeElectric Start
Fuel consumption228g/kw.h
Oil consumption ratio 0.8%
Exhaust Temperature(°C) 680
Lubricating Type Compound type with pressure and splash
Net Gross(kg)660
Dimession(mm)1400*820*1400





Engine ModelCylinder No.Rated PowerOverload PowerRated SpeedFuel Consumption

R6105D660kw/81.6hp66kw/90hp1500rpm224g/kw.h
R6105ZD684kw/114hp92.4kw/125.7hp1500rpm224g/kw.h
R6105AZD690kw/122hp99kw/134.7hp1500rpm224g/kw.h
R6105ZLD6100kw/136hp110kw/150hp1500rpm224g/kw.h
R6105AZLD6110kw/150hp121kw/165hp1500rpm224g/kw.h
R6110IZLD6132kw/180hp145.2kw/198hp1500rpm224g/kw.h
HT6110ZLD6150kw/204hp165kw/224hp1500rpm224g/kw.h
R6113ZLD6155kw/210hp170.5kw/232hp1500rpm224g/kw.h
HT6126ZLD6230kw/313hp253kw/344hp1500rpm208g/kw.h
HT618D6300kw/4o8hp330kw/450hp1500rpm208g/kw.h

 Warehouse




Company Information

Weifang huatian Diesel Engine Co.,Ltd, is located in weifang city,of Shandong  province.It is a professional company,in design,production of diesel engine,generator,water pump set,gas engine.We have advanced production line,high accurate testing equipment,completely quality control systems,as well as high level engineers and technicians and team of hard-working workers.Our products meet the  Standard of ISO9001 and CE.



Our main engine models are 295,2100,495,K4100,K4102,HT4106,R4105,R6105,R6113,HT6126,HT618.with power range of 13.5kw/18.4hp to 300kw/408hp,and engine speed can be from 1500rpm to 2500rpm.our engine can be used for generator,fixed power, engineering  industrial machine,loader,agriculatural machine.

We research and develop natural gas engine by ourselves.The modles can be 295Q,2100Q,495Q,4102Q,4105Q,6105Q,6113Q and 6126Q,from 8kw/10kva to 1000kw/1250kva. Coupled by world famous engine,such as Cummins,Perkins,Deutz,Daeeoo,Lovol,Shangchai weichai.And we also select high efficiency alternator,Stamford,Marathon,LEROY SOMER,ect. Depends on customer’s specific requirements,we can supply all the designs, such as open Type,Full Automatic Type, Mobile Trailer Wheels type,intelligent type generator sets.they are widely used and greatly appreciated in the electric power,the communication and the military fileds.
