High Efficiency and Eco-friendly Swimming Pool Solar Collector,solar Swimming Pool Heater

Specifications

Feature of portable swimming pool solar heater:

1. portable swimming pool solar heater uses super heat conduction pipe and has a good effect of heat exchange, better than barely vacuum tubes.

2. Collector separates with the storage tank, the tank can be put anywhere of the house

3. The pipe is made of red copper and conducted by heat transfer medium fluid, water does not flow in the vacuum tubes. Controller for collector has anti-freezing function. Circulation pump is operated when it reached fixed temperature.

4. A entire set of split solar water heater consists with solar collector, storage tank, working station and installation parts.

5. Multi-function for bathing, washing , cooking, etc.

6. An individual tube's breakage does not influence normal working of whole system.

Advantages of portable swimming pool solar heater:

- Cheap and reliable warming solution with simple structure and easy installation

- Could be used where climate falls below minus 40 degrees Celcius

- High efficiency with daily average efficiency higher than 50%

- Withstands full main pressure of household water supply

- Could be installed with parallel and/or series connections

How does portable swimming pool solar heater work?
The system circulates the pool water through the collectors and back into the pool. The temperature of the water is raised significantly as it passes through the collector array. To control the the temperature of the pool water, a differential thermostat can determine whether or not additional heat is needed. The system can be integrated with the existing filtering pump by the use of a 3-way valve or use an independent pump. The use of an independent pump our is preferred for reliability and control options.
Summer chilling of portable swimming pool solar heater:

During the hot summer months you can use the installation to chill your pool. Under this operating mode, the system runs during the night and refreshes the pool water that circulates through the panels.
Do the portable swimming pool solar heater need to face south?
Not necessarily. The solar pool collectors should be installed where they can be in the sun a good portion of the day. Depending on the angle of the mounting surface east and west facing systems can function equally as well.
Maintenance of portable swimming pool solar heater:
There is little to no maintenance required on solar heating systems beyond your usual pool winterizing procedures.
Durability of portable swimming pool solar heater:

Solar equipment lasts longer than gas or electric heaters.it has a 10-year warranty and generally last 15 to 20 years or longer.

How dose portable swimming pool solar heater work?

1.Water is pumped from the spa or swimming pool through a multi tube solar collector,

2.The solar energy collected by the absorber is transfered to the water during its journey.

3.As the water passes through the solar collector it is warmed by the sun a

4.Then the heated water returned to the pool.

Location and Time,Tools&Plumbing Requirements of portable swimming pool solar heater:

1.Location And Time

The solar collecotor shall be positioned facing sun as much as possible for a maximum efficiency.Idealy 30 deg.(above horizontal) facing south/east.

Position collector achieve a minimum of 6 hours of direct exposure to the sun every day will optimise performance. Larger systems can compensate in non ideal installations

.

2.Tools&Fittings Requirements of portable swimming pool solar heater:

Tool Required:Drill/Extruder Gun(for adhesive tubes)/Mini wallpaper roller/

Screw drivers/Hacksaw knife.

Fitting Required and optional accessories:Booster Pump/Solar Controll

er/Non return valve.ect.

-Solar Panel roll is made from NBR+PVC,Which is virtually immune to ultraviolet radiation and ozone, highly resistant to pool chemicals and harsh climate,Recommendd minimum pool coverage is 70%

portable swimming pool solar heater:

The solar heating systems of portable swimming pool solar heater is supplied in 4 m² boxes and contains necess

-ary components to install solar collector to your roof,rack or Lawn.

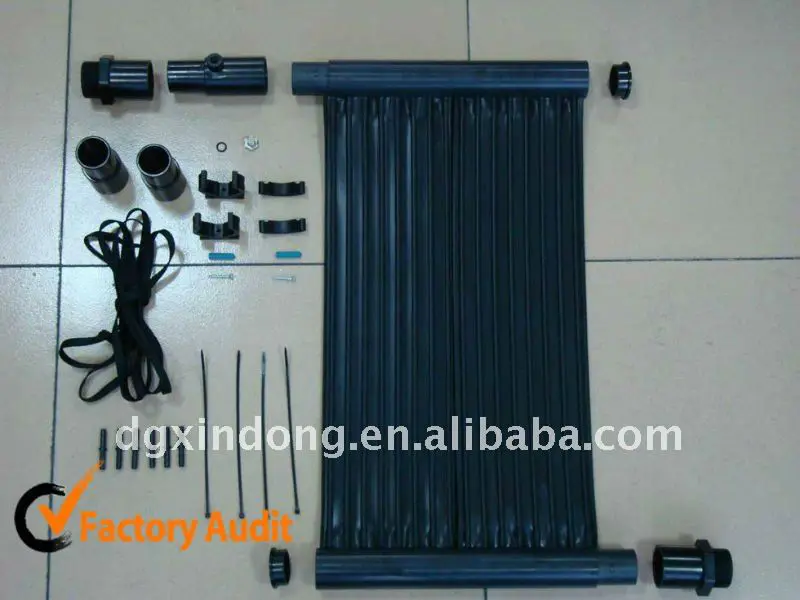

 The 4 m² boxes of portable swimming pool solar heater contains as follows:

(1).  8 pcs solar panel roll,each length is 3m.

        8 pcs  manifold pipel,on top and end side each is 4 pcs.

(2). 2 pcs end cap

(3). 2 pcs reduciton connector

(4). 6 pcs plastic bards

(5). 2 pcs pipe connectors

(6). 1pcs vacuun release valve

(7). 2pcs pp padles&clips

(8). 6pcs nylon ties

(9). 1pcs strap(with 8m length).

*Installation Guide of portable swimming pool solar heater:

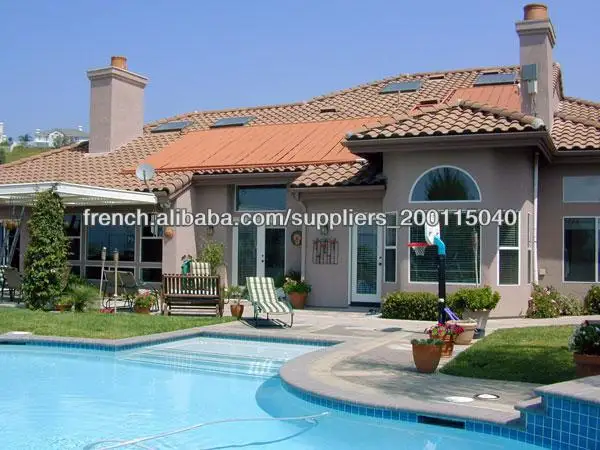

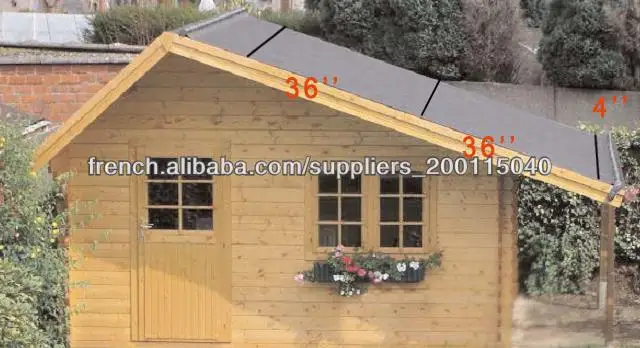

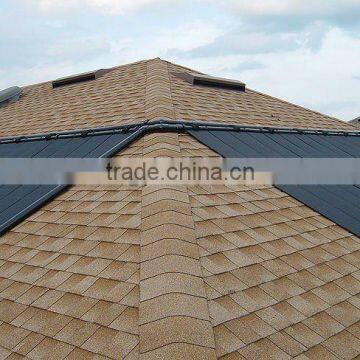

Solar collector can be installed almost anywhere on the roof of your house, garage, porch, shed, pergola or directly on your lawn.

*Recommended minimum pool coverage is 70%*

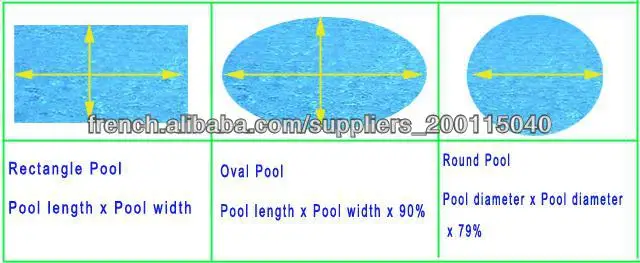

Calculation Example: Rectangle Pool Metres 8m in length x 4m in width coverage required.
- Measure your pool i.e. 8m in length x 4m in width = Pool area 32 m²
- Recommended minimum pool coverage is 70% = 22.4 m²
- Each pre-fixed is 1x4m² =4m²,so you require 6 pcs of pre-fixed to cover a 32 m² pool (70% =22.4m)
- Ideally Solar Panels should face in a southern position.
- Direct sunlight for a minimum of 6 hours every day.
- Larger systems can compensate non ideal installations.

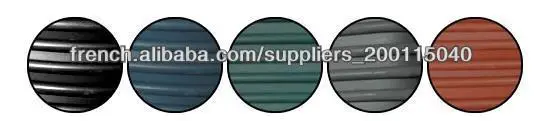

Colours available(Don't forget to add 20% extra if using any colour than black)

*Warranty Information of portable swimming pool solar heater:

Solar panel rolls            10 Years Pro-rata Warranty

Header kits Accessories   1 Year Conditional Warranty

This warranty covers the purchaser for failure of product, defective material or workmanship and will be replaced or repaired and is not a cash payment.
