Centrifugal vertical submersible sump pump for mining
Centrifugal vertical submersible sump pump for mining application
The vertical slurry pump is widely used in delivery slurry with solids in electric power, metallurgy, coal, building material and other industries. Such as hydraulic removing ash for thermal power plants, pump mill slurry in metallurgy delivery coal slurry and heavy slurry for coal.
Typical application:
Mine: black, colored slurry feed pump and delivery for kinds of concentrates and tailings;
Metallurgy: transport of various kinds of aluminum and steel mill slurry;
Coal: delivery for coal mining, washing, all kinds of coarse and fine coal slurry;
Electricity: transport for power plant ash, ash washing, various ash slurry, or mortar;
Building Materials: delivery for all kinds of including sediment slurry (such as cement plant slurry);
Chemical: delivery of phosphate fertilizer, potash fertilizer plant all kinds of abrasive slurry;
Water Works: lake, river dredging, sediment, gravel, clay high plastic suction and discharge.
In the mine site pump station
Drainage slurry working condition
Centrifugal vertical submersible sump pump for mining specification
1.Overview of BP(R) Submersible Sump Pump:
The vertical centrifugal sump pumps, which plunges immersed in liquid for conveying abrasive, coarse particles, high concentration slurry. The shaft seal and seal water does not be required, and the pump can also work inhaling the inadequacy of the operating conditions.
2.Application of BP(R) Submersible Sump Pump:
Mainly is suitable for the transportation corrosiveness, the big pellet, the highly concentrated dregs thick liquid. Widely applies to department and so on metallurgy, mine, coal, electric power, building materials, environmental
protection.
3.Salient Features of BP(R) Submersible Sump Pump
a) The wear parts are made of alloy of abrasion resistance .
b) High efficiency and energy efficiency
c) Light weight and long service life time
d) Rational construction and reliable operation.
e) Lower noise
Centrifugal vertical submersible sump pump for mining structure
1. Material construction optional
BP: abrasion resisting metal construction
BPR: anti-corrosive rubber construction
2. Do not need any shaft seal or sealing water
Also worked well under insufficient suction duty.
3. The type with “L” is the pump with extension shaft
It suitable to deep condition. It has guid bearing. So it more stable and used more wide. However the flushing water is necessary on the guide bearing part.
4. The agitator is available
We can assembly the agitator as requirements.
Centrifugal vertical submersible sump pump for mining parameter
Type | Material | Flow | Head | Max Power (kw) | Speed (rpm) |
40C-BP/R | Metal/Rubber | 7.2-39.6 | 3.9-27.4 | 15 | 1000-2200 |
65D-BP/R | Metal/Rubber | 19.08-102.6 | 5-31.1 | 30 | 700-1500 |
100E-BP/R | Metal/Rubber | 41.5-259.2 | 5.1-37.2 | 70 | 500-1200 |
150F-BP/R | Metal/Rubber | 115.2-576 | 6.7-35.7 | 110 | 500-1000 |
200F-BP/R | Metal/Rubber | 180-734.4 | 7.1-28.2 | 110 | 400-850 |
250S-BP/R | Metal/Rubber | 363-1188 | 7-36 | 200 | 400-750 |
300S-BP/R | Metal/Rubber | 385-1492 | 7.8-55 | 250 | 400-700 |
Centrifugal vertical submersible sump pump for mining curve

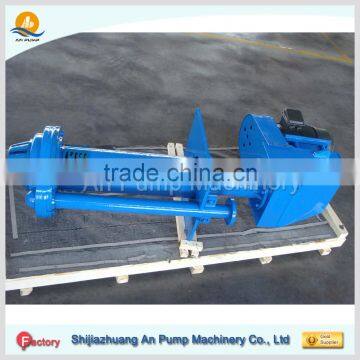

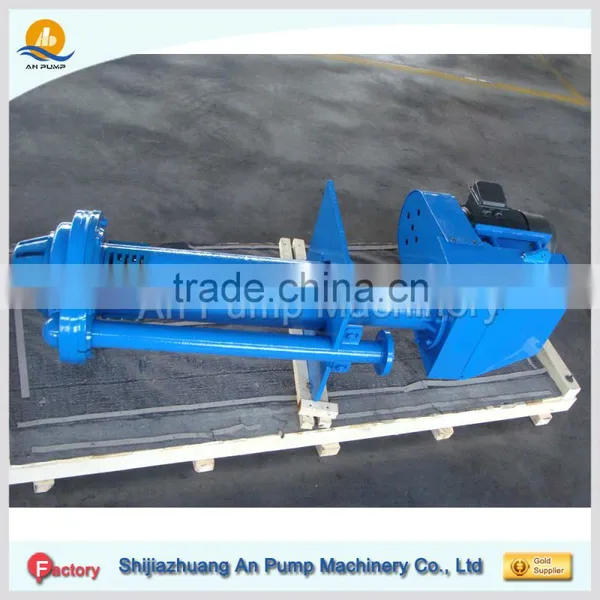

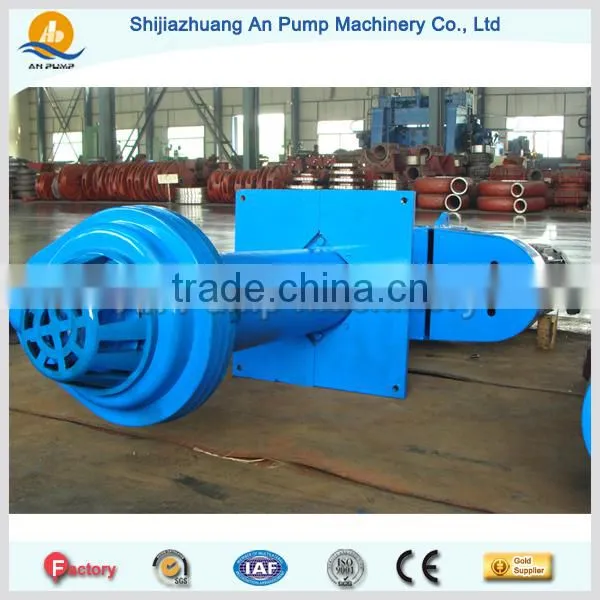

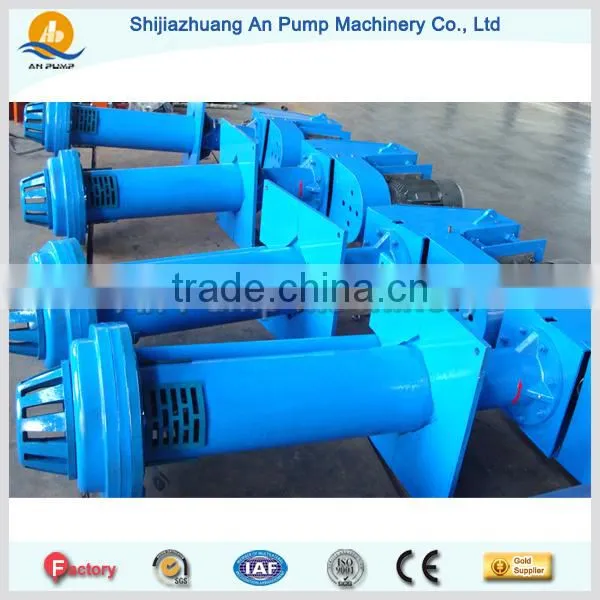

Centrifugal vertical submersible sump pump for mining pictures

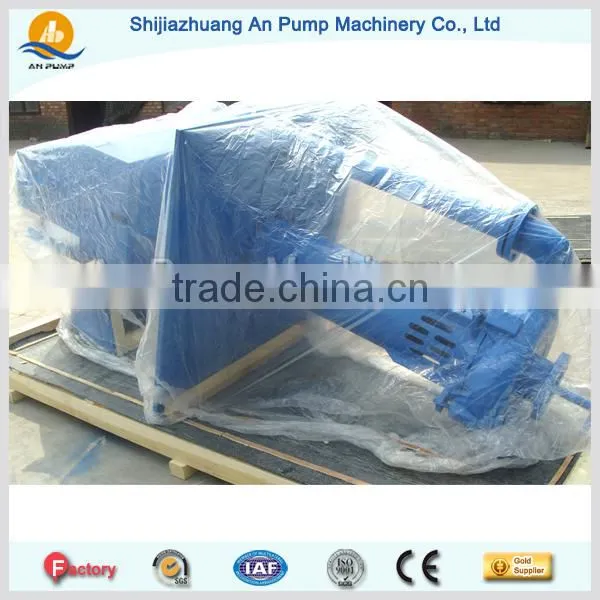

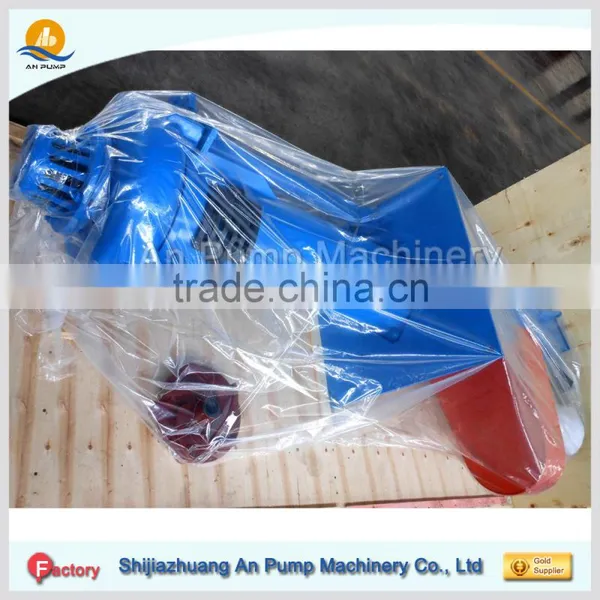

Centrifugal vertical submersible sump pump for mining packing and shipping
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has its own Kingda type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
Our Services
1. Offer Large capacity sea water pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Learn more , please contact us directly.
