Anti-abrasive Caustic Resistant Centrifugal Mining Solid Slurry Pump

Anti-abrasive Caustic Resistant Centrifugal Mining Solid Slurry Pump thumbnail-1
Anti-abrasive Caustic Resistant Centrifugal Mining Solid Slurry Pump thumbnail-2
Anti-abrasive Caustic Resistant Centrifugal Mining Solid Slurry Pump thumbnail-3
Anti-abrasive Caustic Resistant Centrifugal Mining Solid Slurry Pump thumbnail-4
Anti-abrasive Caustic Resistant Centrifugal Mining Solid Slurry Pump thumbnail-5
Anti-abrasive Caustic Resistant Centrifugal Mining Solid Slurry Pump thumbnail-6
Anti-abrasive Caustic Resistant Centrifugal Mining Solid Slurry Pump photo-1
Anti-abrasive Caustic Resistant Centrifugal Mining Solid Slurry Pump photo-2
Anti-abrasive Caustic Resistant Centrifugal Mining Solid Slurry Pump photo-3
Anti-abrasive Caustic Resistant Centrifugal Mining Solid Slurry Pump photo-4
Anti-abrasive Caustic Resistant Centrifugal Mining Solid Slurry Pump photo-5
Anti-abrasive Caustic Resistant Centrifugal Mining Solid Slurry Pump photo-6
US$ 500 - 180,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
An Pump
Model Number:
AM/AMR centrifugal mining solid slurry pump
Contact Supplier Request Quote Chat Now
Shijiazhuang An Pump Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin shanghai shenzhen qingdao etc any port of China is ok
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name An Pump
Model Number AM/AMR centrifugal mining solid slurry pump
Theory Other, Centrifugal slurry pump
Structure Other, Single Stage Horizontal Slurry Pump
Usage Other, transporting abrasive or corrosive slurry, anti-abrasive caustic pump
Power Electric
Standard or Nonstandard Standard
Fuel Other, diesel and gasoline anti-abrasive caustic mining slurry pump
Pressure Other, high pressure vane mining pump
Application Other, slurry liquid, slage,sludge, sewage, solid liquid etc slurry pump

Anti-abrasive caustic resistant centrifugal mining solid slurry pump

anti-abrasive caustic resistant centrifugal mining solid slurry pump

Product Description

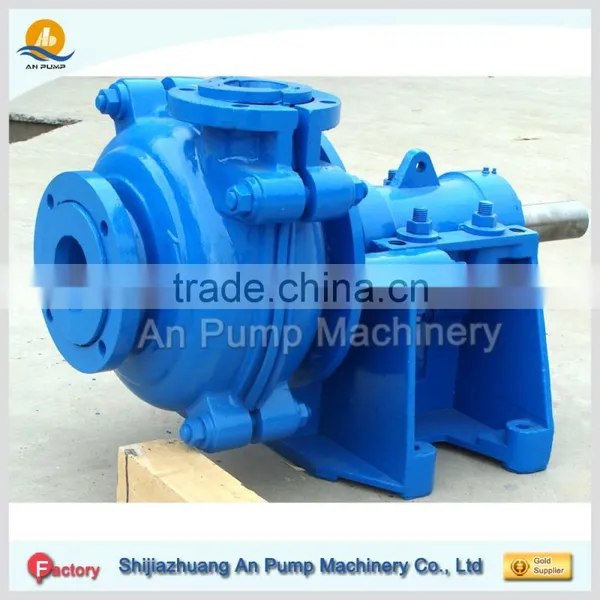

 AM/AMR centrifugal mining solid slurry pump

General



AM/AMR series is horizontal, cantilevered centrifugal Mining Slurry pump, with reasonable construction, reliable operation, long service life. It is widely used in transporting abrasive or / and corrosive slurry in mining, metallurgy, electric power, coal, chemicals, building, etc. Especially well accepted by coal / chrome washing plant, mineral processing plant, power plant etc.



 AM/AMR centrifugal mining solid slurry pump Design Features



• Bearing assembly – A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four  through bolts are required to hold the cartridge type housing in the  frame.

• Liners – Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded  elastomers. Elastomer seal rings back all liner joints.

• Casing – Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

• Impeller – Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are completely interchangeable. Cast  in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.

• Throat bush – Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

• One-piece frame – A very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for

easy adjustment of impeller clearance.



AM/AMR centrifugal mining solid slurry pump Structure

anti-abrasive caustic resistant centrifugal mining solid slurry pump



Metal liner

Rubber liner

1

Volute liner

1

Frame plate

2

Frame plate

2

Expeller ring

3

Frame plate liner insert

3

Gland assembly

4

Cover plate

4

Shaft sleeve

5

Throat bush

5

Expeller

6

Impeller

6

Frame plate liner

7

Expeller ring

7

Impeller

8

Shaft sleeve

8

Cover plate liner

9

Expeller

9

Cover plate

10

Bearing assembly

Note: Slurry pumps have Throat Bush from 4"



AM,AMR centrifugal mining solid slurry pump Performance Data





Model

Max Power

(kw)

Material

Clear water performance

Liner

Impeller

Capacity Q

(m3/h)

Head

H ( m)

Speed

n (rpm)

1.5/1B-AM

15

M

M

12.6~28.8

6~68

1200~3800

RU

RU

10.8~25.2

7~52

1400~3400

1.5/1B-AMH

30

M

M

16.2~34.2

25~92

1400~2200

2/1.5B-AM

15

M

M

32.4~72

6~58

1200~3200

RU

RU

25.2~54

5.5~41

1000~2600

3/2C-AM

30

M

M

39.6~86.4

12~64

1300~2700

RU

RU

36~75.6

13~39

1300~2100

4/3C-AM

30

M

M

86.4~198

9~52

1000~2200

4/3D-AM

60

4/3C-AM

30

RU

RU

79.2~180

5~34.5

800~1800

4/3D-AM

60

4/3E-AMH

120

M

M

126~252

12~97

600~1400

6/4D-AM

60

M

M

162~360

12~56

800~1550

6/4E-AM

120

6/4D-AM

60

RU

RU

144~324

12~45

800~1350

6/4E-AM

120

6/4F-AMH

260

M

M

100~414

34~98

600~1000

8/6E-AM

120

M

M

360~828

10~61

500~1140

8/6E-AM

120

RU

RU

324~720

7~49

400~1000

10/8ST-AM

560

M

M

612~1368

11~61

400~850

RU

RU

540~1188

12~50

400~750

10/8E-MM

120

M

M

666~1440

14~60

600~1100

10/8E-MM

120

RU

RU

540~1188

10~42

500~900

12/10ST-AM

560

M

M

936~1980

7~68

300~800

M

M

720~1620

7~45

300~650

14/12ST-AM

560

M

M

1260~2772

13~63

300~600

RU

RU

1152~2520

13~44

300~500

16/14ST-AM

560

M

M

1368~3060

11~63

250~550

16/14TU-AM

1200

18/16ST-AM

560

M

M

2160~5040

8~66

200~500

18/16TU-AM

1200

20/18TU-AM

1200

M

M

2520~5400

13~57

200~400



AM, AMR centrifugal mining solid slurry pump Performance Curve



anti-abrasive caustic resistant centrifugal mining solid slurry pump

 AM/AMR centrifugal mining solid slurry pump Applications



Chemical Process

Heavy Minerals

Paper and Pulp

Mill Discharge

Sugar Beet

Slag Granulation

Bottom Boiler and Fly Ash

Cyclone Feed

Power Utilities





Packaging & Shipping

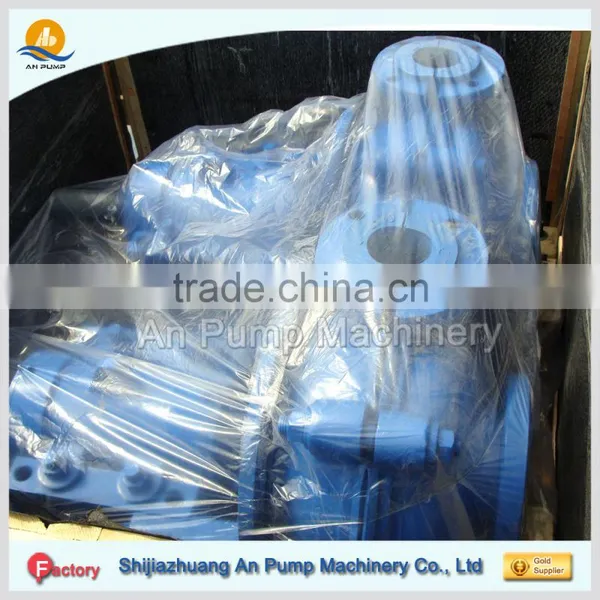

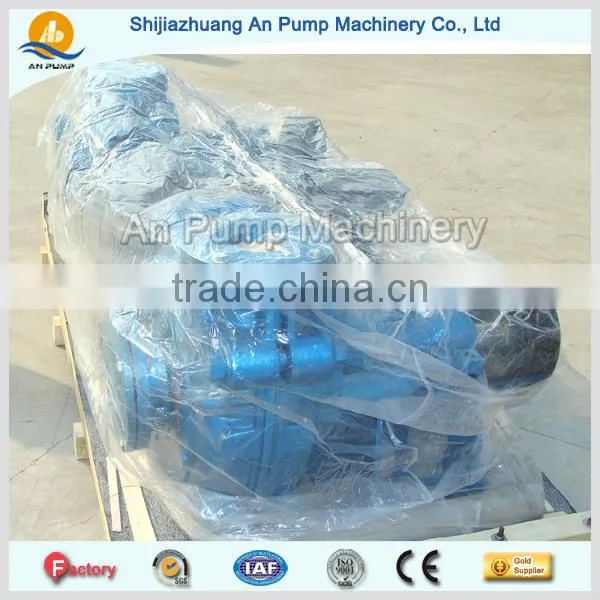

Standard wooden case packing of  AM/AMR centrifugal mining solid slurry pump



anti-abrasive caustic resistant centrifugal mining solid slurry pump

anti-abrasive caustic resistant centrifugal mining solid slurry pump

anti-abrasive caustic resistant centrifugal mining solid slurry pump







Company Information

An Pump Machinery is your Best Slurry Pump Manufacturer

 anti-abrasive caustic resistant centrifugal mining solid slurry pump



An Pump Machinery Co. ,Ltd is the pump manufacturer with 50+ years experienced

Our pumps export to over 90 countries all over the world in mining, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc. click to more...

anti-abrasive caustic resistant centrifugal mining solid slurry pump





anti-abrasive caustic resistant centrifugal mining solid slurry pump

An Pump Machinery is your ISO certificated Centrifugal Slurry Pump Manufacturer

anti-abrasive caustic resistant centrifugal mining solid slurry pump

An Pump Machinery is also CE cerficated Mining Slurry Pump Manufacturer
