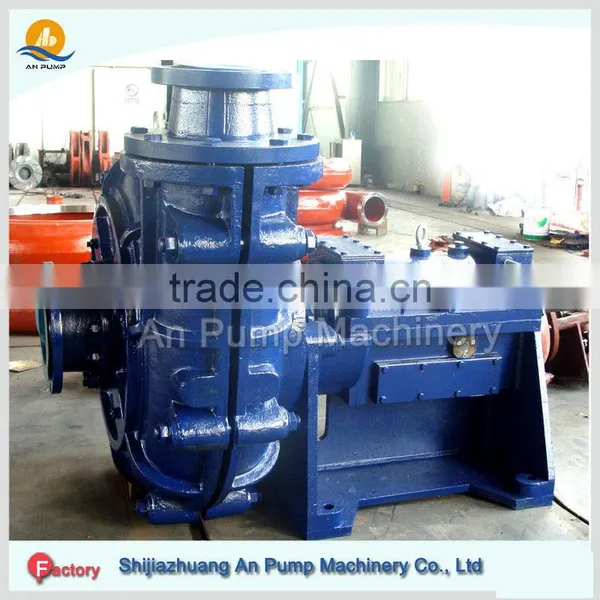

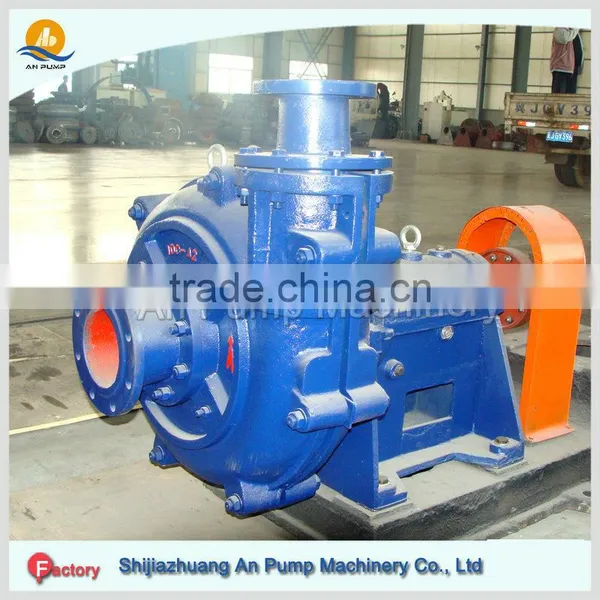

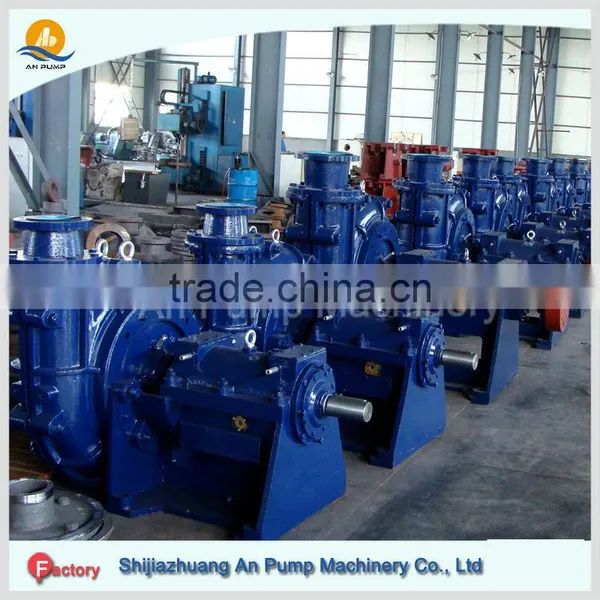

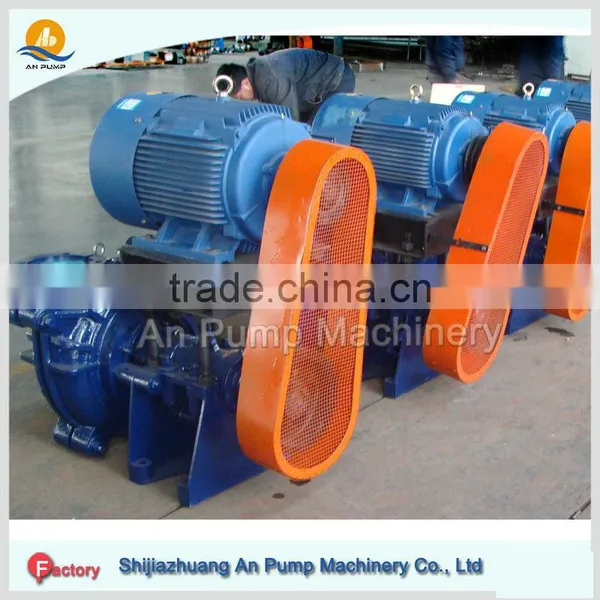

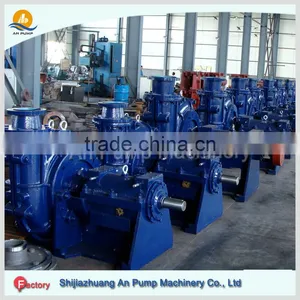

Centrifugal Zj Horizontal and Zjl Vertical Slurry Pump
US$ 150 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
An Pump
Model Number:
ZJL
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin or Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Effluent Handling Vertical Sump PumpUS$ 500 - 6,800MOQ: 1 Set -
Bp Series Vertical Submersible Sump SlurryUS$ 500 - 6,800MOQ: 1 Set
-
an Pump Machinery High Pressure Bareshaft Slurry PumpUS$ 150 - 8,000MOQ: 1 Set
-
BP(R) Type Submerged Slurry PumpsUS$ 150 - 8,000MOQ: 1 Set
-
Long-service-life Centrifuge Slurry PumpUS$ 150 - 8,000MOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
An Pump
Model Number
ZJL
Theory
Other, Centrifugal Pump, Centrifugal Pump
Structure
Single-stage Pump
Usage
Other, Submersible Mineral Slurry,vertical slurry pump
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, Diesel, Sump slurry pump
Pressure
High Pressure
Application
Submersible
Product Description
Centrifugal ZJ Horizontal and ZJL Vertical Slurry Pump
General overview about Centrifugal ZJ Horizontal and ZJL Vertical Slurry Pump
AZ, AZL series slurry pump is suitable for handling slurry with abrasive and corrosive solids, which maximum weight density of 45% (ash and coal slurry) and 60% (ore and heavy slurry). It widely used in power, metallurgy, mining, coal, construction materials and other sectors.
can be installed in series according to end user's requirements.
AZ series slurry pumps lead in various technical performance in our domestic counterparts. It was researched and developed on the basis of AM series slurry pump.
With most of the approaching the quality, high performance, best service advanced world level in efficiency, the pumps are used all over the world and exported to Europe, America, and Africa..
Applications of Centrifugal ZJ Horizontal and ZJL Vertical Slurry Pump
Widely used in delivery slurry with solids in electric power, metallurgy, coal, building material and other industries. Such as hydraulic removing ash for thermal power plants, pump mill slurry in metallurgy delivery coal slurry and heavy slurry for coal.
Spare parts about Centrifugal ZJ Horizontal and ZJL Vertical Slurry Pump
Structural Features of Centrifugal ZJ Horizontal and ZJL Vertical Slurry Pump
The pump is split vertical direction double casing structure. Discharge port can be positioned at 8 different position at an interval 45°.
Shaft Seal
Expeller seal with gland packing
Gland packing seal
Mechanical seal
Material
Metal
High-abrasive metal material
High-abrasive and corrosion resisting metal materials
Corrosion resisting metal materials
Performance data sheet about Centrifugal ZJ Horizontal and ZJL Vertical Slurry Pump
Note:
1. RU: rubber, M: alloy wear-resistant material,
2. Recommended flow: 50%Q'≤Q≤110%Q'
(Q'≈Appropriate to capacity at highest efficiency point)
3. NPSH: recommended point Q at highest speed
General overview about Centrifugal ZJ Horizontal and ZJL Vertical Slurry Pump
AZ, AZL series slurry pump is suitable for handling slurry with abrasive and corrosive solids, which maximum weight density of 45% (ash and coal slurry) and 60% (ore and heavy slurry). It widely used in power, metallurgy, mining, coal, construction materials and other sectors.
can be installed in series according to end user's requirements.
AZ series slurry pumps lead in various technical performance in our domestic counterparts. It was researched and developed on the basis of AM series slurry pump.
With most of the approaching the quality, high performance, best service advanced world level in efficiency, the pumps are used all over the world and exported to Europe, America, and Africa..
Applications of Centrifugal ZJ Horizontal and ZJL Vertical Slurry Pump
Widely used in delivery slurry with solids in electric power, metallurgy, coal, building material and other industries. Such as hydraulic removing ash for thermal power plants, pump mill slurry in metallurgy delivery coal slurry and heavy slurry for coal.
Spare parts about Centrifugal ZJ Horizontal and ZJL Vertical Slurry Pump
| 1. | Coupling | 7. | Volute casing | 12. | Stuffing box |
| 2. | Shaft | 8. | Impeller | 13. | Water-seal |
| 3. | Bearing housing | 9. | Front liner plate | 14. | Base |
| 4. | Disassemble ring | 10. | Front casing | 15. | Support |
| 5. 6. | Expeller Rear liner plate | 11. | Rear casing | 16. | Adjusting bolts |
Structural Features of Centrifugal ZJ Horizontal and ZJL Vertical Slurry Pump
The pump is split vertical direction double casing structure. Discharge port can be positioned at 8 different position at an interval 45°.
Shaft Seal
Expeller seal with gland packing
Gland packing seal
Mechanical seal
Material
Metal
High-abrasive metal material
High-abrasive and corrosion resisting metal materials
Corrosion resisting metal materials
Performance data sheet about Centrifugal ZJ Horizontal and ZJL Vertical Slurry Pump
| Model | Max Power | Material | Clear water performance | Impeller Vane No. | |||||
| Liner | Impeller | Capacity Q ( m3/h) | Head H ( m) | Speed n (rpm) | Eff. Η(%) | NPSH (m) | |||
| 1.5/1B-AM | 15 | M | M | 12.6~28.8 | 6~68 | 1200~3800 | 40 | 2~4 | 5 |
| RU | RU | 10.8~25.2 | 7~52 | 1400~3400 | 35 | 3 | |||
| 1.5/1B-AMH | 30 | M | M | 16.2~34.2 | 25~92 | 1400~2200 | 20 | 1~5.5 | 5 |
| 2/1.5B-AM | 15 | M | M | 32.4~72 | 6~58 | 1200~3200 | 45 | 3.5~8 | 5 |
| RU | RU | 25.2~54 | 5.5~41 | 1000~2600 | 50 | 2.5~5 | |||
| 3/2C-AM | 30 | M | M | 39.6~86.4 | 12~64 | 1300~2700 | 55 | 4~6 | 5 |
| RU | RU | 36~75.6 | 13~39 | 1300~2100 | 2~4 | ||||
| 4/3C-AM | 30 | M | M | 86.4~198 | 9~52 | 1000~2200 | 71 | 4~6 | 5 |
| 4/3D-AM | 60 | ||||||||
| 4/3C-AM | 30 | RU | RU | 79.2~180 | 5~34.5 | 800~1800 | 59 | 3~5 | 5 |
| 4/3D-AM | 60 | ||||||||
| 4/3E-AMH | 120 | M | M | 126~252 | 12~97 | 600~1400 | 50 | 2~5 | 5 |
| 6/4D-AM | 60 | M | M | 162~360 | 12~56 | 800~1550 | 65 | 5~8 | 5 |
| 6/4E-AM | 120 | ||||||||
| 6/4D-AM | 60 | RU | RU | 144~324 | 12~45 | 800~1350 | 65 | 3~5 | 5 |
| 6/4E-AM | 120 | ||||||||
| 6/4F-AMH | 260 | M | M | 100~414 | 34~98 | 600~1000 | 64 | 2~8 | 5 |
| 8/6E-AM | 120 | M | M | 360~828 | 10~61 | 500~1140 | 72 | 2~9 | 5 |
| 8/6E-AM | 120 | RU | RU | 324~720 | 7~49 | 400~1000 | 65 | 5~10 | 5 |
| 10/8ST-AM | 560 | M | M | 612~1368 | 11~61 | 400~850 | 71 | 4~10 | 5 |
| RU | RU | 540~1188 | 12~50 | 400~750 | 75 | 4~12 | |||
| 10/8E-MM | 120 | M | M | 666~1440 | 14~60 | 600~1100 | 73 | 4~10 | 5 |
| 10/8E-MM | 120 | RU | RU | 540~1188 | 10~42 | 500~900 | 79 | 5~9 | 5 |
| 12/10ST-AM | 560 | M | M | 936~1980 | 7~68 | 300~800 | 82 | 6 | 5 |
| M | M | 720~1620 | 7~45 | 300~650 | 80 | 2.5~7.5 | |||
| 14/12ST-AM | 560 | M | M | 1260~2772 | 13~63 | 300~600 | 77 | 3~10 | 5 |
| RU | RU | 1152~2520 | 13~44 | 300~500 | 79 | 3~8 | |||
| 16/14ST-AM | 560 | M | M | 1368~3060 | 11~63 | 250~550 | 79 | 4~10 | 5 |
| 16/14TU-AM | 1200 | ||||||||
| 18/16ST-AM | 560 | M | M | 2160~5040 | 8~66 | 200~500 | 80 | 4.5~9 | 5 |
| 18/16TU-AM | 1200 | ||||||||
| 20/18TU-AM | 1200 | M | M | 2520~5400 | 13~57 | 200~400 | 85 | 5~10 | 5 |
1. RU: rubber, M: alloy wear-resistant material,
2. Recommended flow: 50%Q'≤Q≤110%Q'
(Q'≈Appropriate to capacity at highest efficiency point)
3. NPSH: recommended point Q at highest speed
