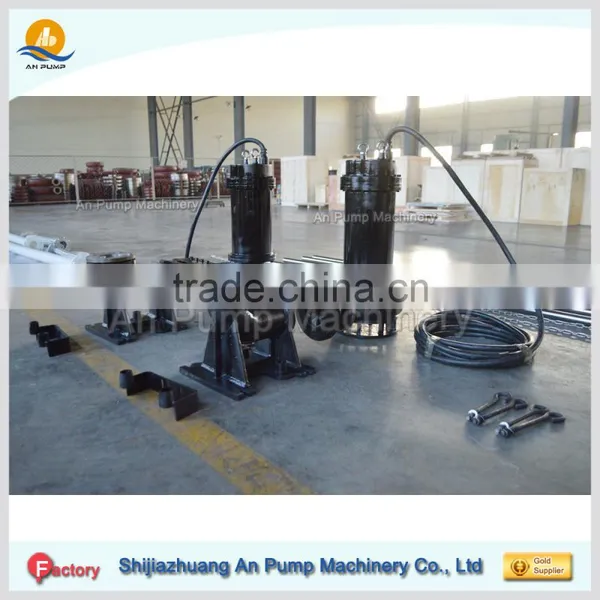

Electric submersible sewage pump with auto-coupling device
Electric submersible sewage pump with auto-coupling device Description:
our company produced ASW series submersible sewage pump has the features of high efficiency,energy saving, anti-winding, non-clogging, automatic installation and automatic control.
In the aspect of discharge solids and macro-fiber, it has unique effect.
The passing particle size can reach to 50% of the outlet, with the advantages of high efficiency, low vibration and good energy saving. The pump capacity range 2-2000m3/h, head 3-60m, speed 580-3500rpm, diameter φ25-400mm, temperature -20-80℃. It can be widely used in pond, transportation of sea water, fish and shrimp farming, water conservancy facilities, sewage treatment, mining, construction fields etc.
Electric submersible sewage pump with auto-coupling device advantages are as follows:
1)Using large flow-channel anti-clogging hydraulic component design, greatly improve the ability of sewage passing through, can effectively through fiber material five times of the pump diameter and the particle diameter up to 50% of outlet;
2)Mechanical seal adopt double tandem seal, material is hard corrosion tungsten carbide, with characters durable, wear-resisting etc;
3)Structure compact, small volume, easy to move and installation, no need to build pump room;
4)The pump can work when submerged into water, pump oil chamber equipped with oil-water probe, when mechanical seal damaged, the probe will make signal after water entered into oil chamber;
5) According to user’s requirements for pump protection can be equipped with automatic security control cabinet, monitoring the pump leakage, creepage, overload and over-temperature, ensure the pump running reliable and safe;
6)Can use fixed coupling installation, double guide rail automatic coupling installation system, it brought great convenience for installation and maintenance, serviceman do not need to go into the sewage pool;
7) We can change the float switch position according to the required level, automatic control the pump start-stop, no need person to supervise;
8)The motor can adopt water jacket type outside circulating cooling system to ensure the electric pump running safety in condition of no water(dry).
Electric submersible sewage pump with auto-coupling device Applications&Usages
harbour construction
ash transfer
silt removal
sand and gravel pumping
barge and tank clean out
lime slurry
coal runoff sumps
food waste
Electric non-clogging submersible sewage pump Technical Specifications
| Type | AQW |
| Capacity | 2000m3/h |
| Head | 60m |
| Discharge Diameter | 500mm |
| Speed | 2900r/min |
| Efficiency | 86%-96% |
Main Benefits&Advantages
(1)More than 20 years in pumps line.
(2)Long-term reliability.
(3)Excellent rag handling.
(4)Sustainable in manufacturing and operations.
(5)Reduced risk of pollution from overflows.
(6)Reduced risk of interruption to services to customers.
(7)Reduced breakdown costs.
Electric submersible sewage pump with auto-coupling device structure
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An pump machinery company has its own strong type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
Guarantee and Service
1 year guarantee of whole machine set, except the flow parts
24hours *7 days service is available
Calling or door to door service
User manual and maintenance instruction is available
Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.
Q2. What markets do your pumps export to?
Europe, North & South America, SouthEast Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, Canada, France, America, Middle East, Asia and Africa are gradually improving.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision
and accurate model selection.
Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.
Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
