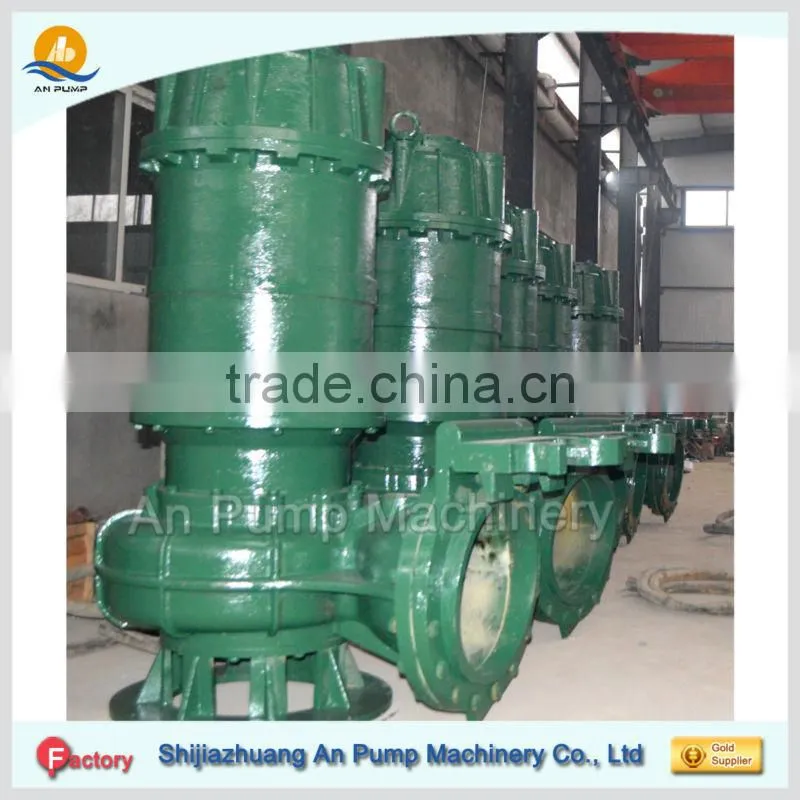

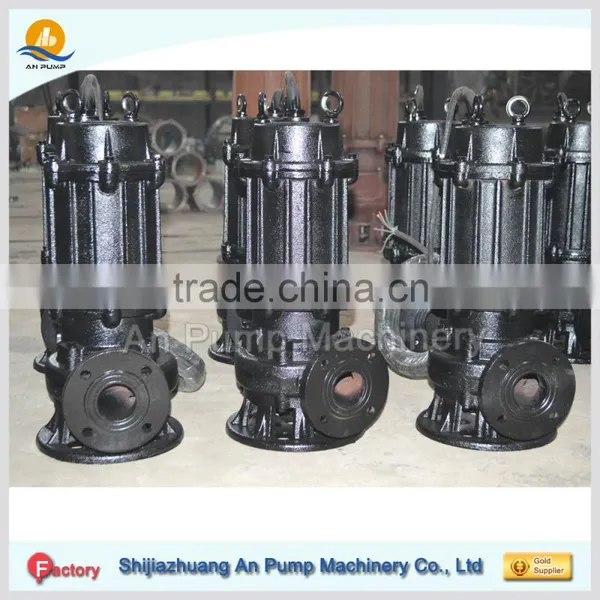

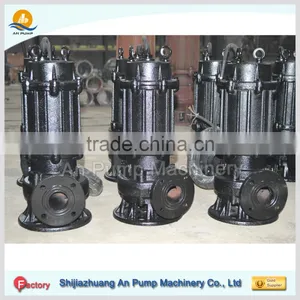

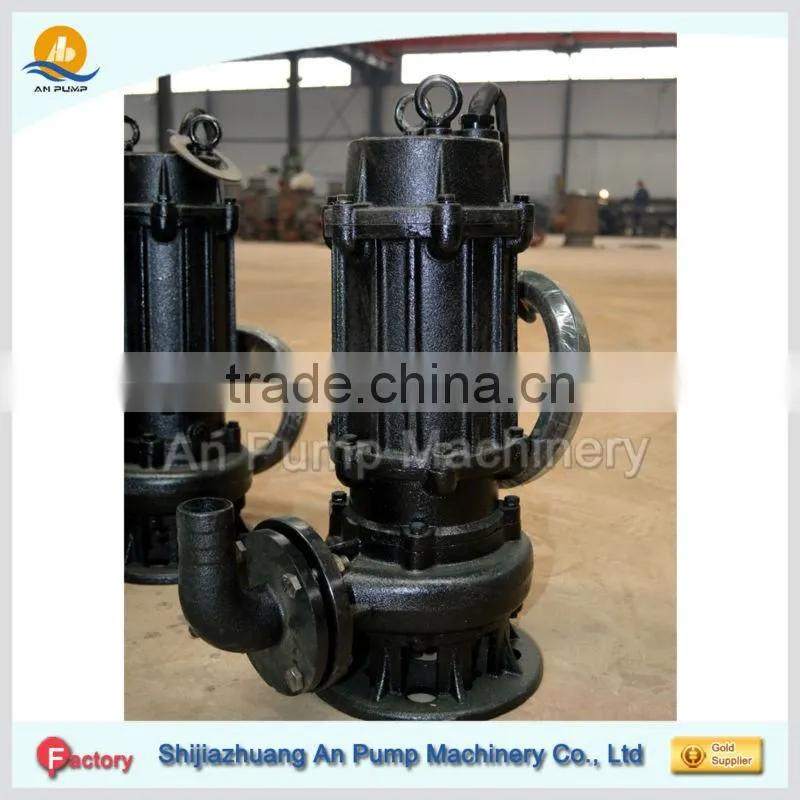

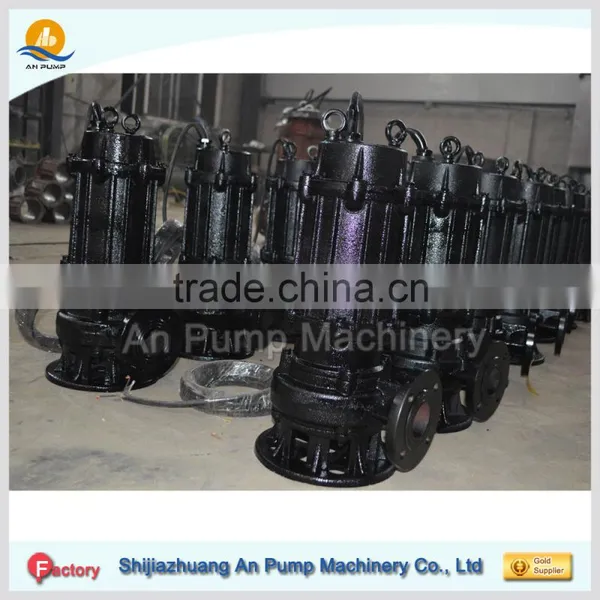

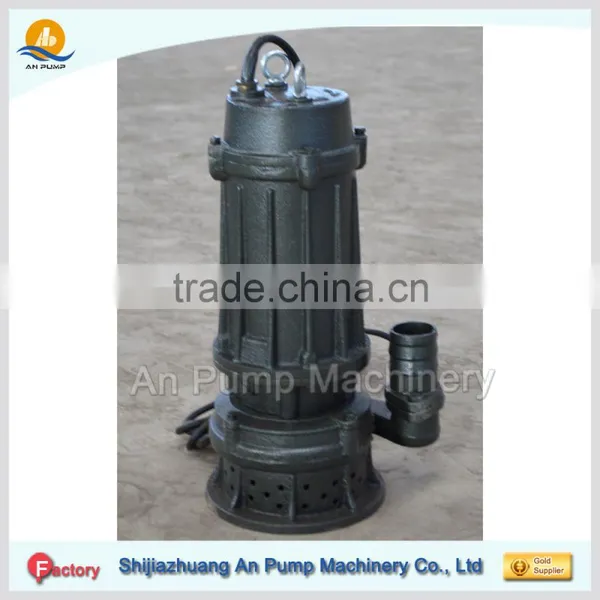

Float switch submersible sewage pump
Shijiazhuang An Pump Machinery Co., Ltd is a professional slurry pump manufacturer in China. We engage in heavy duty and serve duty material handling solutions.
Float switch submersible sewage pump parameter
Vertical Submersible Sewage Pump Performance | |||||
Type |
Flow (m3/h) |
Head (m) |
Speed (r/min) |
Motor Power (KW) |
Efficiency (%) |
40ASW |
8.4-14.4 |
14-16 |
2900 |
1.5 |
42-70 |
50ASW |
7-50.4 |
8-36 |
1450-2900 |
0.75-7.5 |
46-62 |
65ASW |
17.5-44.4 |
11-30.2 |
2900 |
2.2-4 |
39-72 |
80ASW |
20.3-72 |
5.7-27.5 |
2900 |
2.2-7.5 |
51-75 |
100ASW |
35-120 |
5.6-38.5 |
1450 |
4-15 |
46-80 |
150ASW |
49-300 |
5.5-44.5 |
1450 |
5.5-37 |
58-82 |
200ASW |
110-480 |
5.7-44.5 |
1450 |
11-75 |
63-83 |
250ASW |
420-840 |
7-35 |
980-1450 |
30-90 |
63-84.5 |
300ASW |
280-1140 |
6.7-27 |
980-1450 |
45-110 |
68-84.5 |
350ASW |
700-1800 |
8-40 |
980 |
45-160 |
68-85 |
400ASW |
1050-2640 |
12-33 |
980 |
132-160 |
71-85 |
500ASW |
1400-3600 |
9-22.5 |
980 |
110-200 |
72-85 |
Float switch submersible sewage pump curve
Float switch submersible sewage pump introduction
1.vertical submersible sewage pump for waste water
2.ASW series pump is a kind of submersible sewage motor pump,and the pump and the motor are coaxial.
3.ASW series submersible sewage motor pump mainly used in municipal engineering, industry, hospital, hotel,etc.
4. It is used for pumping sludge , sewage and city life sewage with solids and long fiber (including erosive matters )
5.Our submersible sewage motor pumps have following advantages: hi-efficiency, circumvolution proof,non-block,auto-coupling, hi-reliability and auto-control,etc.
6.The unique cable airproof is adopted, avoiding leakage of cable.
7.Rated Voltage: 380V(660V), Frequency: 50Hz, 3-phase AC. Temperature of medium under 40°C. PH of medium: 4~10. Volume ratio of solid in medium below 2%.Density of medium should be lower than 1.2*10³kg/m³.
8..Heat protector in stator assures operating life of the motor.
9.Adopt perfect mechanical seal and the sealing material adopt tungsten carbide, silicon carbide and hard metal alloy, so it can prevent the water from entering in the motor, and keep the operating reliable and safety.
Float switch submersible sewage pump structure

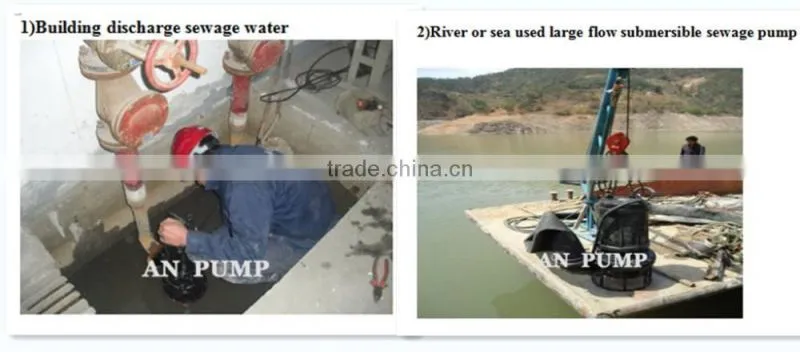

Float switch submersible sewage pump application

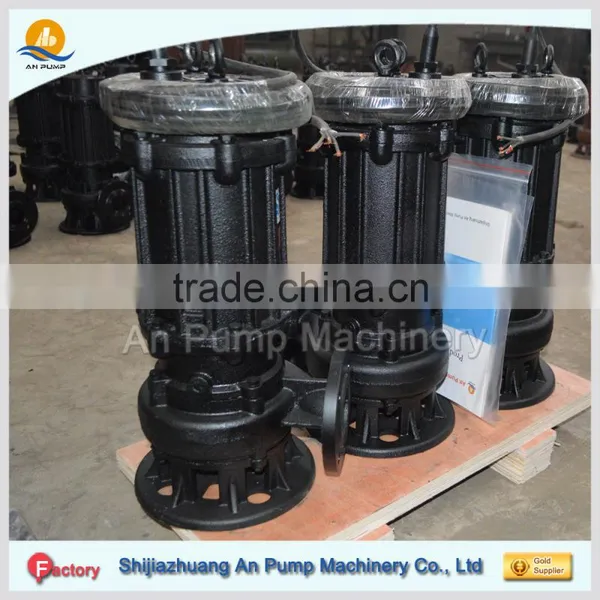

Float switch submersible sewage pump packing and shipping
Our Services
1. Offer Large capacity pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
