AZX self prime trailer mounted vacuum sewage truck pump
1.AZX series self priming sewage pump performance:
Self Priming Sewage Pump Performance | ||||||
Pump Type |
Flow (m3/h) |
Head (m) |
Speed (rpm) |
Motor Power(kw) |
NPSH (m) |
Eff (%) |
AZX25 |
8 |
15 |
2900 |
2.2 |
2 |
45 |
AZX32 |
5-10 |
20-30 |
2900 |
2.2-3 |
2.5 |
45-48 |
AZX40 |
10-20 |
15-30 |
2900 |
2.2-3 |
2.5 |
48-48 |
AZX50 |
10-20 |
12-35 |
2900 |
2.2-5.5 |
2.5 |
45-48 |
AZX65 |
25-65 |
18-40 |
1450-2900 |
4-7.5 |
2.5-3 |
45-52 |
AZX80 |
25-80 |
16-60 |
1450-2900 |
4-22 |
3 |
45-55 |
AZX100 |
80-100 |
15-80 |
1450-2900 |
7.5-45 |
4 |
50-55 |
AZX125 |
120 |
20 |
1450 |
15 |
4.5 |
55 |
AZX150 |
180 |
14-38 |
1450 |
15-55 |
5 |
45-60 |
AZX200 |
280-300 |
14-28 |
1450 |
22-55 |
4.8-5 |
55-65 |
AZX250 |
420 |
20 |
1450 |
55 |
6 |
61 |
AZX300 |
800 |
14 |
1450 |
55 |
6 |
65 |
2.AZX series self priming pump performance curve:
3.AZX series self priming pump introduction:
ZX self-priming Non-Clogging swage pump integrates self-priming and non-jamming blow down, which is unnecessary for mounting the bottom valve and guiding the water like the general self-priming clear water pump and also can pump the filth containing big solid blocks and long fibers, sediment, waste ore, impurities, excrement and all engineering sewage. Therefore, it can alleviate the worker′ s labor intensity completely and also is easy for use, move and installation with seldom maintenance and stable performance .reliable performance, seldom needs maintenance, install easy ,reducing workers′ labor intensity be integrated with self-suction and drainage. It doesn′t need to fix a foot valve or fill inducting water as common clean water self-suction pump. It is international standard and no noise.
4.Features:
1)AZX selfpriming sewage pump sewage disposal capability is strong; Held in special impeller design, ensure the pump efficiency and no blockage.
2)Self-priming sewage pump has high efficiency and energy saving, with excellent hydraulic
model, the efficiency is higher than general self-priming pump 3-5%.
3)AZX self-priming sewage pump self-priming performance is good, is higher than average self-priming pump self-priming height 1 m, and the self-priming time shorter.
4)The biggest characteristic is to have a strong self-priming capacity, there is no need of bottom valve in pipeline, before starting work you just need to keep a quantitative lead liquid storage, simplifies the pipeline system, improved the working conditions.
5.Application:
Application for municipal sewage discharge, aquiculture ,light industry, papermaking, textile, foodstuff, chemical ,electric power ,fibre, to handle paste, mixed suspended matters, and other chemical mediums

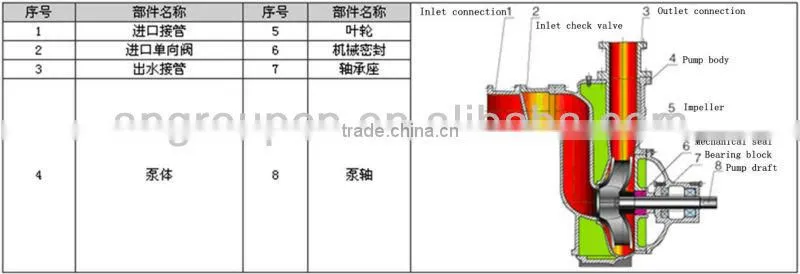

6.AZX self priming pump constructurer:

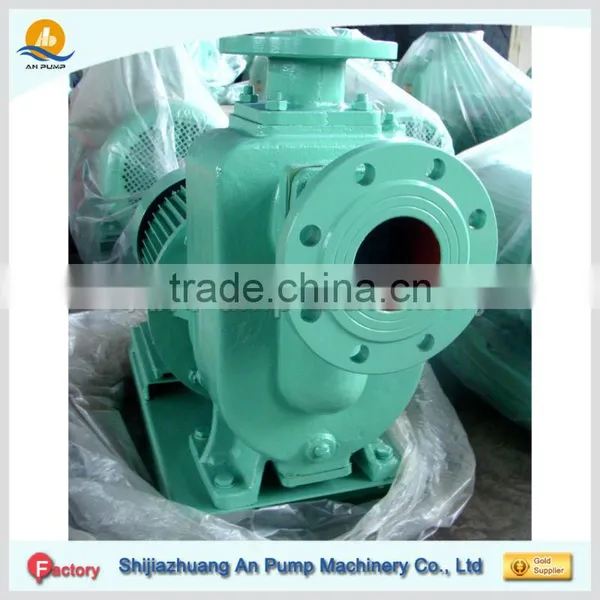

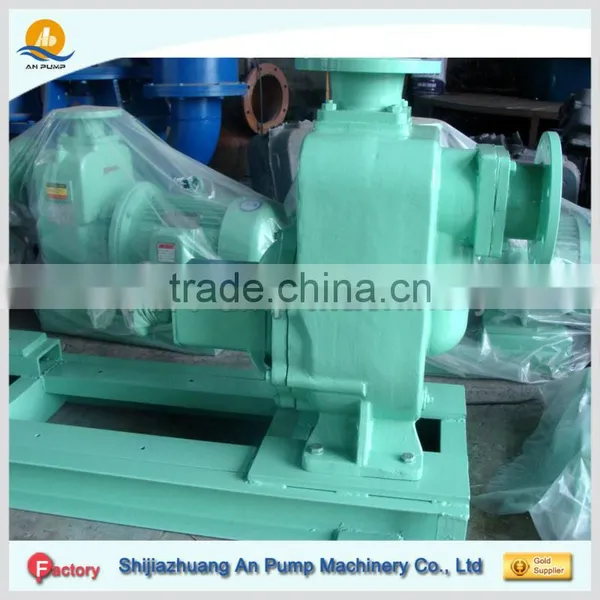

7.Our Product:

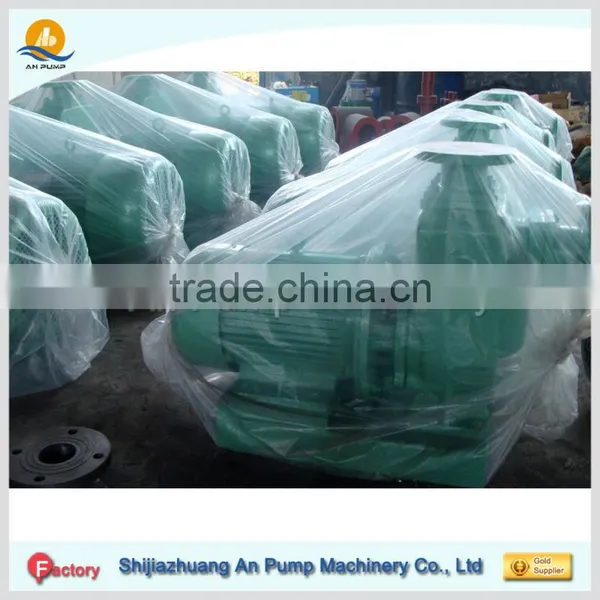

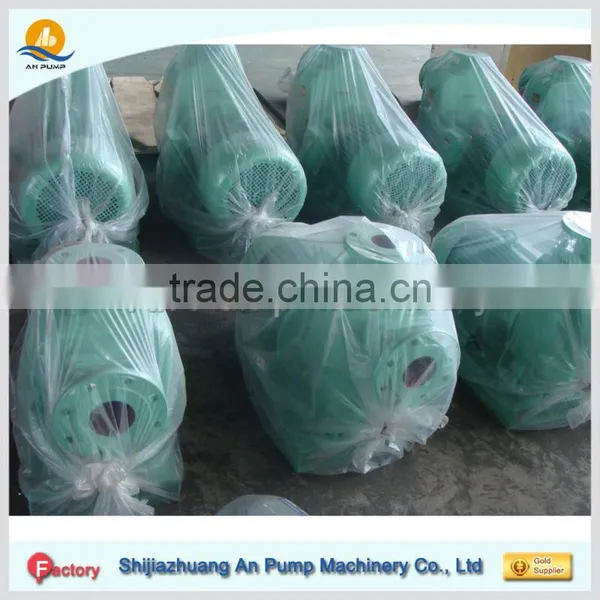

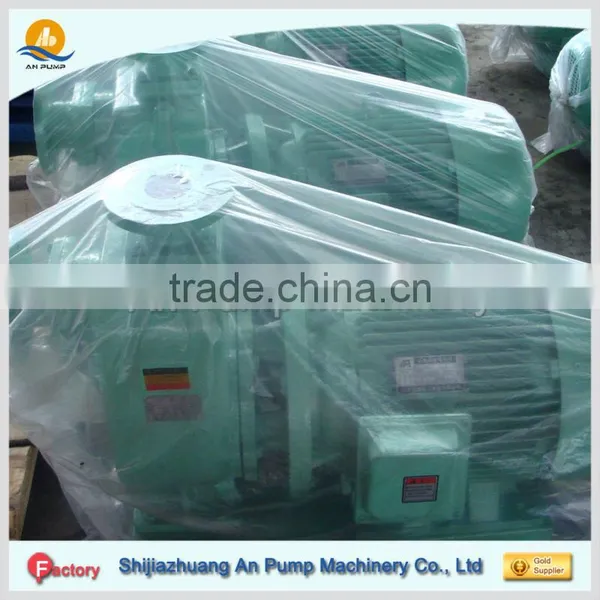

8.Produce Process:

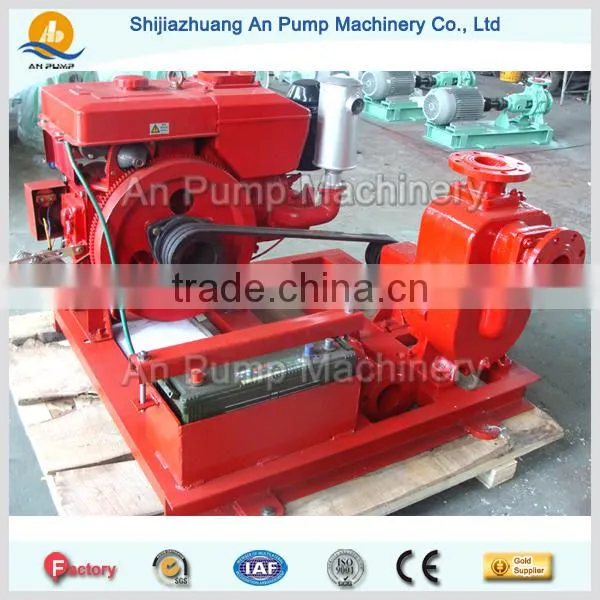

9.Other Products:
| End suction pump | Split casing pump | Multistage pump |
|
|
|
