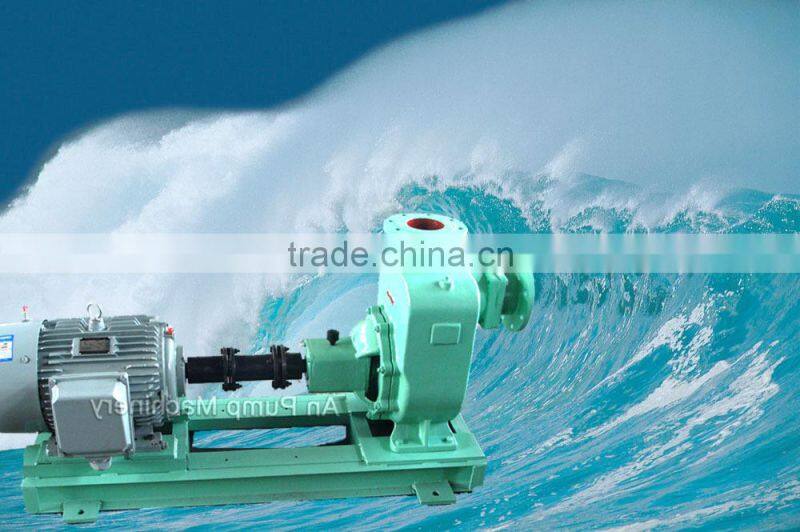

Self prime chinese electric waste oil suction pump manufacturers
An Pump Machinery is your Best Self Priming Pump Manufacturer
An Pump Machinery Co. ,Ltd is the self priming pump manufacturer with 50+ years experienced
Our pumps export to over 90 countries all over the world in mining, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc. click to more...
An Pump Machinery is your ISO certificated Pump Manufacturer
An Pump Machinery is also CE cerficated and ISO certificated Pump Manufacturer

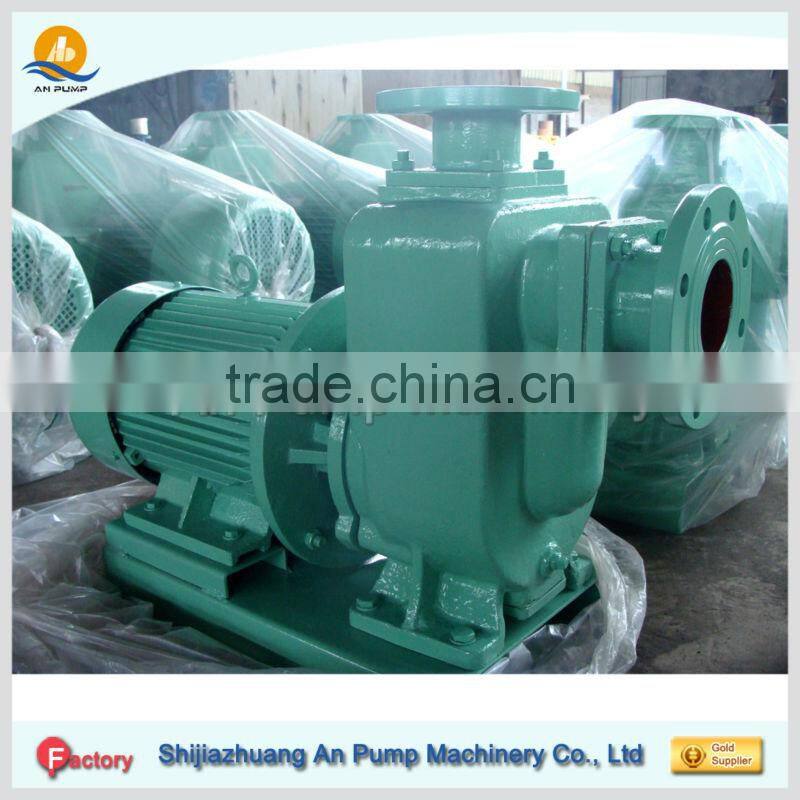

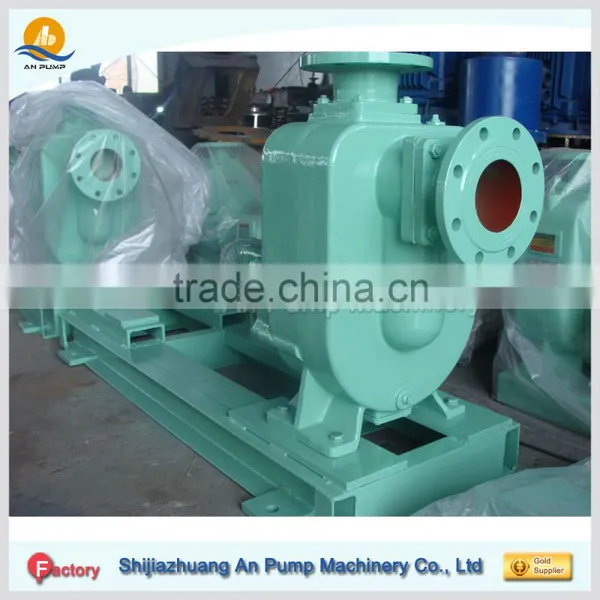

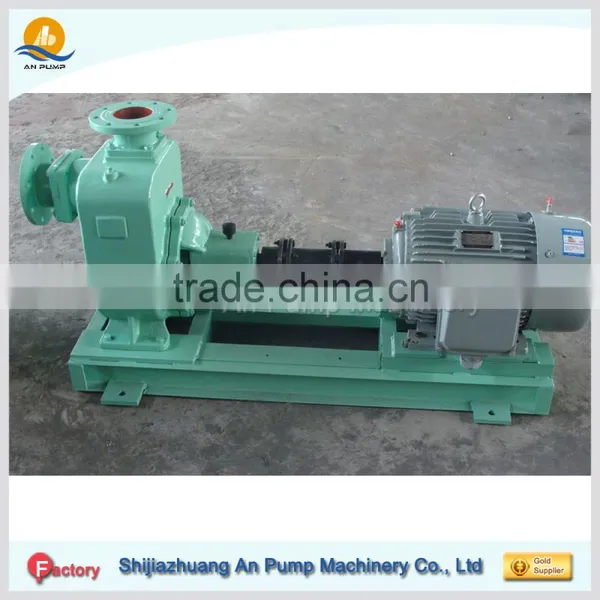

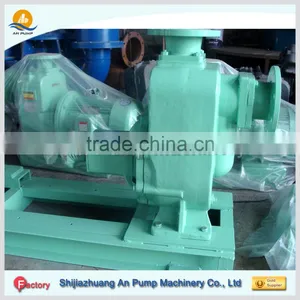

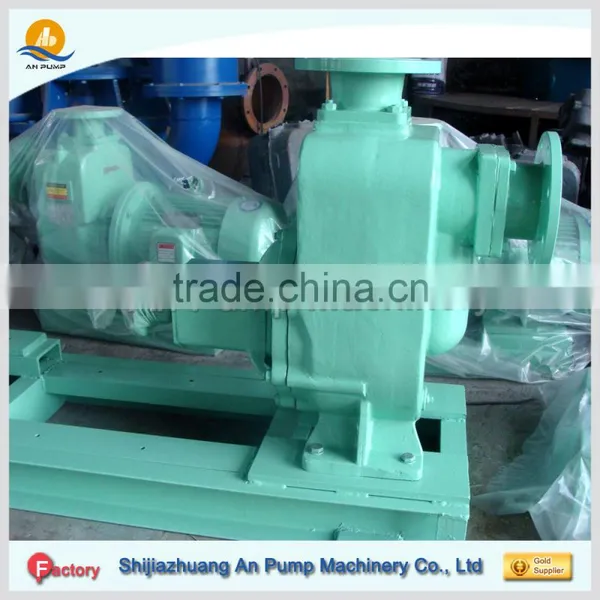

AZX Self prime chinese electric waste oil suction pump
Industrial water supply and drainage. |
AZX Self prime chinese electric waste oil suction pump
1. Outlet Diameter: 2''(50mm) to 12’’(300mm) |
2. Flow Rates: 3m3/h~600m3/h |
3. Head: 6m~75m |
4. Horsepower: 1HP~125HP |
5. N. W: 92KG~998KG |
6. G. W: 114KG~1066KG |
7. Solid Passing: 20.63mm~76.2mm |
8. Material: Cast iron, ductile iron, stainless steel, cast steel, aluminum, bronze |

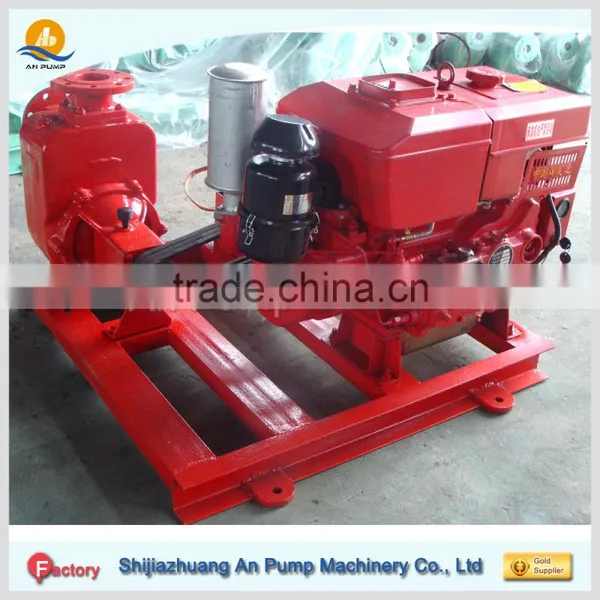

9. Diesel Driving: Water cooled or air cooled |
10. Method of connection: Self priming pumps are available as basic units or may be flex-coupled, V-belt driven or engine mounted. |
11. Drive Variation: Cummins, Deutz, Ricardo, Perkins or Chinese Diesel, Electric Motor |
12. Skid Mounted on Trailer: 2 wheels or 4 wheels trailer/trailor |
13. Package: Standard Wooden Case |
14. Certification: ISO,CE,SGS |
AZX Self prime chinese electric waste oil suction pump
Self prime chinese electric waste oil suction pump data sheet
| Pump Model | Capacity (m3/h) |
Head (m) |
Suction Height (m) |
peed (rpm) |
| 40AZX | 1-6.4 | 20-40 | 6.5 | 2900 |
| 50 AZX | 1-10 | 25-42 | 6.5 | 2900 |
| 65 AZX | 25-30 | 15-32 | 6 | 2900 |
| 80 AZX | 35-60 | 13-70 | 6 | 2900 |
| 100 AZX | 70-100 | 20-75 | 6 | 2900 |
| 150 AZX | 170 | 55-65 | 5 | 2900 |
| 200 AZX | 280-400 | 32-65 | 5 | 1450 |
| 250 AZX | 400-550 | 32-75 | 5 | 1450 |
| 300 AZX | 400-600 | 32-75 | 5 | 1450 |
Self prime chinese electric waste oil suction pump manufacturers features
Seal mechanical
Attractive design
Low noise, steady performance
No leakage
High concentricity of components
Easy installation, easy maintenance
1 |
coupling |
2 |
shaft |
3 |
bearing |
4 |
Mechanical seal |
5 |
Bearing body |
6 |
Pump casing |
7 |
Outlet base |
8 |
Inlet base |
9 |
Front seal ring |
10 |
impeller |
11 |
Rear cover |
12 |
Water deflector |
13 |
Filling port |
14 |
Liquid return port |
|
|
Standard wooden case packing of Self prime chinese electric waste oil suction pump
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
