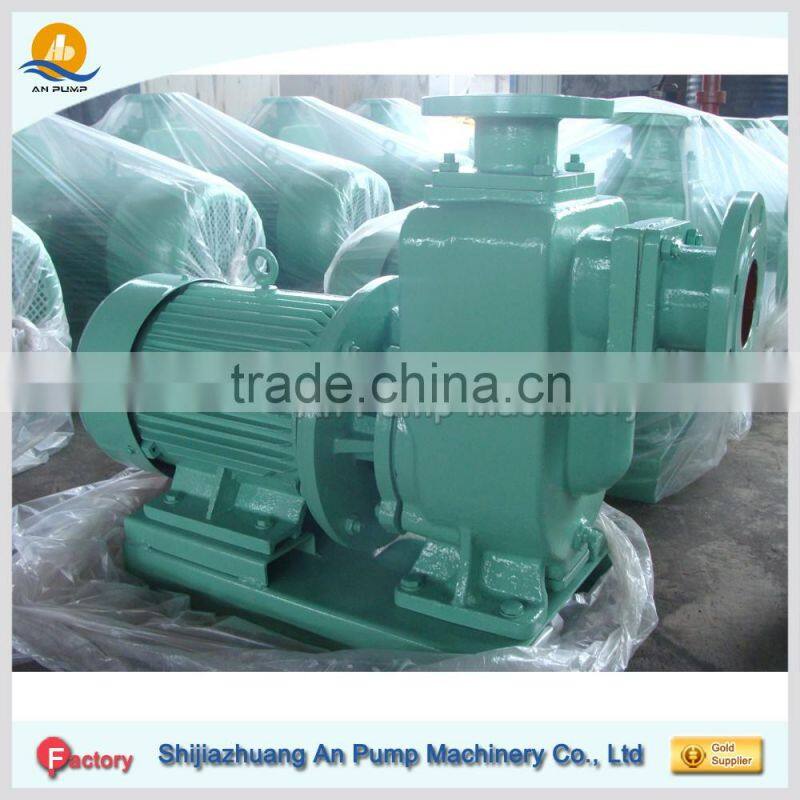

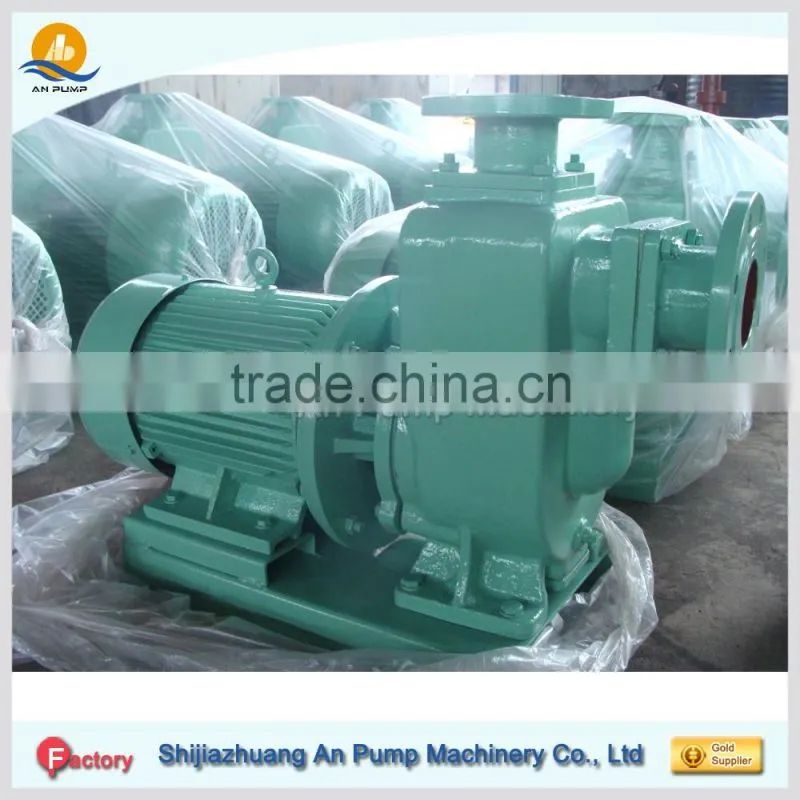

an Pump Close Coupled Centrifugal Self Priming Water Pump
Trash Centrifugal self priming pump
table non-clog sewage self-priming pump
2.Material:SS.bronze,cast iron
3.Size:1''-12''

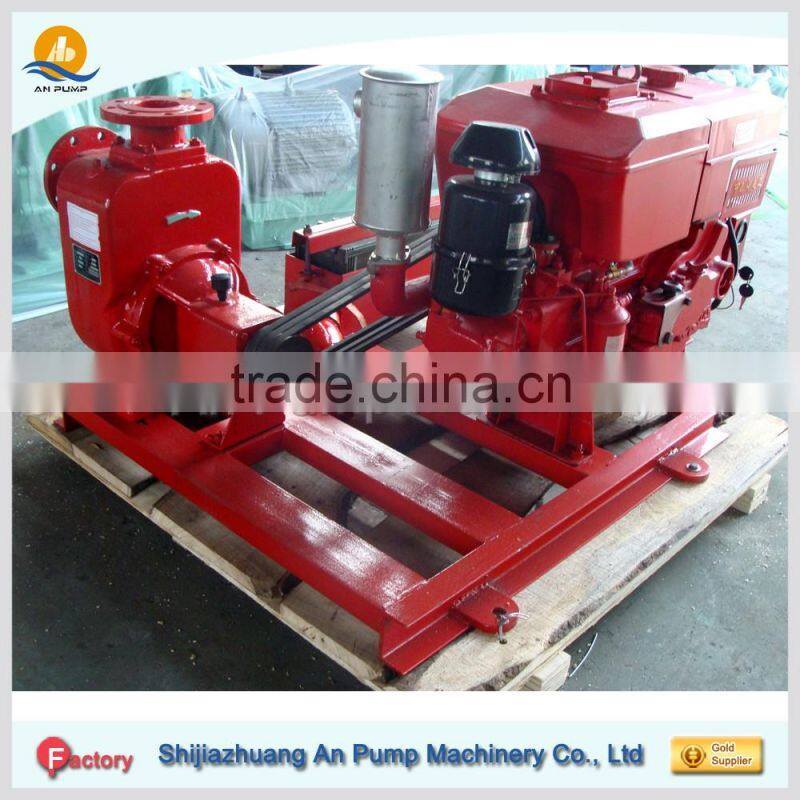

4.Drive:diesel engine,motor
Overview
QZX series selfpriming centrifugal pump is a new modified centrifugal pump which is developed on the basis of absorbing domestic and overseas advanced technology of the same product and combing many years design and manufacturing experience of our company .
It stands out the advantage of simple structure , convenient operation and maintenance , stable working , high efficiency , long life , good self priming performance etc. It need not bottom valve in the pipeline . It just needs to have amount of liquid in pump for self-priming before starting pump . So it predigest pipeline system and improves working condition .
Specification:
1. Outlet Diameter: 2''(50mm) to 12’’(300mm) |
2. Flow Rates: 8m3/h~1275m3/h(20GPM~5500GPM) |
3. Head: 6m~63m |
4. Horsepower: 1HP~125HP |
5. N. W: 92KG~998KG |
6. G. W: 114KG~1066KG |
7. Solid Passing: 20.63mm~76.2mm |
8. Material: Cast iron, ductile iron, stainless steel, cast steel, aluminum, bronze |
9. Diesel Driving: Water cooled or air cooled |
10. Method of connection: Self priming pumps are available as basic units or may be flex-coupled, V-belt driven or engine mounted. |
11. Drive Variation: Diesel engine , Electric Motor |
12. Skid Mounted on Trailer: 2 wheels or 4 wheels trailer/trailor |
13. Package: Standard Wooden Case |
14. Certification: ISO9001: 2000,CE |

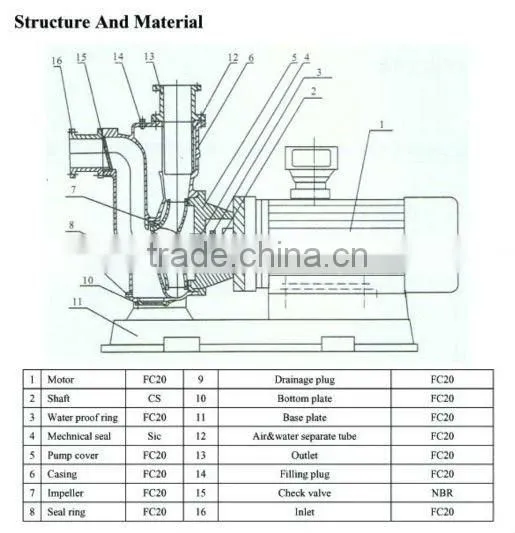

Pump Constructure and Material:
Features:
1) Cantilevered, horizontal, centrifugal, single stage slurry pump
2) Widely application: They are designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.
3) Long bearing life: The bearing assembly is with large diameter shaft and short overhang.
4) Wear resistant and anti-abrasion wet parts: The wet parts can be made of hard metal (24-28% Chrome alloy) or pressure molded rubber. They are completely interchangeable with each other. More materials are also available.
5) Easily replaceable liners: Liners are bolted to the casing.
6) Simple maintenance throat-bush: The mating face of the throat bush is tapered, so the wear is reduced and removal is simple.
7) Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.
8) High efficiency and high head design are also available.
9) Centrifugal seal, mechanical seal and packing seal are available.
Application:
Air conditioning plants
Building service
Fire Fighting systems
Irrigation / Sprinkler systems
Paper mills
Pharmaceuticals
Sugar Mills
Vegetable Oil Mills
Water / Effluent Treatment
Water supply
General Purpose Requirements
Standard wooden case packing of non-clogging self prming fire equipment
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
Shijiazhuang An Pump Machinery Co.,Ltd is a manufacturer and trading enterprise, which is mainly
engaged in pump designing, manufacturing, selling and service. We develop the international trading business
of mining equipment, slurry pumps, and water pumps according the wide customer resource, comprehensive
technology and reasonable staffing.
An pump machinery’s main products includes: slurry pump, desulfurization pump, gravel pump, mud pump,
sewage pump, submersible pump, submersible sewage pump, impurity pump, large capacity split casing pump,
high head multistage water pump,end suction pump, self priming pump, pump parts and ancillary equipment.
which can satisfy different kinds of demands.
