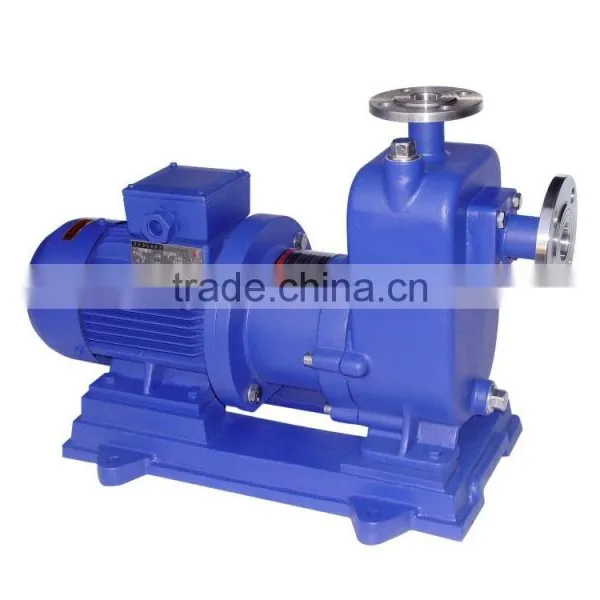

3 Inches Best Quality Self Priming Pump
diesel engine self priming pump Specification
1. Outlet Diameter: 2''(50mm) to 12’’(300mm)
2. Flow Rates: 8m3/h~1275m3/h(20GPM~5500GPM)
3. Head: 6m~63m
4. Horsepower: 1HP~125HP
5. N. W: 92KG~998KG
6. G. W: 114KG~1066KG
7. Solid Passing: 20.63mm~76.2mm
8. Material: Cast iron, ductile iron, stainless steel, cast steel, aluminum, bronze
9. Diesel Driving: Water cooled or air cooled
10. Method of connection: Self priming pumps are available as basic units or may be flex-coupled, V-belt driven or engine mounted.
11. Drive Variation: Cummins, Deutz, Ricardo, Perkins or Chinese Diesel, Electric Motor
12. Skid Mounted on Trailer: 2 wheels or 4 wheels trailer/trailor
13. Package: Exporting plywood case
diesel engine self priming pump performance curve

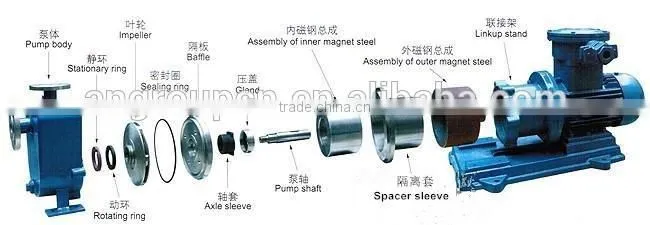

diesel engine self priming pump constructure
1 |
coupling |
2 |
shaft |
3 |
bearing |
4 |
Mechanical seal |
5 |
Bearing body |
6 |
Pump casing |
7 |
Outlet base |
8 |
Inlet base |
9 |
Front seal ring |
10 |
impeller |
11 |
Rear cover |
12 |
Water deflector |
13 |
Filling port |
14 |
Liquid return port |
|
|
1. Municipal project, sewage project, instruction project;
2. Transporatation of sewage of uptown;
3. Sewage transportation in hospital, hotel, slaughter house, fish breeding;
4. Classification of municipal sewage treatment factory and concentrate treatment systems engineering;
5. Transportation of the factory and contaminated water;
6. Sewage and deposit of water purifying system;
7. Industrial sewage of light industry, paper mill, textile, food processing plant, chemical industry, electric utility, deep mines, etc;
8. Wine and sugar industry;
Shijiazhuang An Pump Machinery Co.,Ltd is a manufacturer and trading enterprise, which is mainly engaged in pump designing, manufacturing, selling and service. We develop the international trading business of mining quipment, slurry pumps, and water pumps according the wide customer resource, comprehensive technology and reasonable staffing.
An pump machinery’s main products includes: slurry pump, desulfurization pump, gravel pump, mud pump,
sewage pump, submersible pump, submersible sewage pump, impurity pump, large capacity split casing pump,
high head multistage water pump,end suction pump, self priming pump, pump parts and ancillary equipment.
which can satisfy different kinds of demands.
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
