Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > Standard Single Casing Sand Gravel Pump

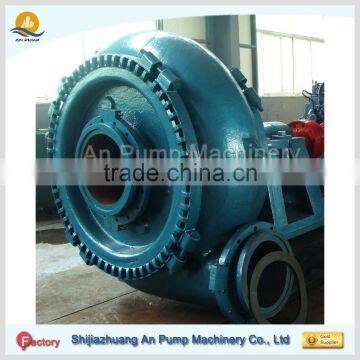

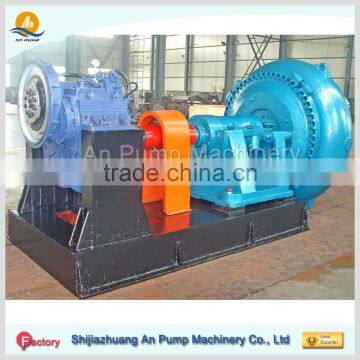

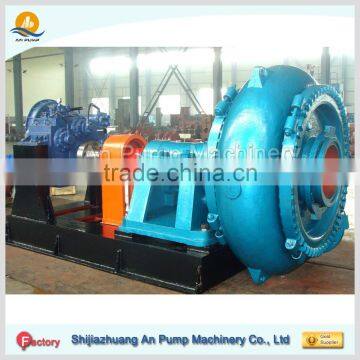

Standard Single Casing Sand Gravel Pump

Name: Standard Single Casing Sand Gravel Pump
Brand: AN PUMP
SKU: 141181056
Availability: InStock

Standard Single Casing Sand Gravel Pump thumbnail-1

Standard Single Casing Sand Gravel Pump thumbnail-2

Standard Single Casing Sand Gravel Pump thumbnail-3

Standard Single Casing Sand Gravel Pump photo-1

Standard Single Casing Sand Gravel Pump photo-2

Standard Single Casing Sand Gravel Pump photo-3

US$ 900 - 16,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

AN PUMP

Model Number:

AMG gravel pump

Contact Supplier Request Quote Chat Now

Shijiazhuang An Pump Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Qingdao Shanghai Shenzhen etc any is ok

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name AN PUMP

Model Number AMG gravel pump

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Other, dredging, slurry transfer,mining, power plant etc

Power Electric

Standard or Nonstandard Standard

Fuel Other, electric, diesel engine, gasoline engine

Pressure Other, standard, Max 90 m

Application Other, sand grave dredging, mining, sewage etc

Standard Single Casing Sand Gravel Pump

Pump Application

Cyclone Feed
Slag Granulation
Suction Hopper Dredging
Dredging
Barge Loading
Mill Discharge
Sand Reclamation
Sugar Beet

Pump Description

Standard Single Casing Sand Gravel Pump

AMG/AMGH Large flow high Cr material sand gravel dredging pump , construction of this pump is of single casing connected by means of clamp bands and wide wet passage. The wet parts are made of Ni hard and high chromium abrasion resistance alloys.

The discharge direction of pump can be oriented in any direction of 360 degrees. This type of pump possesses the advantages of easy installation and operation, good performance of NPSH and abrasion resistance.

Drive types includes V-belts driven, flexible coupling driven, gear box driven, hydraulic coupler driven, variable frequency driven, thyristor speed control etc.

AMG/AMGH gravel pump are designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable for delivering slurries in mining, explosive sludge in metal melting, grudging in dredger and course of river, and other fields. Type AMGH pumps are of higher head ones

PUMP STRUCTURE

Pump Performance

Standard Single Casing Sand Gravel Pump

Model	Outlet Dia (mm)	Flow (m3/h)	Head (m)	Max Power (kw)	Max Solid (mm)
6/4AMG	100	36-250	7-56	60	82
8/6AMG	150	180-540	12-52	120	120
10/8AMG	200	180-820	12-56	560	178
12/10AMG	250	360-1200	12-60	600	220
14/12G-AMG	300	700-2700	8-70	600	241
10/8F-AMGH	200	50-900	20-90	560	180
12/10G-AMGH	250	500-2000	20-80	600	210
16/14TU-AMGH	350	1000-2800	20-80	1200	230

FAQ

1. Q: Are you a trading company or manufacture?

A: An Pump Machinery Co., Ltd is a real large professional manufacturer more than 32 years, in China,

produce with our own factory.

2. Q: what's your factory workshops ?

A: My factory produce include casting, mechanical process, lathe process, heat treatment, assembly,

and test etc.

Warmly welcome to visit & test my factory any time.

3. Q: How about your gravel pump price?

A: We are sure our price is factory price, and insist hig quality for our long term cooperation.

4. Q: What is your AMG series Standard Single Casing Sand Gravel Pump material ?
A: AMG series gravel sand dredging pump material high CrMoNi alloy, super abrasive-resistant metal.

Shaft material is stainless steel alloy.

5.Q: What kind of liquid can your AMG Standard Single Casing Sand Gravel Pump transfer?
A: Liquid range: water+ sand, solid, sludge, gravel, stones etc.

6. Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has 15~30 QC.

7. Q: Is it easy for customers to change the parts by myself ?
A: yes, the structure is simple ,customers can change it very easily.

We will also supply you maintenance tools for free.

8. Q: How to do if the pump or parts have operation problem within your warranty?
A: Tell me details timely, and show me pictures, we will send you solution at once without any hesistation.

9. Q: Can you install electric motor or diesel engine with the pump for us ?
A: yes, we can, it's no problem, we are experienced in this .

10: Q: .we don't know which pump model we need ,can you help us ?
A: yes, please tell me your detail requirements, include liquid, flow rate, head etc,

my engineers teal will calculate & select most suitable pump model for you, offer pump solution for you.

Factory

FACTORY OF AN PUMP MACHINERY

QA&QC

QA&QC
