wear resistant dredge sand pump for rive saltwater sea
wear resistant dredge sand pump for rive saltwater sea specification
gasoline gravel pump(ISO9001)
1.Horizontal centrifugal Pump
2.Size: 25mm-450mm
3.Capacity: max 3400 m3/hr
4.Head: max 120m
5.Particle Size: max 260m
6.Concentration: To 60%
7.Material: metal A05, A07, A33, A49 etc
Shijiazhuang An Pump Machinery Co., Ltd the main pump products including slurry pump, desulfurization pump, gravel pump, sewage pump, impurity pump, split pump with large capacity, multistage pump with hjgh lift, centrifugal water pump and self priming pump, could meet various requirements of all the customers.
wear resistant dredge sand pump for rive saltwater sea details
1. Horizontal, cantilevered, centrifugal, single stage slurry pump
2.Long bearing life: The bearing assembly is with large diameter shaft and short overhang.
3. Wear resistant and anti-abrasion wet parts: A05, A07, A33, A49 and rubber etc. They are completely interchangeable with each other
4. Easily replaceable liners, Liners are bolted to the casing.
5. Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.
6 Discharge direction can be positioned at intervals of 360 degrees.
7. Simple maintenance throat-bush: the mating face of the throat bush is tapered, so the wear is reduced and removal is simple.
8. Sealing type: pcking seal,impeller sealing and mechanical seal.
9. Widely application: They are designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.
10.Certification:ISO,CE
11.Welcome OEM

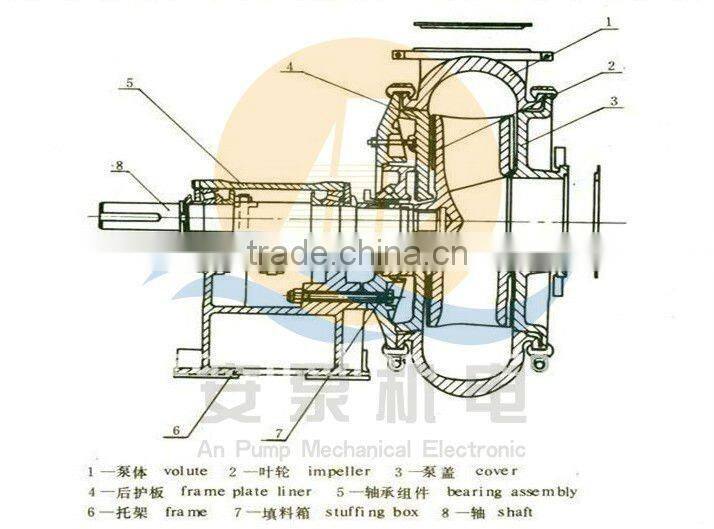

wear resistant dredge sand pump for rive saltwater sea structure
wear resistant dredge sand pump for rive saltwater sea parameters
Pump Model |
AMG Series Gravel Pump |
Impeller |
|||||
Allowable |
Clear Water Performance |
Dia. |
|||||
Max.Power |
Capacity Q |
Head |
Speed |
Eff. |
NPSH |
||
m3/h |
H(m) |
n(r/min) |
η% |
(m) |
|||
6/4AMG |
60 |
36-250 |
5-52 |
600-1400 |
58 |
2.5-3.5 |
378 |
8/6AMG |
120 |
126-576 |
6-45 |
800-1400 |
60 |
3-4.5 |
378 |
10/8AMG |
560 |
216-936 |
8-52 |
500-1000 |
65 |
3-7.5 |
533 |
10/8AMG |
560 |
180-1440 |
24-80 |
500-950 |
72 |
2.5-5 |
711 |
12/10AMG |
600 |
360-1440 |
10-60 |
400-850 |
65 |
1.5-4.5 |
667 |
12/10AMG |
1200 |
288-2808 |
16-80 |
350-700 |
73 |
2-10 |
950 |
14/12AMG |
1200 |
576-3024 |
8-70 |
300-700 |
68 |
2-8 |
864 |
14/12AMG |
600 |
720-3600 |
18-44 |
300-500 |
70 |
3-9 |
1016 |
16/14AMG |
1200 |
324-3600 |
26-70 |
300-500 |
72 |
3-6 |
1270 |
18/16AMG |
1200 |
720-4320 |
12-48 |
250-500 |
72 |
3-6 |
1067 |
20/18AMG |
1200 |
1080-5400 |
18-65 |
200-400 |
68 |
3-6 |
1270 |
wear resistant dredge sand pump for rive saltwater sea advantages
Pecial impellers designed to prevent damage when delivery solids
The impeller and volute made of high chrome alloy
Specialized Test Equipment
Anti-rust treatment casting
CE, ISO, SGS certification
wear resistant dredge sand pump for rive saltwater sea application

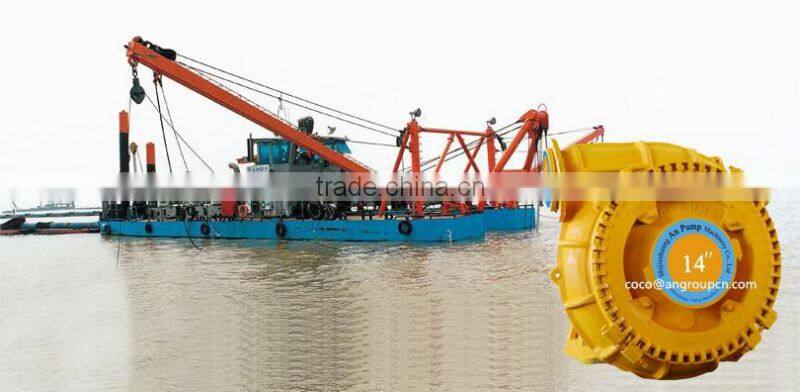

(1).Absorb the sand in the river, lake and sea.
(2).Absorb the silt and sand in the river, lake, sea, reservoir, pound, electric power plant .
(3).Absorb the slurry of stone processing plant.
(4).Absorb the slurry in the deep well.
(5).Absord and delivery extremely abrasive slurries
(6).Absord and continue delivery extremely corrosive liquid

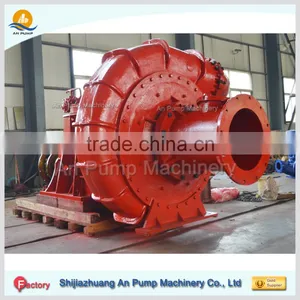

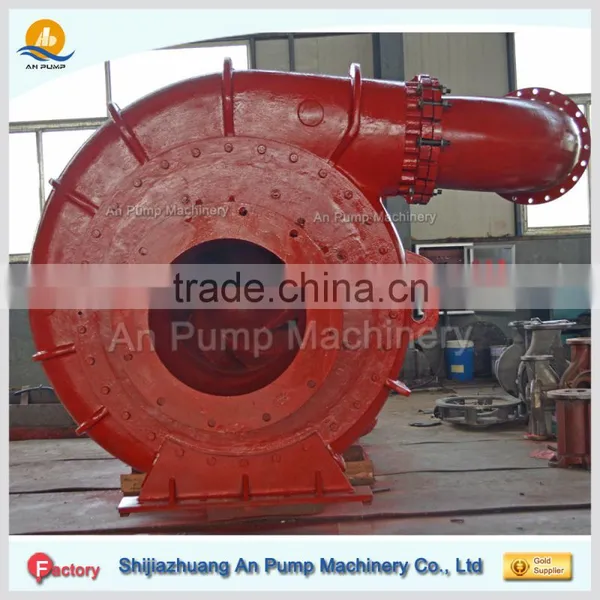

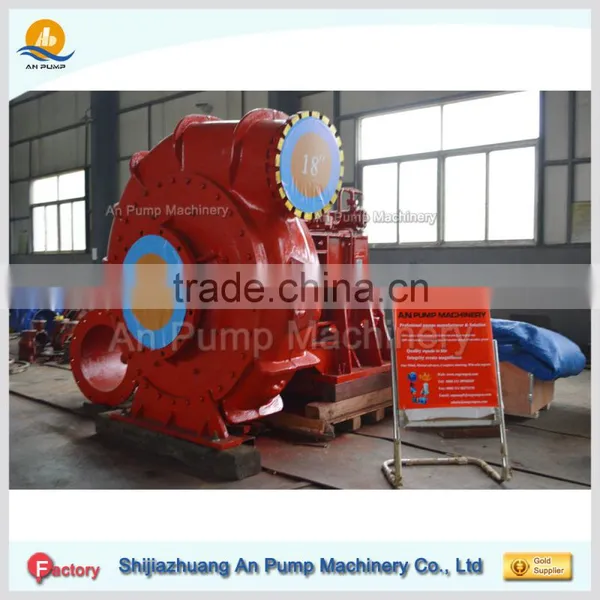

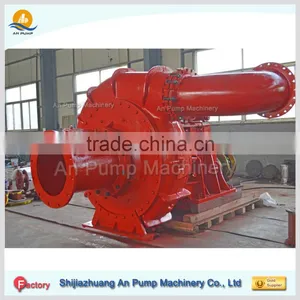

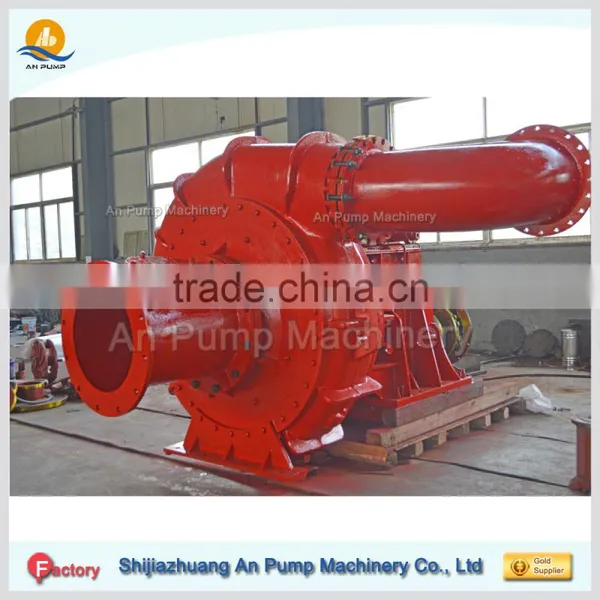

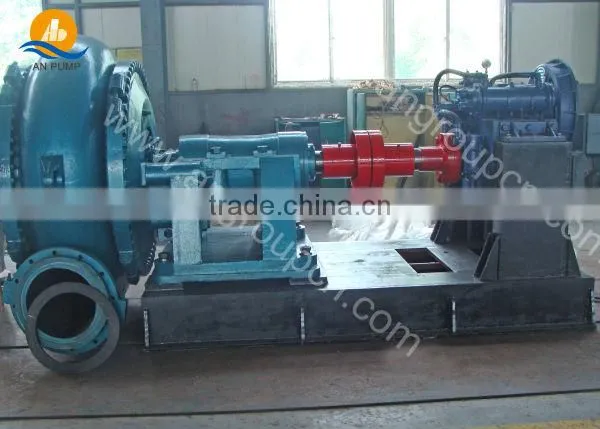

wear resistant dredge sand pump for rive saltwater sea photoes

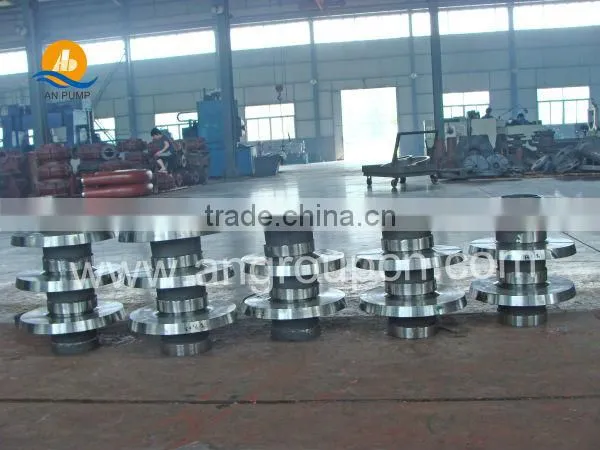

hydraulic sand pump dredger spare parts
wear resistant dredge sand pump for rive saltwater sea packing and shipping
Our Services
1. Offer Large capacity pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
