Centrifugal Gravel and Sand dredger suck sand dredger
Sand dredger Pump Specification:
Centrifugal Gravel and Sand dredger suck sand pump(ISO9001)
1.Horizontal centrifugal Pump
2.Size: 25mm-450mm
3.Capacity: max 3400 m3/hr
4.Head: max 120m
5.Particle Size: max 260m
Sand dredger Pump Specification:
Size (discharge): 1" to 18" (25 mm - 450 mm)
Capacity: To 3400 m3/hr
Head: T0 120 m
Particle Size: To 260 mm
Concentration: To 60%
Material: metal A05, A07, A33, A49 etc
Sand dredger pump Detailed specification:
1. Horizontal, cantilevered, centrifugal, single stage slurry pump
2.Long bearing life: The bearing assembly is with large diameter shaft and short overhang.
3. Wear resistant and anti-abrasion wet parts: A05, A07, A33, A49 and rubber etc. They are completely interchangeable with each other
4. Easily replaceable liners, Liners are bolted to the casing.
5. Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.
6 Discharge direction can be positioned at intervals of 360 degrees.
7. Simple maintenance throat-bush: the mating face of the throat bush is tapered, so the wear is reduced and removal is simple.
8. Sealing type: pcking seal,impeller sealing and mechanical seal.
9. Widely application: They are designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.
10.Certification:ISO,CE
11.Welcome OEM
Sand dredger Pump constructure
Sand dredger Pump Performance parameters
Pump Model |
AMG Series Gravel Pump |
Impeller |
|||||
Allowable |
Clear Water Performance |
Dia. |
|||||
Max.Power |
Capacity Q |
Head |
Speed |
Eff. |
NPSH |
||
m3/h |
H(m) |
n(r/min) |
η% |
(m) |
|||
6/4AMG |
60 |
36-250 |
5-52 |
600-1400 |
58 |
2.5-3.5 |
378 |
8/6AMG |
120 |
126-576 |
6-45 |
800-1400 |
60 |
3-4.5 |
378 |
10/8AMG |
560 |
216-936 |
8-52 |
500-1000 |
65 |
3-7.5 |
533 |
10/8AMG |
560 |
180-1440 |
24-80 |
500-950 |
72 |
2.5-5 |
711 |
12/10AMG |
600 |
360-1440 |
10-60 |
400-850 |
65 |
1.5-4.5 |
667 |
12/10AMG |
1200 |
288-2808 |
16-80 |
350-700 |
73 |
2-10 |
950 |
14/12AMG |
1200 |
576-3024 |
8-70 |
300-700 |
68 |
2-8 |
864 |
14/12AMG |
600 |
720-3600 |
18-44 |
300-500 |
70 |
3-9 |
1016 |
16/14AMG |
1200 |
324-3600 |
26-70 |
300-500 |
72 |
3-6 |
1270 |
18/16AMG |
1200 |
720-4320 |
12-48 |
250-500 |
72 |
3-6 |
1067 |
20/18AMG |
1200 |
1080-5400 |
18-65 |
200-400 |
68 |
3-6 |
1270 |
Sand dredger Pump Advantages
Pecial impellers designed to prevent damage when delivery solids
The impeller and volute made of high chrome alloy
Specialized Test Equipment
Anti-rust treatment casting
CE, ISO, SGS certification
Sand dredger Pump Application
(1).Absorb the sand in the river, lake and sea.
(2).Absorb the silt and sand in the river, lake, sea, reservoir, pound, electric power plant .
(3).Absorb the slurry of stone processing plant.
(4).Absorb the slurry in the deep well.
(5).Absord and delivery extremely abrasive slurries
(6).Absord and continue delivery extremely corrosive liquid

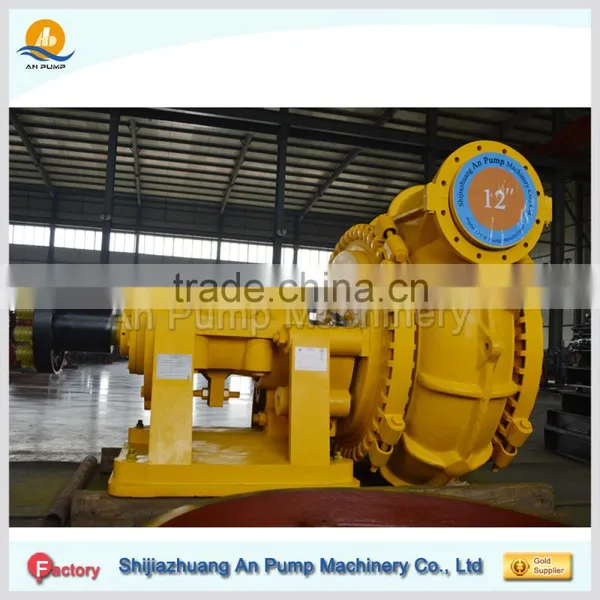

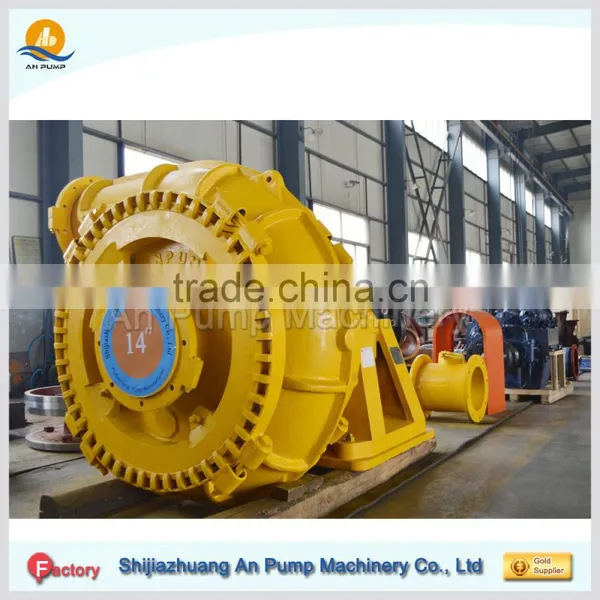

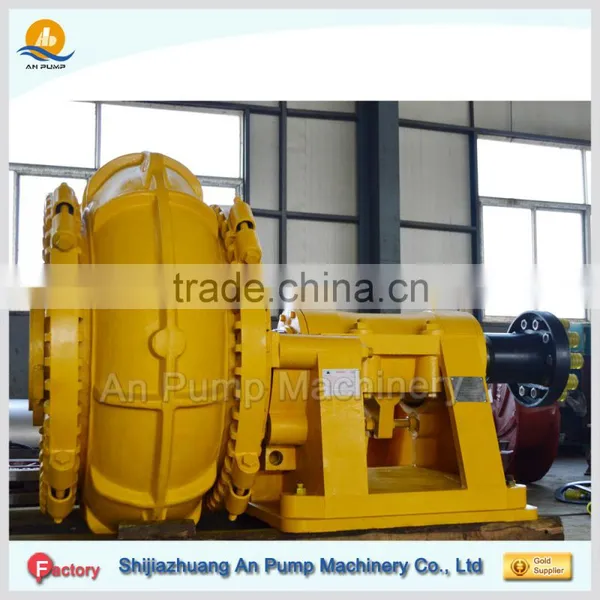

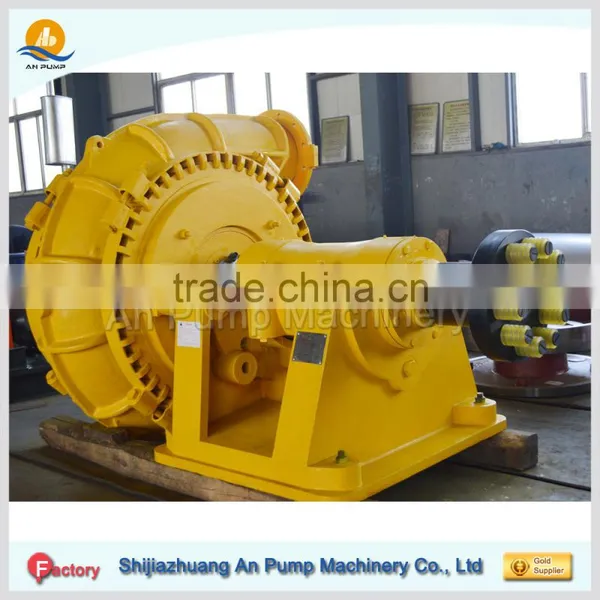

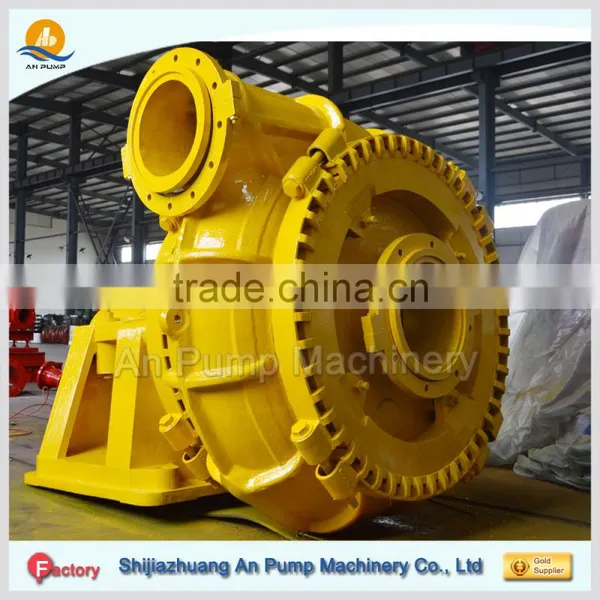

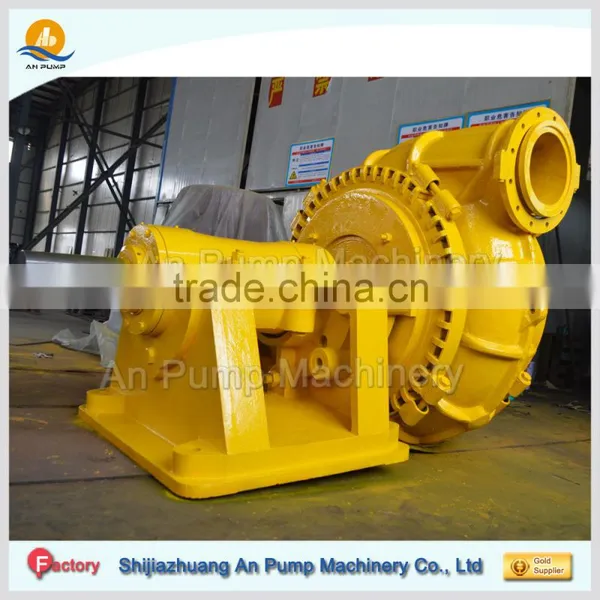

Sand dredger Pump Product Photo:
An Pump Machinery is your Best Sand Suck Pump Manufacturer
An Pump Machinery Co. ,Ltd is the sand suck pump manufacturer with 50+ years experienced
Our pumps export to over 90 countries all over the world in mining, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc. click to more...
An pump machinery’s main products includes: slurry pump, desulfurization pump, gravel pump, mud pump,
sewage pump, submersible pump, submersible sewage pump, impurity pump, large capacity split casing pump,
high head multistage water pump,end suction pump, self priming pump, pump parts and ancillary equipment.
which can satisfy different kinds of demands.
