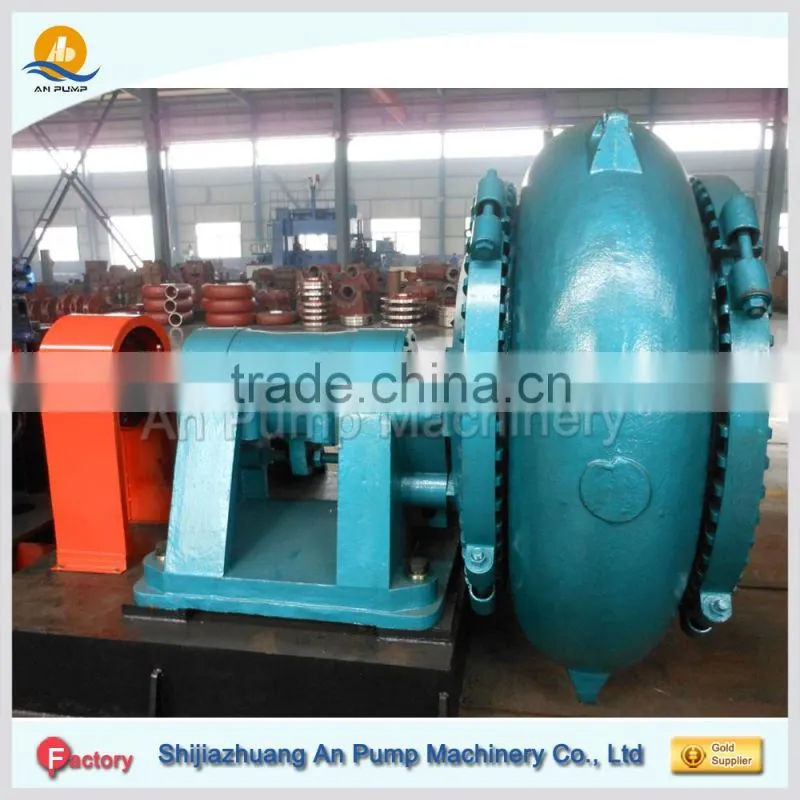

G Type River Sea Dredging Sand Gravel Pump
AMG/AMGH G Type River Sea Dredging Sand Gravel Pump, Construction of this pump is of single casing connected by means of clamp bands and wide wet passage. The wet parts are made of Ni hard and high chromium abrasion resistance alloys.
The discharge direction of pump can be oriented in any direction of 360 degrees.
This type of pump possesses the advantages of easy installation and operation, good performance of NPSH and abrasion resistance

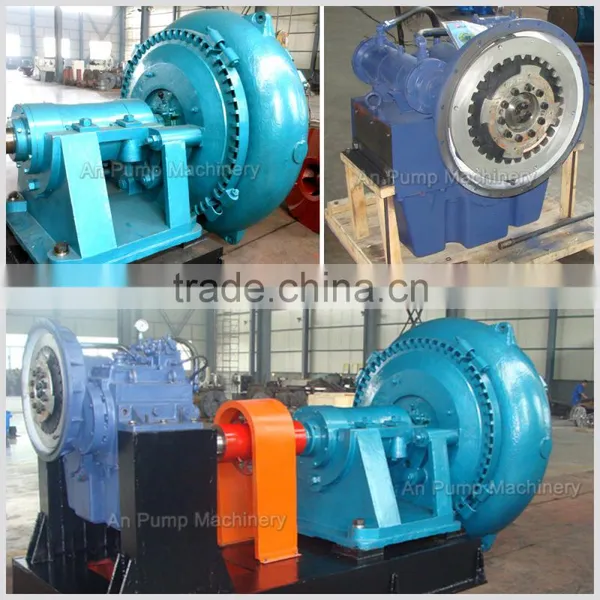

Drive types includes V-belts driven, flexible coupling driven, gear box driven, hydraulic coupler driven, variable frequency driven, thyristor speed control etc.
AMG/AMGH gravel mud pump are designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable for delivering slurries
in mining, explosive sludge in metal melting, grudging in dredger and course of river, and other fields. Type AMGH pumps are of high head ones
General for G Type River Sea Dredging Sand Gravel Pump
AMG/AMGH river dredge sand pumps.
Construction of this pump is of single casing connected by means of clamp bands and wide wet passage.
The wet parts are made of Ni hard and high chromium abrasion resistance alloys.
The discharge direction of sand pump can be oriented in any direction of 360 degrees.
This type of pump possesses the advantages of easy installation and operation, good performance of NPSH and abrasion resistance.
Drive types includes:
V-belts driven, flexible coupling driven, gear box driven, hydraulic coupler driven, variable frequency driven, thyristor speed control etc.
AMG/AMGH sand pump is designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable for delivering slurry
in mining, explosive sludge in metal melting, grudging in dredger and course of river, and other fields. Type AMGH pumps are of high head ones
Structural Features of G Type River Sea Dredging Sand Gravel Pump
- Single stage, single suction, horizontal centrifugal sand pump
- Wet parts such as casing, impeller, liner plate in anti-abrasion high chrome cast iron alloy.
- Horizontal-central-split container bracket easy for maintaining
- Packing or mechanical seal
- Protective shell surrounding the casing ideal for heavy duty
- Hydraulic optimization design, high-efficient, energy-saving and stable operation
Applications for G Type River Sea Dredging Sand Gravel Pump:
Heavy duty Mining Process Coal Preparation Plant
Cyclone Feeds Mineral Processing
Tailings Mill Grinding
Slurry Feeding System Heavy Refuse Removal
Pulp And Paper Dredging
Abrasive Slurry High Density Slurries
Ash Handling Industrial Processing
G Type River Sea Dredging Sand Gravel Pump performance:
| Model | Outlet Dia (mm) |
Speed (rpm) |
Flow (m3/h) |
Head (m) |
Max Power (kw) |
Max Solid (mm) |
| 6/4D-AMG | 100 | 600-1400 | 36-250 | 7-56 | 60 | 82 |
| 8/6E-AMG | 150 | 800-1400 | 180-540 | 12-52 | 120 | 120 |
| 10/8F-AMG | 200 | 500-1000 | 180-820 | 12-56 | 560 | 178 |
| 12/10G-AMG | 250 | 400-850 | 360-1200 | 12-60 | 600 | 220 |
| 14/12G-AMG | 300 | 300-700 | 700-2700 | 8-70 | 600 | 241 |
| 14/12TU-AMG | 300 | 300-700 | 700-2700 | 8-70 | 1200 | 241 |
| 10/8F-AMGH | 200 | 500-1100 | 50-900 | 20-90 | 560 | 180 |
| 12/10G-AMGH | 250 | 350-700 | 500-2000 | 20-80 | 600 | 210 |
| 16/14TU-AMGH | 350 | 250-500 | 1000-2800 | 20-80 | 1200 | 230 |
RFQ:
Tips for G Type River Sea Dredging Sand Gravel Pump installation
Please take note as below when install the sand pump:
1. The preformed hole on the foundation should be poured as the pump installation drawing.
2. The installation level should meet the demand of the allowed vacuum suction height. The foundation should be in horizontal and stable condition, to make sure the rotation of the driver machinery same with the pump in the direction.
3. When connect by coupling, must make sure the pump and driver shaft center should be in a straight line.
4. If belt connection, the shaft center should be in parallel.
5. The sand pump suction pipe should be sealed well, and try to less the quantity of the elbow and check valve. When fill water, exhausted the air. It should be no any air when operate. We need to keep the suction pipe slopes up slightly, and then connect with the pump inlet.
