Gravel Sand Pump With Best Price
US$ 500 - 6,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
An Pump
Model Number:
AMG
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin shanghai shenzhen qingdao etc any port of China is ok
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sand Gravel Pump Marine Dredger Mud PumpUS$ 500 - 6,000MOQ: 1 Set -
An Pump Machinery 33 Year Facoty Centrifugal Sand Gravel PumpsUS$ 500 - 6,000MOQ: 1 Set
-
Centrifugal Sand Dredger Sand and Gravel PumpUS$ 600 - 18,000MOQ: 1 Set
-
AMG Sand and Gravel PumpUS$ 500 - 6,000MOQ: 1 Set
-
High Efficiency Energy Saving Sand Gravel PumpUS$ 500 - 6,000MOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
An Pump
Model Number
AMG
Theory
Centrifugal Pump
Structure
Single-stage Pump
Usage
Other, slurry,mine,coal etc
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, diesel
Pressure
Other, standard
Application
Other, slurry,mine,coal,glod
AMG Sand and Gravel Pump
1.AMG Sand & Gravel Pump
AMG Series Gravel pump mainly used for continuous conveying of high abrasive material which contain big solids, suitable for dredger dredging, absorption of gravel, dredging river, mining and metal smelting slag conveying etc.

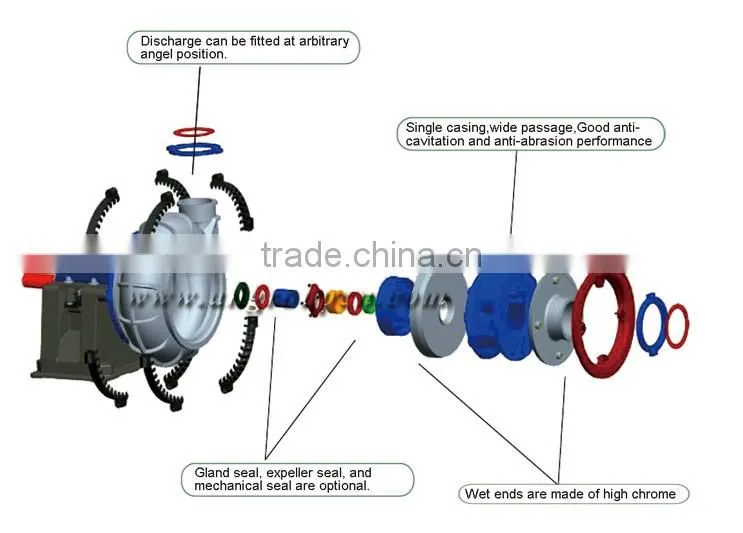

The discharge direction can be oriented in any direction of 360 degrees, easy installation and operation.
2.AMG Sand & Gravel Pump Feature
1. AMG Sand and Gravel pumps are horizontal centrifugal pumps, adopt special clamps clip tight pump body and pump cover. The discharge direction can be oriented in any direction of 360 degrees, easy installation and operation.
2. Bearing adopts cylindrical structure, easy for adjust the gap between impeller and pump body. It can be entirety dismantled when maintenance. Bearing lubricated by grease.
3. Compare with AM slurry pump, the sand gravel pump has spacious flow channel, better cavitation performance, much efficient, smaller hydraulic loss, also much more resistant to abrasion, high efficiency operation, can satisfy many kinds of bad transportation conditions.
4. Driving type mainly have V belt drive, elastic coupling drive, gear reducer drive, hydraulic coupling drive, variable frequency drive, thyristor speed control etc.
5. Dig deep advantage, good dig deep effect within 30 meters, maximum digging deep 40-50meters.
6. Using a variety of speed and modifications to make pump running under best condition. Long service life, high efficiency which can meet many poor transport conditions.
3.AMG Sand & Gravel Pump Application
(1)Sand and Gravel
The Heavy Duty Gravel Pump is designed for higher head duties such as cyclone feed, long distance pipelines and high static discharge heads.
The Heavy Duty Dredge Pump, is specifically designed for low head duties such as hopper dredging and barge loading.
(2)Sugar Beet & Other Root Vegetables
With special impellers designed to prevent damage to the solids the Dredge pump is widely used for handling Sugar Beet and other vegetable products
(3)Slag Granulation
Low NPSH requirements and robust design make the Dredge and Gravel pumps suitable for applications on slurries with higher than normal temperatures.
(4)Tunneling
Severe space limitations and tough operating conditions are normal in tunneling applications. The Gravel pump’s compact design and optional impact resistant cast steel components make it ideally suited for the varied sub soils and long tunnel lengths that require a pump capable of multi staging on a high flow, high pressure, often surging application.
More:
Heavy Mining Discharge
Explosive Sludge In Metal Smelting
River And Pond Dredging
Sand Excavation
Coal Washing
Power Plant
Mineral Processing Plants
Larger Particle Or Low NPSHA Applications
4.AMG Sand & Gravel Pump Materials
The AMG Sand & Gravel Pump is the heavy duty pump special designed for dredger, mining and mineral, power plant and general industrial department.
The AMG Sand & Gravel Pump is the heavy duty pump special designed for dredger, mining and mineral, power plant and general industrial department.
New development High Chrome Cast Iron make AMG Sand & Gravel Pump have the long time use-life.
5.AMG Sand & Gravel Pump Structure
| 1.Shaft | 2.Frame plate | 3.Impeller stripping ring |
| 4.Shaft spacer | 5.Sealing assembly | 6.Bowl |
| 7.Frame plate liner insert | 8.Casing | 9.Adapter plate clamp ring |
| 10.Cover | 11.Throat bush | 12.Impeller |
6.AMG Sand & Gravel Pump Atlas Curve
7.AMG Sand & Gravel Pump Data Sheet
| Model | Outlet Dia (mm) |
Speed (rpm) |
Flow (m3/h) |
Head (m) |
Max Power (kw) |
Max Solid (mm) |
| 6/4D-AMG | 100 | 600-1400 | 36-250 | 7-56 | 60 | 82 |
| 8/6E-AMG | 150 | 800-1400 | 180-540 | 12-52 | 120 | 120 |
| 10/8F-AMG | 200 | 500-1000 | 180-820 | 12-56 | 560 | 178 |
| 12/10G-AMG | 250 | 400-850 | 360-1200 | 12-60 | 600 | 220 |
| 14/12G-AMG | 300 | 300-700 | 700-2700 | 8-70 | 600 | 241 |
| 14/12TU-AMG | 300 | 300-700 | 700-2700 | 8-70 | 1200 | 241 |
| 10/8F-AMGH | 200 | 500-1100 | 50-900 | 20-90 | 560 | 180 |
| 12/10G-AMGH | 250 | 350-700 | 500-2000 | 20-80 | 600 | 210 |
| 16/14TU-AMGH | 350 | 250-500 | 1000-2800 | 20-80 | 1200 | 230 |
It is only parts of the data sheet, pls contact us for more!

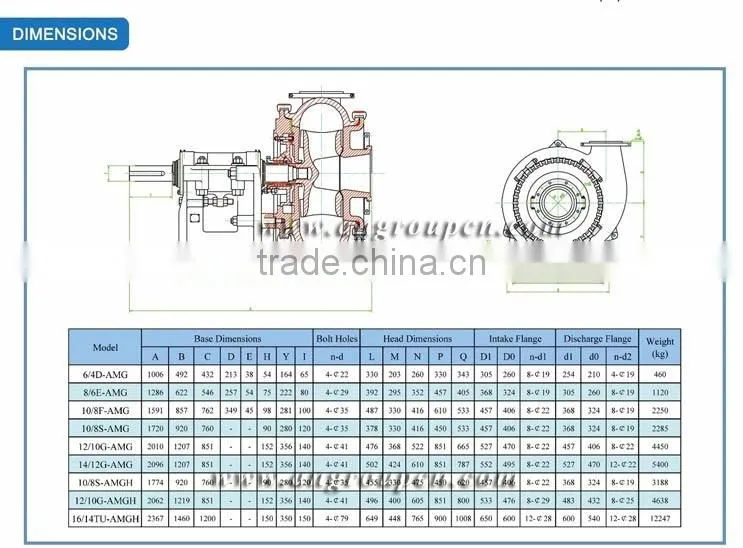

8.AMG Sand & Gravel Pump Size

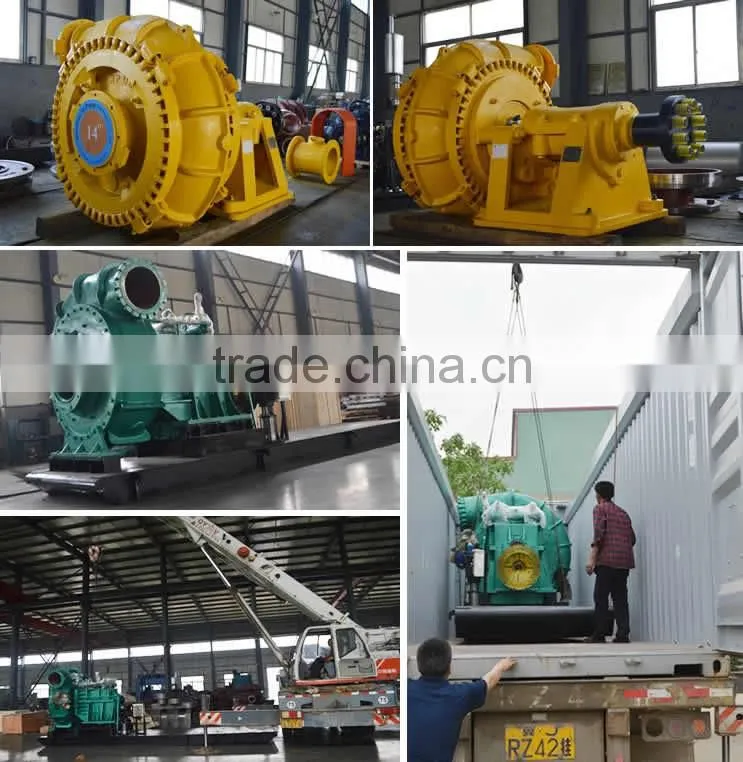

Packaging & Shipping
