Syrup transfer sugar molasses pulp pumps
- 800 Set / Sets per Month
- Tianjin Shanghai Shenzhen etc.Any port of China
- T/T L/C D/P D/A PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hebei, China | Brand Name: | AN PUMP | Model Number: | AJY |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Other, pulp pump, drainage of the building, ditches, dams, tunnels |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Diesel |
Pressure: | Other, Standard | Application: | Other, Sugar plant, paper plant, wastewater treatment plant etc. |
Product Description
Syrup transfer sugar molasses pulp pumps
General
AJY high efficient energy saving pulp pump, with advantage from broad and domestic, we take advanced design theory to develop new type pump, hydraulic design with theory “relative suction, relative obstruction”. The pump wet parts hydraulic performance is compliance with pump flow law, then reduce the erosion and wear of wet parts by liquid.
Greatly improve the pump efficiency and service life.
AJY pump advantages
1. High efficiency, Energy saving: operation efficiency is 3-10% higher than ordinary pulp pump, energy saving to 15-30%
2. Good NPSH, Long service: actual using life is twice-third time than ordinary pulp pump.
3. High concentrations, Non-clogging: transfer pulp concentration max to 6%.
4. Reasonable structure, Easy maintenance: Pump head is front, rear casing structure, when maintenance there is no need to remove pipe line, only remove the electric motor backwards, then could disassemble and repair the pump.
Model Meaning
AJY50-6FY
AJY: Pulp pump
50: Flow rate(capacity) m3/hr
6: Head(pressure) m
F: Material: stainless steel
Y: Shaft seal type: expeller dynamic seal
Particularly applicable industry
1. Paper Industry: Suitable for transfer paper pulp concentration max to 6%, and liquid cycle transmission during base recovery processing, for lifting and pressing.
2. Sugar Industry: Suitable for transfer syrup max to 4%, and viscosity max 150 mm2/S.
3. Urban Sewage Treatment, Suitable for transfer sewage, waste water, for lifting and pressing

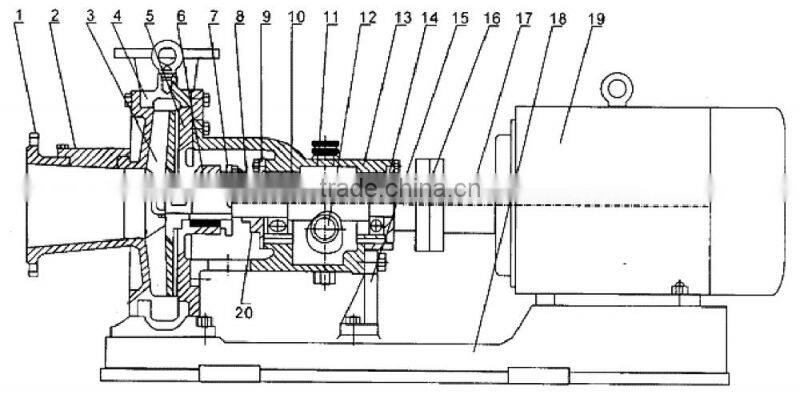

AJY Pulp Pump Structure
Grease, oil lubrication structural parts
1.Front pump cover 3.Impeller 4. Pump casing 5. Pump cover 6. Shaft cover
7. Packing gland 8. Slinger ring 9. Front bearing cover 10. Shaft 11. Breathable cover
12. Oil flag 13. Bearing frame 14. Back bearing cover 15. Support base
16. Coupling on pump end 17. Coupling for motor end 18.Base plate 19. Electric motor
20. Couplingguard
AJY Pulp Pump Performance Data
No. | Model | Range | Speed (rpm) | Motor & Power | |
Flow Q(m³/h) | Head H(m) | ||||
40 | AJY260-16 | 155-310 | 15-13 | 970 | 18.5 |
41 | AJY300-30 | 180-360 | 29.5-26 | 1480 | 37 |
42 | AJY370-30 | 220-440 | 29.5-26 | 1480 | 45 |
43 | AJY320-35 | 190-380 | 36-32 | 1480 | 45 |
44 | AJY400-35 | 240-480 | 34-29 | 1480 | 55 |
45 | AJY130-38 | 80-160 | 40-35.5 | 1470 | 22 |
46 | AJY120-32 | 70-140 | 34-29 | 1470 | 18.5 |
47 | AJY90-17 | 55-110 | 18-15.5 | 970 | 7.5 |
48 | AJY300-15 | 180-360 | 16-14 | 970 | 18.5 |
49 | AJY280-12 | 170-340 | 13-11 | 970 | 15 |
50 | AJY430-32 | 260-520 | 34-29 | 1480 | 55 |
51 | AJY400-28 | 240-480 | 30-25 | 1480 | 45 |
52 | AJY340-25 | 210-430 | 27-20 | 1480 | 37 |
53 | AJY360-36 | 215-430 | 39-32 | 1480 | 55 |
54 | AJY370-14 | 220-440 | 15-13 | 970 | 22 |
55 | AJY350-12 | 210-420 | 13-11 | 970 | 18.5 |
56 | AJY570-34 | 340-680 | 35-30 | 1480 | 75 |
57 | AJY330-17 | 310-620 | 28-24 | 1480 | 55 |
58 | AJY700-32 | 200-420 | 19-15 | 970 | 22 |
59 | AJY500-27 | 550-780 | 37-29 | 1480 | 90 |
60 | AJY800-25 | 480-960 | 26.5-23 | 1480 | 90 |
61 | AJY500-10 | 300-600 | 11-9 | 970 | 22 |
62 | AJY500-43 | 300-600 | 44-40 | 1480 | 90 |
63 | AJY460-37 | 280-550 | 39-34 | 1480 | 75 |
64 | AJY600-14 | 360-720 | 15-12 | 1480 | 37 |
65 | AJY720-16 | 430-880 | 18-14 | 1480 | 45 |
