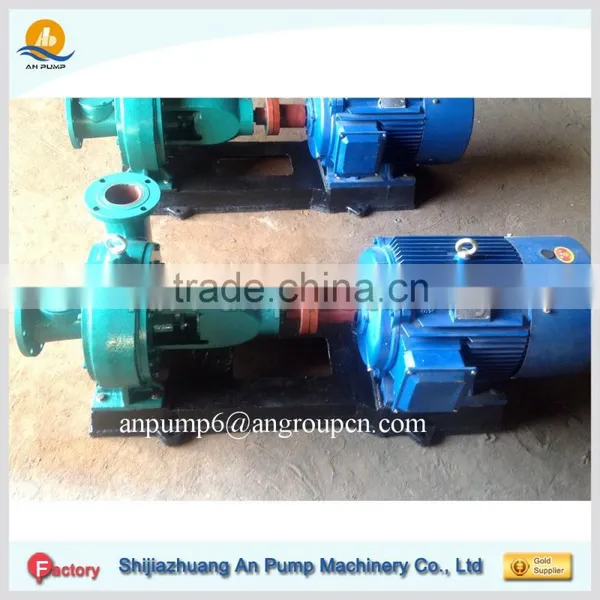

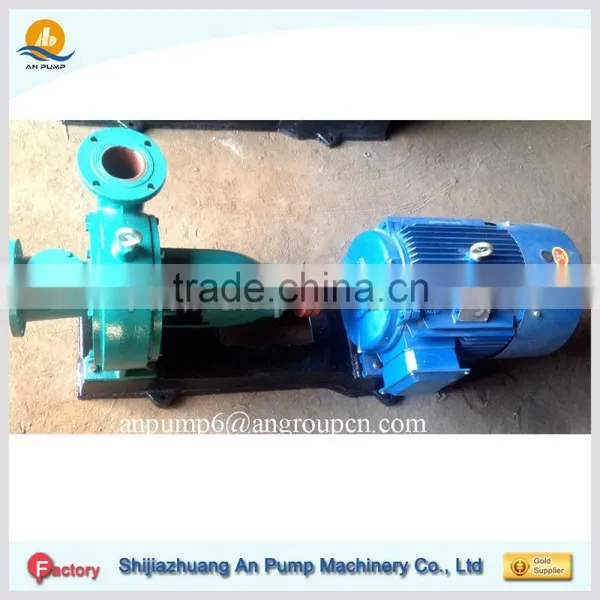

High quality standard medium-low viscosity stainless steel /paper fan pump
Pump Characteristic
1, High efficiency, energy saving, efficiency than the ordinary pulp pump up by an average of 3-10%, to save energy and reduce consumption of 15-30%
2, The cavitation performance is good, long service life: actual service life than the ordinary pulp pump can improve 2-3 times
3, Concentration is high, no jam: conveying pulp concentration 6% right
4, Reasonable structure, easy maintenance: pump head part adopts, before and after the open type structure, maintenance does not need to remove the line, just put the motor backward, the pump can be dismantled and maintenance.
Technical Data
Type | AJY |
Capacity (m3/h) | 3.5-1200 |
Head (m) | 3.7-128 |
Speed (r/min) | 1450-2900 |
NPSHr (%) | 2.0-7.5 |
Eff. (%) | 86-95 |
Weight (kg) | 33-1720 |
Dia Inlet (mm) | 50-300 |
Dia Outlet (mm) | 32-250 |
Stainless steel /paper fan pump/Paper pulp centrifugal pump Applications
1, Paper making industry: used to transport concentration below 6% of the pulp and alkali recovery process intermediary qualitative cycle transfer, promotion, and pressure;
2, Sugar industry: used for conveying concentration below 4%, viscosity in the 150 best callus induction/s the following syrup;
3, City sewage industry: used for sewage treatment process medium circulation transfer, promotion, and pressure.
Stainless steel /paper fan pump/Paper pulp centrifugal pump Features
Working Principle | Centrifugal |
Main applications | sugar, paper pulp, molasses |
Driver | Electric motor, Diesel motor |
Power Specs | 380/415 V 3phase; 50hz/60hz etc. |
Max. permissible fluid temperature | 80°C /150°C |
Type of connection | Flange |
Installation position | Horizontal |
Casing/Inner parts material | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
Shaft seal type | Mechanical seal |
Advantage
♦ 20 years in producing pumps
♦ Independent Design
♦ advanced technology from Australia, Canada, America
♦ OEM available
♦ Specialized Test Equipment
♦ Anti-rust treatment casting
♦ Supply reasonable suggestion for choosing pumps
Welcome to your inquiry about the stainless steel /paper fan pump/Paper pulp centrifugal pump!
