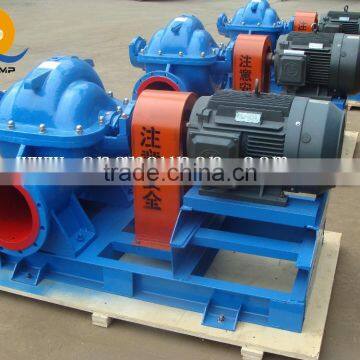

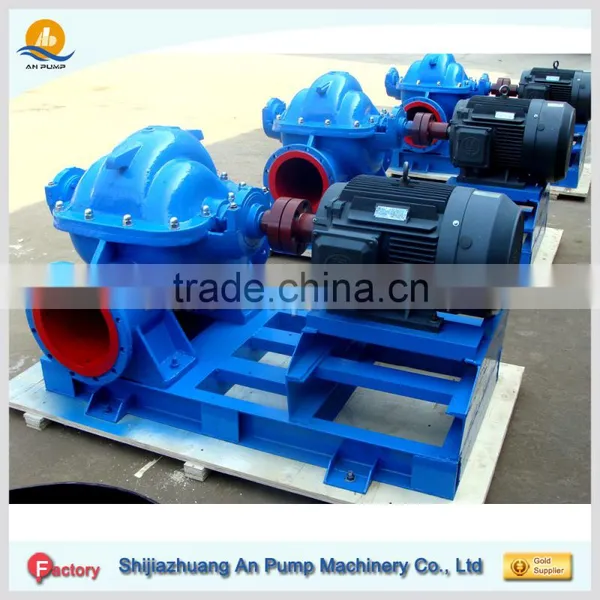

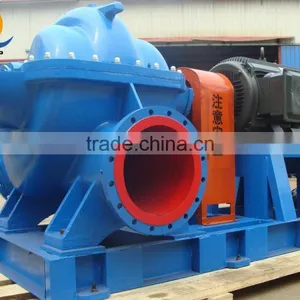

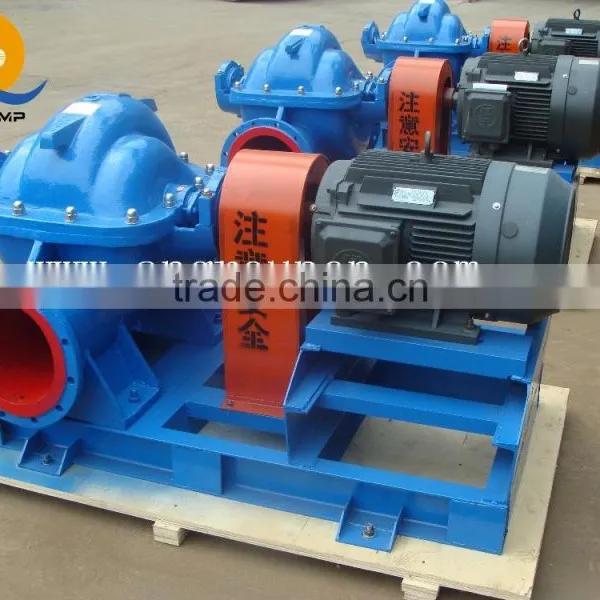

Help CenterLarge Capacity Hydro Power Plant Double Suction Sea Water Pump
Related Products
-
CE Submersible Sump Stainless Steel Sewage PumpsUS$ 500 - 1,500MOQ: 1 Set -
Submersible Slurry Pump for Iron and Steel Production Three Phase Induction Motor 15hp Submersible PumpUS$ 300 - 16,000MOQ: 1 Set
-
Heavy Duty Single Stage Centrifugal Vertical Submersible Sump Sand Sewage Slurry PumpUS$ 500 - 6,800MOQ: 1 Set
-
CE Certification Power Station Flue Gas Desulphurization Centrifugal Slurry PumpUS$ 500 - 6,000MOQ: 1 Set
-
Main Pump Hopper Heavy Duty Solid Slurry PumpUS$ 500 - 6,000MOQ: 1 Set
Shijiazhuang An Pump Machinery Co.,Ltd is a manufacturer and trading enterprise, which is mainly engaged in pump designing
, manufacturing, selling and service. We develop the international trading business of mining equipment, slurry pumps, and water
pumps according the wide customer resource, comprehensive technology and reasonable staffing.
An pump machinery’s main products includes: slurry pump, desulfurization pump, gravel pump, mud pump, sewage pump,
submersible pump, submersible sewage pump, impurity pump, large capacity split casing pump, high head multistage water pump,
end suction pump, self priming pump, pump parts and ancillary equipment). which can satisfy different kinds of demands.
China portable water pump set irrigation Description
Type QS,QSH pumps are single stage, double suction with horizontally split casings.
Type QS ,QSH pumps are adoptable in factories, mines, water works, power stations, hydraulic engineering, irrigation or drainage services in agriculture, etc.
China portable water pump set irrigation Features
| Compact structure, space effective and much shorter axial dimensions |
| Small vibration and low noise, achieved mainly by means of the follow |
| A. The pump casing adopts the double-volute structure. |
| B. The rotor part has short axial dimensions and a good rigidity. |
| C. The pump shaft adopts the imported high-precision bearing for the support. |
China portable water pump set irrigation performance parameters
Model |
Flow rate (m3/hr) |
Head (m) |
Speed (rpm) |
Power (kw) |
Eff (%) |
QS150 |
110~220 |
35~84 |
2900 |
30~55 |
67~80 |
QS200 |
160~351 |
31~100 |
2900 |
37~110 |
67~85 |
QS250 |
324~612 |
8.6~71 |
1450 |
22~132 |
72~86 |
QS300 |
504~972 |
8~98 |
1450 |
30~300 |
70~84 |
QS350 |
745~1663 |
10~140 |
1450 |
55~680 |
70~88 |
QS400 |
900~1620 |
32~98 |
980~1480 |
155~500 |
71.5~84 |
QS500 |
1150~2450 |
10.6~108 |
740~970 |
110~800 |
70~89 |
QS600 |
2304~4000 |
13~80 |
730~970 |
185~900 |
70~91 |
QS700 |
2111~4896 |
39.5~99.5 |
740~980 |
560~1250 |
72~92 |
QS800 |
3960~7200 |
23.5~84 |
600~740 |
450~1600 |
77~92 |
QS1000 |
6000~9900 |
32~52 |
600~990 |
1250 |
79~87 |
QS1200 |
5832~14400 |
6~95.7 |
500~745 |
710~3450 |
80~90 |
China portable water pump set irrigation performcance curve
China portable water pump set irrigation on site application
Industry |
Plumbing Applications |
General water supply |
Circulation of HVAC building systems , water booster service , boiler feed , general circulation service and more . |
Agriculture / Food / Beverage |
Irrigation , water supply , food processing , beverage processing , fertilizers . |
Manufacturing |
Pulp and paper fans , plastic & rubber , metal & steel , pharmaceutical , paper mills , air wash , marine ballast service . |
Fire / Disaster Relief |
Fire pumps , fire protection , flood control , disaster relief , federal / military . |
Utilities : Water / Wastewater |
Power Generation stations , dewatering , desalination , energy recovery turbines |
Chemical / Mining |
Chemical plants , refineries , petroleum distribution , coal sites , ethylene glycol pumping . |
Standard wooden case packing
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
If interested , please contact us right now ! ! !
