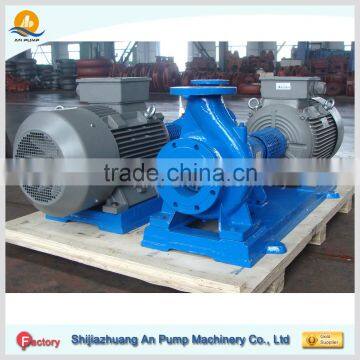

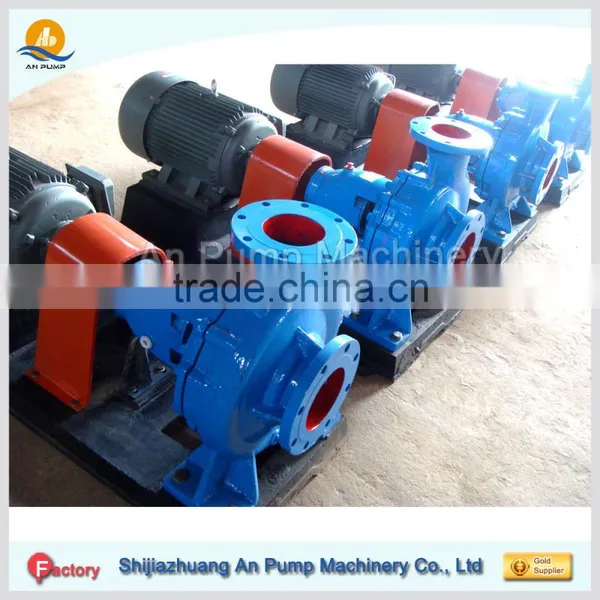

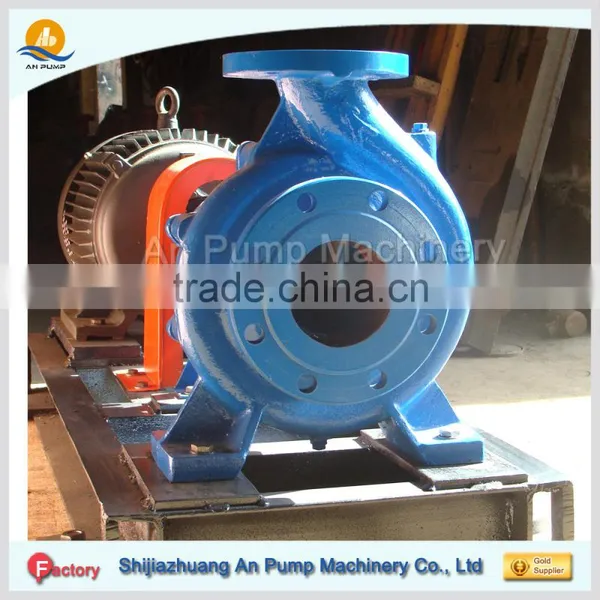

Industrial high pressure end suction centrifugal water pump
- 8000 Set / Sets per Month
- Tianjin/Shanghai/Shenzhen/Guangzhou
- T/T Credit Card PayPal
You May Like
-
Electric drain Water Powerful stainless steel submersible pump
-
0.5 hp or as required submersible water swimming pool pump
-
QI Portable transfer water pump
-
Deep Well Bore Hole Vertical Trubine Construction Submersible Water Pump
-
bore hole deep well submersible water pumps
-
High speed irrigation deep well submersible water pump
Product Details
| Place of Origin | Hebei, China | Brand Name | An Pump | |
| Model Number | QI centrifugal pump | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Other, centrifugal pump | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Electric or diesel | Pressure | High Pressure | |
| Application | Other, centrifugal pump |
Product Description
Industrial high pressure end suction centrifugal pump
Introduction for industrial high pressure end suction centrifugal pump
QI series pump is single-stage , end suction centrifugal pump , desiged as per the interational standard ISO2858 . It is a replacement of type BA water pump which is applicable to industrial and urban water supply and discharge as well as the agriculture irrigation . It can be used to transport liquid which have physical and chemical properties similar to clean water with a temperature not exceeding 80°.
QI series end suction pump is designed according to the functions and dimensions the international standard ISO2858 requires by our company . It is suitable for hot boiler water supply , hot water circulation system , industrial and urban water supply and discharge as well as the agriculture irrigation . Nevertheless , the temperature of the water should be no more than 150°.
Feature for industrial high pressure end suction centrifugal pump
1.Capacity:3-760m3/h
2.Head:2-446.8 m
3.Speed:1480 r/min
4.Efficiency: 67.5%-84.5%
5.Power: 7-110 KW
Parameter for industrial high pressure end suction centrifugal pump
End Suction Water Pump Performance | |||||
Pump Type | Capacity (m3/h) | Head (m) | Speed (rpm) | Motor Power(kw) | Eff (%) |
QI 50 | 3-14 | 3.7-82 | 1450-2900 | 0.55-11 | 21.5-60 |
QI 65 | 6-30 | 3.8-115.4 | 1450-2900 | 0.55-30 | 25-75 |
QI 80 | 12-60 | 3.6-128 | 1450-2900 | 0.55-37 | 39-75 |
QI 100 | 24.3-120 | 3.7-133 | 1450-2900 | 1.1-75 | 51-78 |
QI 125 | 51.4-240 | 8.4-133 | 1450-2900 | 4-110 | 52-81 |
QI 150 | 104-240 | 13-53 | 1450 | 11-45 | 62-81 |
QI 200 | 194-460 | 13.1-55 | 1450 | 22-90 | 65.5-82 |
QI 250 | 320-760 | 22.6-52 | 1480 | 75-132 | 67.5-84.5 |
QI 300 | 530-1200 | 21.9-38 | 1480 | 90-132 | 61.66-107.6 |

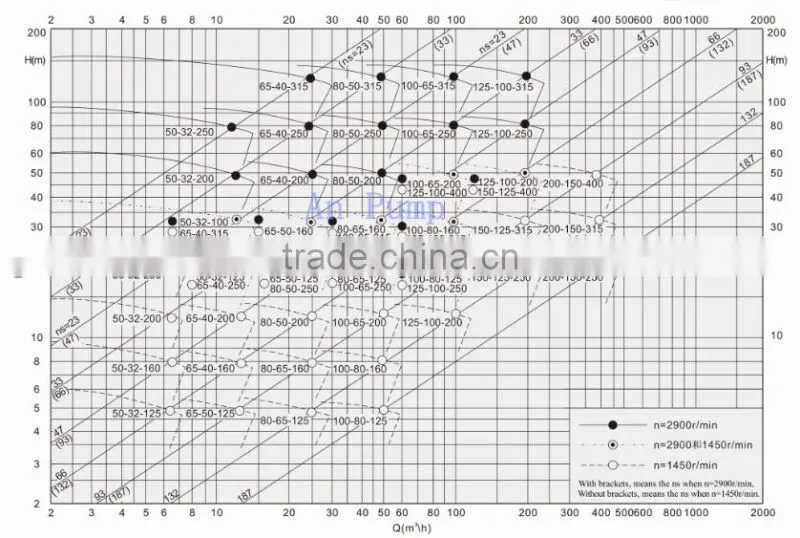

Curve for industrial high pressure end suction centrifugal pump

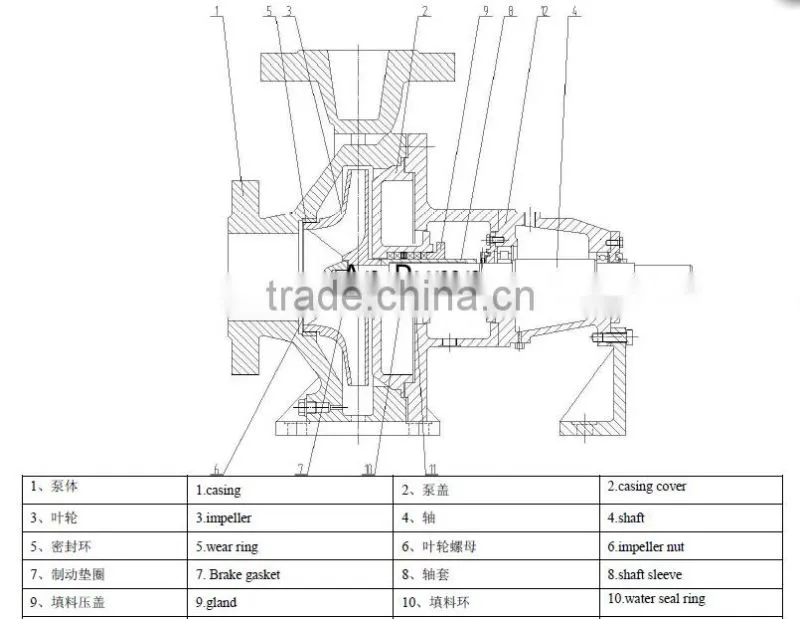

Structure for industrial high pressure end suction centrifugal pump
Application for industrial high pressure end suction centrifugal pump
♦ urban water supply and drainage |
♦ central heating system water supply and sewerage |
♦ iron and steel metallurgy enterprises |
♦ paper mills |
♦ petrochemical refineries |
♦ oil fields |
♦ construction of thermal power plants and power stations |
♦ airports, chemical factories |
♦ textile mills, sugar factories |
♦ chemical plants, power stations |
♦ mines |
♦ farmland drainage irrigation and hydraulic engineering. |
Packing and shipping for industrial high pressure end suction centrifugal pump
Our Services
1. Offer Large capacity pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has its own Kingda type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
