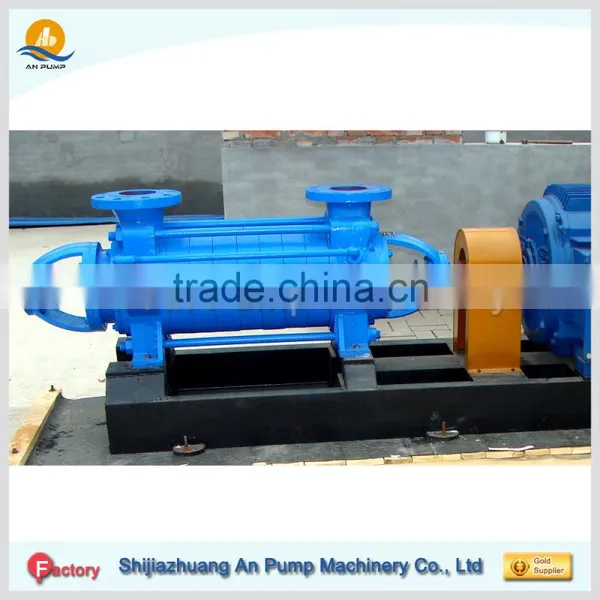

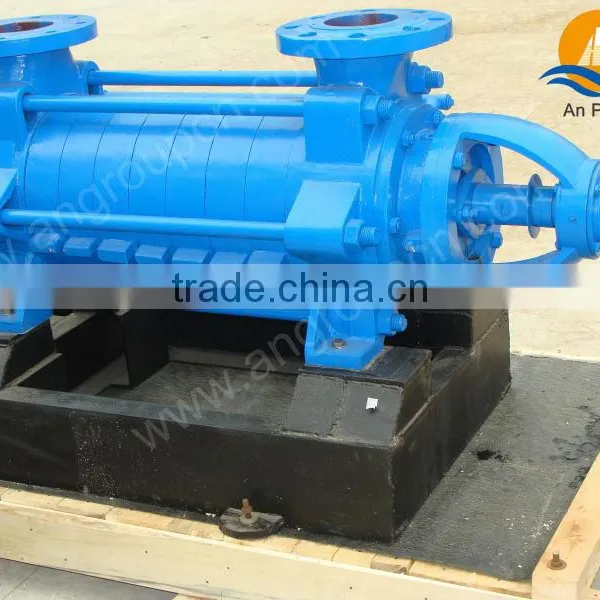

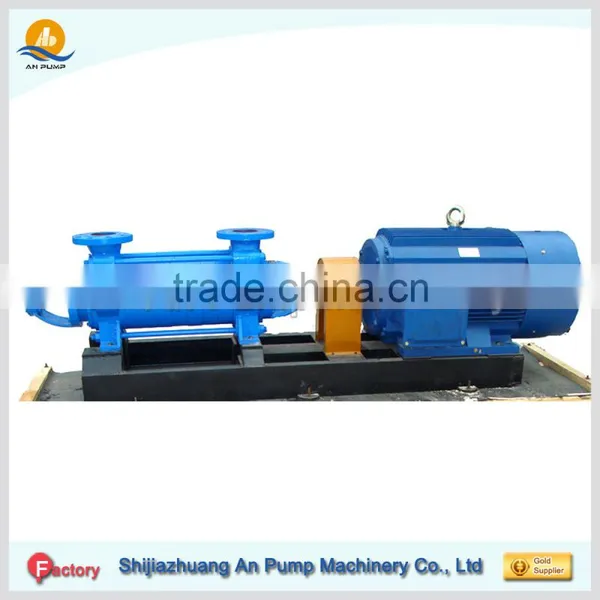

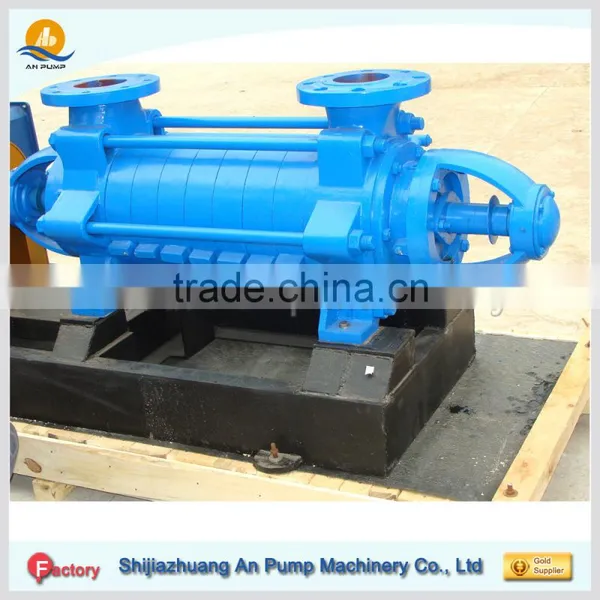

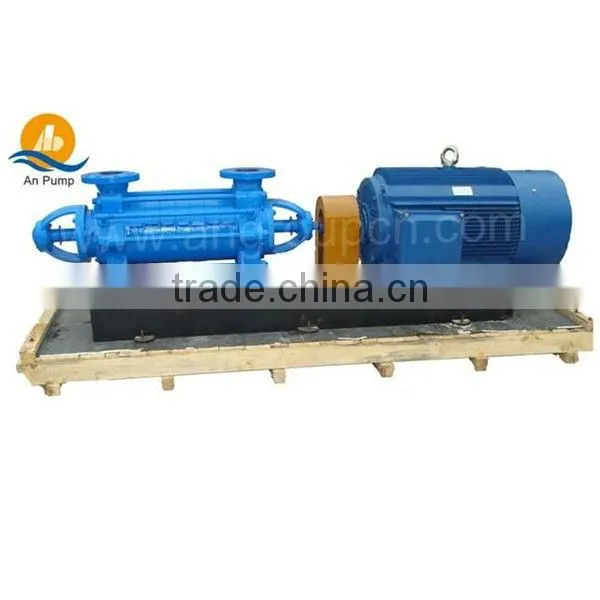

China boiler feed circulation water pump 400kw
1.China boiler feed circulation pump Introduction:
Multi-stage section centrifugal pump, the excellent hydraulic models are high-efficiency, energy-saving, and have wide performance range, operating safety & steady, low noise, long life and installing
& repairing is very convenient etc. It can deliver heat water, oil, corrosive or wear albe medium by changing the material, seal or adding cooling system.
1. Multi stage pump can deliver the neuter mineral water which solid particles percent≤ 1.5%(solid Dia, < 0.5mm) and other similar sewage,
2. Temperature of the liquid is ≤ 80°C. It is suitable for steel works, mines, cities projects etc.
This kind pump can deliver the corrosive liquid without solid particle, which temperature is from -20°C-150°C
The multi stage pump deliver oil or oil products without solid grain, viscosity ≤ 120ct, range of temperature is from -20°C to 150°C
3.Compact and reasonable structure
4.Shaft seal can be mechanical seal or packing seal
5.Advanced hydraulic model to feature high efficiency and little energy consumption
2.China boiler feed circulation pump range of applications
Suitalbe for mine, city Water Supply and Sewerage Engineering
Transfer watery liquid medium, without solid particle, temperature under 80°C
Suitable for boiler water feed or deliver medium similar with hot water, without solid particle, temperature below 105°C Suitable for stain steel, mine, sewage transferring process.
Transfer mine water with solid partical content under 1.5% or similar sewage, temperature under 80°C
Suitable for transferring Corrosive liquid without solid partical, temperature between -20°C~105°C
Suitable for transferring Oil and petroleum products without solid partical, temperature between -20°C~150°C, viscosity under 120cSt
Application List
- Cooling system
- Commercial-Water
- Commercial-Treatment
- Commercial-Fire/Fighting
- Light Industry-Water
- Light Industry-Treatment
- Agriculture-Irrigation
- Golf/Turf-Irrigation
- Municipality-Water
- Municipality-HVAC
- Water supply or boosting
- Air-conditioning system
- Domestic and industrial cleaning
- Water treatment and water purification
3.China boiler feed circulation pump Technical Specifications
Type |
QD(G) |
Capacity (m3/h) |
120-1100 |
Head (m) |
967-2500 |
Speed (r/min) |
1450-5410 |
Eff.(%) |
68-86 |
NPSHr (m) |
4.5-23.5 |
Power (kw) |
710-8000 |
4.China boiler feed circulation pump Feature
1, Easy maintenance: vertical pipeline structure, inlet & outlet at the same level, can be installed in any position and any direction, it is very easy whatever maintenance or installation.
2, No water pollution: the keyflow passage components are made of stainless steel after stamping, which has good characteristics of light weight, clean, health, it is a perfect water pump of environmental protection, energy-saving.
3, low operating cost, the main flow passage components are made of stainless steel after stamping, smooth flow passage components, which has good characteristics of high efficiency, less loss, low rate of failure, longer service life
4, motor: the Aluminum Alloy motor has good characteristics of light weight, small volume, good heat dissipation, good appearance, longer service life, high efficiency and low noise, etc.
5.China boiler feed circulation pump Shows
Shijiazhuang An Pump Machinery Co.,Ltd is a manufacturer and trading enterprise, which is mainly
engaged in pump designing, manufacturing, selling and service. We develop the international trading business
of mining equipment, slurry pumps, and water pumps according the wide customer resource, comprehensive
technology and reasonable staffing.
An pump machinery’s main products includes: slurry pump, desulfurization pump, gravel pump, mud pump,
sewage pump, submersible pump, submersible sewage pump, impurity pump, large capacity split casing pump,
high head multistage water pump,end suction pump, self priming pump, pump parts and ancillary equipment.
which can satisfy different kinds of demands.
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
- Standard wooden cases package, if special requirements, should be inform in advance;
- Shipping by sea, by air, by train and truck all available;
- Delivery date: vary from 5-30days according to different model and quantity.
Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.
Q2. What markets do your pumps export to?
Europe, North & South America, SouthEast Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, Canada, France, America, Middle East, Asia and Africa are gradually improving.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision
and accurate model selection.
Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.
Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
