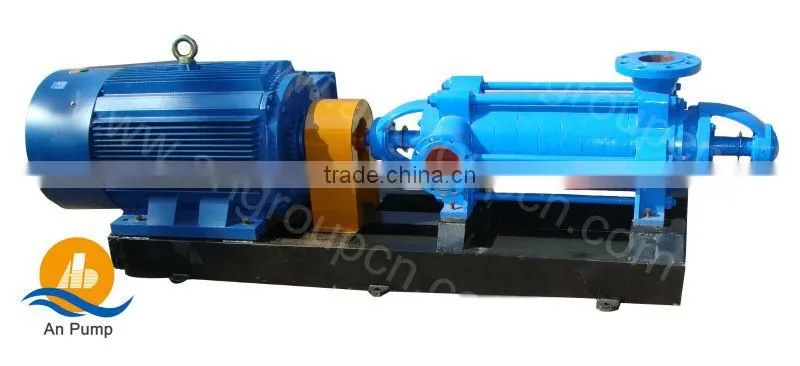

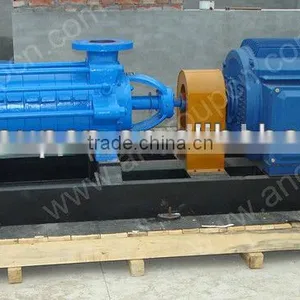

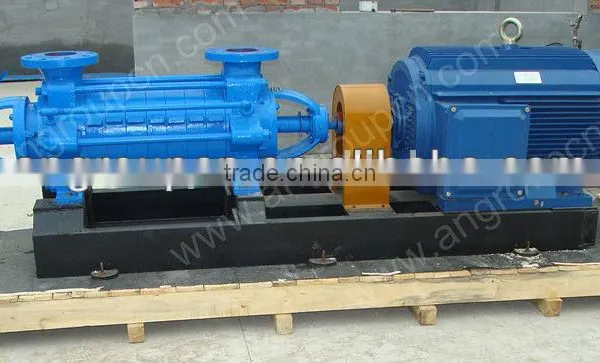

High temperature oil chemical pumps
1.Multi-stage Pump Introduction:
Multi-stage centrifugal pump, the excellent hydraulic models are high-efficiency, energy-saving, and have wide performance range, operating safety & steady, low noise, long life and installing
& repairing is very convenient etc. It can deliver heat water, oil, corrosive or wear albe medium by changing the material,
seal or adding cooling system.
1. Multi stage pump can deliver the neuter mineral water which solid particles percent≤ 1.5%(solid Dia, < 0.5mm) and other similar sewage,
2. Temperature of the liquid is ≤ 80°C. It is suitable for steel works, mines, cities projects etc.
This kind pump can deliver the corrosive liquid without solid particle, which temperature is from -20°C-150°C
The multi stage pump deliver oil or oil products without solid grain, viscosity ≤ 120ct, range of temperature is from -20°C to 150°C
3.Compact and reasonable structure
4.Shaft seal can be mechanical seal or packing seal
5.Advanced hydraulic model to feature high efficiency and little energy consumption
2.range of applications (pressure of inlet&outlet under 0.6MPa)
Suitalbe for mine, city Water Supply and Sewerage Engineering
Transfer watery liquid medium, without solid particle, temperature under 80°C
Suitable for boiler water feed or deliver medium similar with hot water, without solid particle, temperature below 105°C
Suitable for stain steel, mine, sewage transferring process.
Transfer mine water with solid partical content under 1.5% or similar sewage, temperature under 80°C
Suitable for transferring Corrosive liquid without solid partical, temperature between -20°C~105°C
Suitable for transferring Oil and petroleum products without solid partical, temperature between -20°C~150°C, viscosity under 120cSt
Application List
- Condensate water transfer.
- Sprinkler irrigation or Water supply in hilly area.
- Fire fighting system. • Water supply to high raise buildings.
- Mine dewatering.
- Boiler feed.
- Reverse osmosis.
- Condensate extraction.
- Booster plants.
- Hot & Cooling water circulating.
- High pressure for hydraulic pressure.
- Filter press washing.
- Power plant.
3.Technical Specification
Type |
QD(G) |
Capacity (m3/h) |
120-1100 |
Head (m) |
967-2500 |
Speed (r/min) |
2980-5410 |
Eff.(%) |
68-86 |
NPSHr (m) |
4.5-23.5 |
Power (kw) |
710-8000 |
4.Feature
| 1, Easy maintenance: vertical pipeline structure, inlet & outlet at the same level, can be installed in any position and any direction, it is very easy whatever maintenance or installation. |
| 2, No water pollution: the keyflow passage components are made of stainless steel after stamping, which has good characteristics of light weight, clean, health, it is a perfect water pump of environmental protection, energy-saving. |
| 3, low operating cost, the main flow passage components are made of stainless steel after stamping, smooth flow passage components, which has good characteristics of high efficiency, less loss, low rate of failure, longer service life |
| 4, motor: the Aluminum Alloy motor has good characteristics of light weight, small volume, good heat dissipation, good appearance, longer service life, high efficiency and low noise, etc. |
5.Advantage
| 1 | Over 20 years experience in pumps |
| 2 | Wear resistant material |
| 3 | Specialized Test Equipment |
| 4 | Anti-rust treatment casting |
| 5 | Manufacturer |

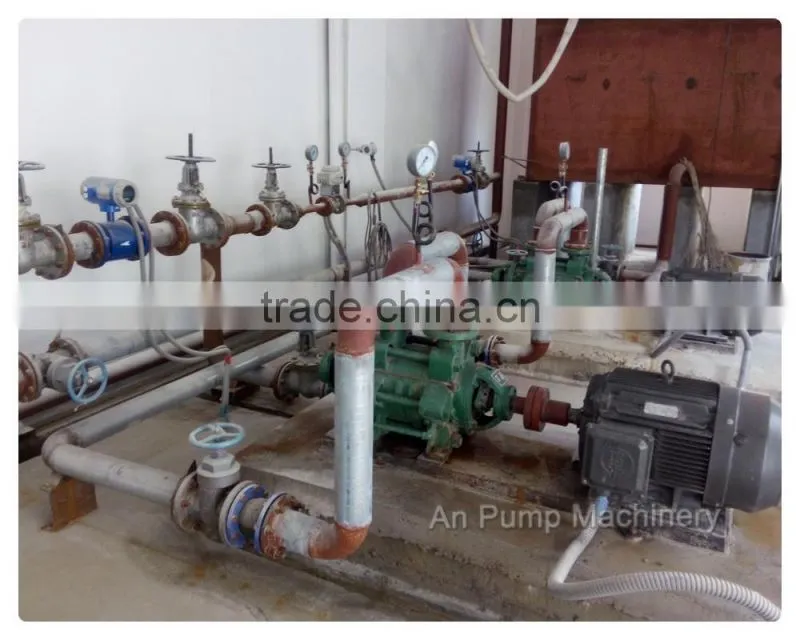

6.Pump Shows
- Standard wooden cases package, if special requirements, should be inform in advance;
- Shipping by sea, by air, by train and truck all available;
- Delivery date: vary from 5-30days according to different model and quantity.
- 1 year guarantee of whole machine set, except the flow parts
- 24hours *7 days service is available
- Calling or door to door service
- User manual and maintenance instruction is available
