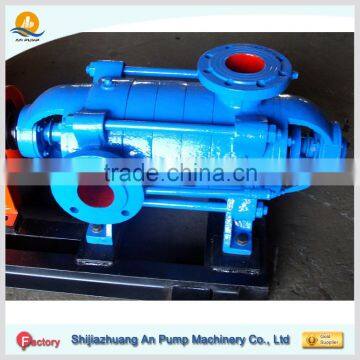

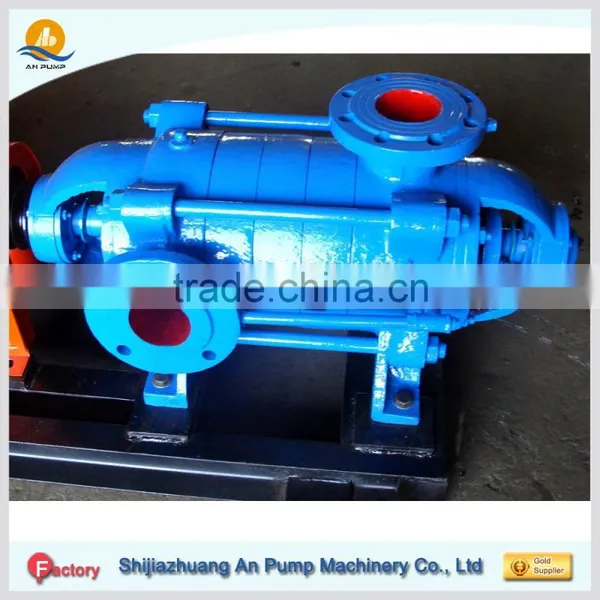

centrifugal multistage water pump Description
This serial pump is multi-stage section centrifugal pump, the excellent hydraulic models are high-efficiency, energy-saving, and have wide performance range, operating safety & steady, low noise, long life and installing & repairing is very convenient etc. It can deliver heat water, oil, corrosive or wearalbe medium by changing the material, seal or adding cooling system.
1. The multi stage pump can deliver the neuter mineral water which solid particles percent≤ 1.5%(solid Dia, < 0.5mm) and other similar sewage,
2. Temperature of the liquid is ≤ 80° C. It is suitable for steel works, mines, cities projects etc.
This kind pump can deliver the corrosive liquid without solid particle, which temperature is from -20° C-150° C
The multi stage pump deliver oil or oil products without solid grain, viscosity ≤ 120ct, range of temperature is from -20 ° C to 150 ° C

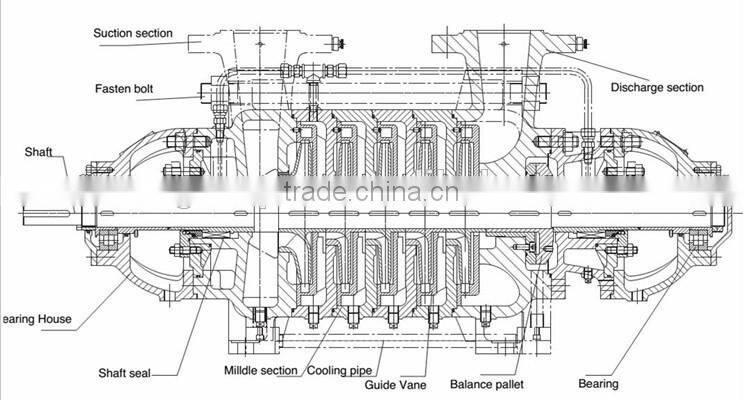

Construction of centrifugal multistage water pump
The multi stage pump is consist of stator, rotator, bearing, shaft seal:
1. Stator: The main parts are suction casing, stage casing, discharge casing and diffuser. They are screw up by poles, to become a working house. It is horizontal, the discharge direction is upward; The discharge and suction direction of them are both upwards, and the suction direction is horizontal usually, also they can be made upward according to user's requirement.
2. Rotor: It is consist of shaft, impellers, balance dic and shaft sleeve etc. Shaft supplied power to impellers; The axial force is balanced by balance disc; The sleeve mounted on shaft to protect shaft.
3. Bearing parts: It is consist of bearing body, bearing and bearing cover etc. The bearing of type 85-67, 155-67, 600-60 pump is sliding bearing, lubricated by diluted oil, the other pump bearing is rolling bearing, lubricated by grease.
4. Shaft seal: It is usually adopted soft packing seal, consist of sealing house on suction casing, packing, blocking water ring, the sealing hose have some pressure water, to cool, lubricate and seal pump. The pumps usually adopt mechanical seal.

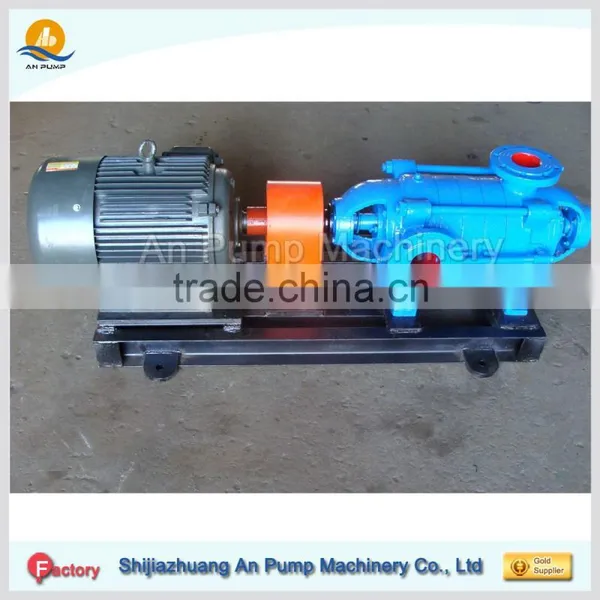

5. Drive: The pump is driven directly by motor through elastic coumpling, the rotation of pump is clockwise looking from motor to pump.
QD(G) Series multistage pump data | |||
Pump Type |
Flow |
Head |
Power |
(m3/h) |
(m) |
(KW) |
|
QM(G) 6-25 |
3-7.5 |
73.5-306 |
4-11 |
QM(G) 12-25 |
7.5-15 |
69-338.4 |
5.5-22 |
QM(G) 12-50 |
7.5-15 |
139.5-648 |
18.5-75 |
QM(G) 25-30 |
15-30 |
82.5-340 |
15-45 |
QM(G) 25-50 |
15-30 |
15.78-618 |
22-110 |
QM(G) 46-30 |
30-55 |
81-340 |
22-75 |
QM(G) 46-50 |
30-55 |
138-666 |
37-132 |
QM(G) 85-45 |
55-100 |
78-459 |
37-160 |
QM(G) 85-67 |
55-100 |
183-666 |
90-250 |
QM(G) 155-67 |
100-185 |
177-684 |
132-400 |
QM(G) 280-43 |
185-335 |
114-423 |
160-450 |
QM(G)280-65 |
185-355 |
372-680 |
500-800 |
QM(G)450-60 |
335-684 |
171-650 |
360-3400 |
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
Shijiazhuang An Pump Machinery Co.,Ltd is a manufacturer and trading enterprise, which is mainly
engaged in pump designing, manufacturing, selling and service. We develop the international trading business
of mining equipment, slurry pumps, and water pumps according the wide customer resource, comprehensive
technology and reasonable staffing.
