Centrifugal water jet pump

1.QI Centrifugal End Suction Water Jet Pump Introduction:

QI(R) Centrifugal end suction pump is a single stage, single suction pump for pumping clean water and the other liquids physically and chemically similar to the clean water. This pump is suitable for public water supply and drainage duties in industries and land irrigation also in agriculture.

Our QI series Single Stage Fire Water Pump is single stage single suction centrifugal pump, designed as per the international standard ISO2858.It is a replacement of type BA water pump which is applicable to industrial and urban water supply and discharge as well as the agriculture irrigation.It can be used to transport liquid which have physical and chemical properties similar to water with temperature not exceeding 80 ℃.

2.QI Centrifugal End Suction Water Jet Pump Performance:

2.QI Centrifugal End Suction Water Jet Pump Performance Curve:

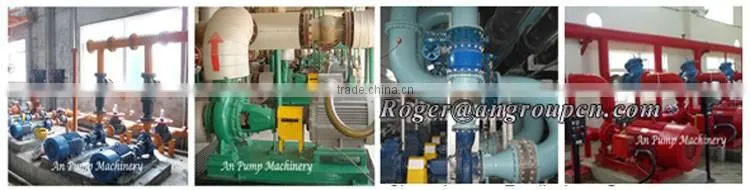

4.QI Centrifugal End suction Water Jet Pump Application:

1)Clean, thin, non-corrosive, non-flammable or non-explosive liquid without grain or fiber;

2)Water supply system;

3)Heat, air condition system;

4)Booster, constant pressure water supply;

5)Firefighting, splitting system;

6)Irrigating, farming;

7)Industry cooling, heater circulation system;

8)Industry transferring, drainage system;

5.QI Centrifugal End Suction Water Jet Pump Constructure:

6.Our Product:

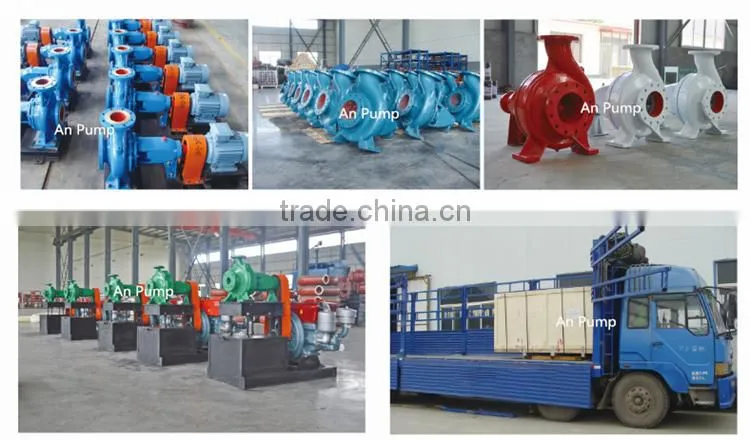

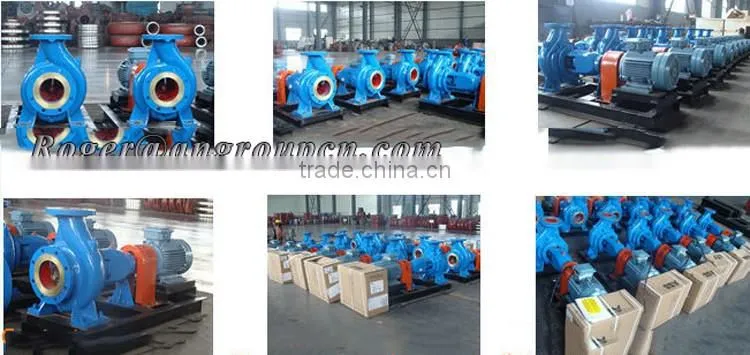

7.Our Factory:

An Pump Machinery is your Best Water Pump Manufacturer

An Pump Machinery Co. ,Ltd is the pump manufacturer with 50+ years experienced

Our pumps export to over 90 countries all over the world in mining, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc. click to more...
