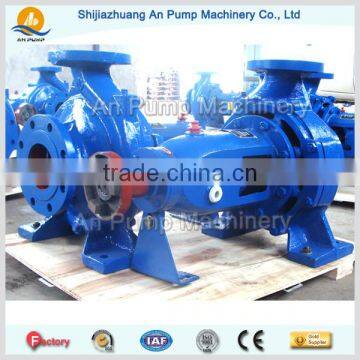

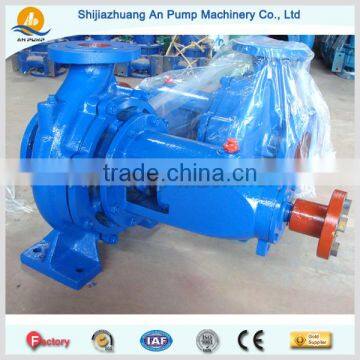

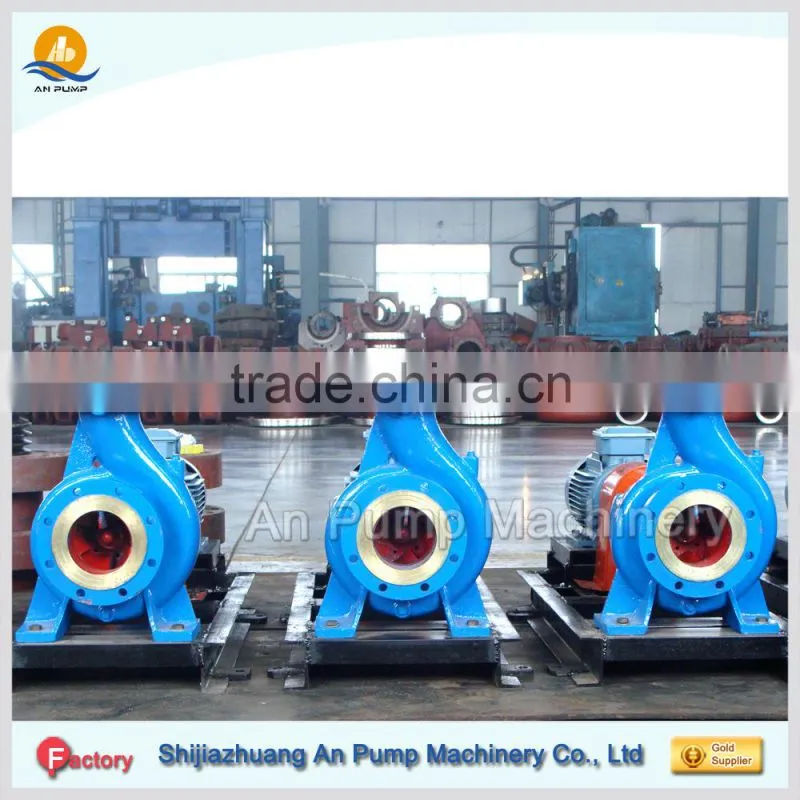

Stainless steel or Nickel alloy chemical industry acid pump
Brief introduction of chemical resistant acid pump
QI, QIR series single stage single suction centrifugal pump price (end suction pump): Single stage single suction centrifugal water pumps are used for pure water or liquids similar to water or chemical acid liquor and oil with temperature not exceed 80℃, 150℃ for QIR series. They are widely used in all kinds of industry: air conditioning chilled water and cooling water circulation, hot water and cold water recycling plant, city water supply and drainage, irrigation, fire fighting, sea water transportation, construction, water conservancy facilities etc. The material can be changed to stainless steel material such as SS316, SS304 for corrosion acid liquor, ZG500 or QT500 for oil. Motor and diesel engine drive are both available.
1) Easy installation and move, open back structure makes it easy to take out the rotor;
2) Discharge on top center, pump body support by anchor assure the stable structure and maximum resistance off-center and distortion caused by line load;
3) No overload design, make sure performance operate stably;
4) Adopt national standard hydraulic model make sure high operation efficiency and good anti-cavitation performance;
5) Packing seal and mechanical seal are available.
chemical resistant acid pump Technical Data
Type |
QI |
Capacity (m3/h) |
3.5-1200 |
Head (m) |
3.7-128 |
Speed (r/min) |
1450-2900 |
NPSHr (%) |
2.0-7.5 |
Eff. (%) |
86-95 |
Weight (kg) |
33-1720 |
Dia Inlet (mm) |
50-300 |
Dia Outlet (mm) |
32-250 |
More Applications of QI chemical resistant acid pump
• Irrigation
• De-watering
• Power/cogeneration
• Desalination
• Mining
• Metal manufacturing
• Petrochemical
• General industrial utility
• Water distribution / supply / treatment
chemical resistant acid pump Features
Working Principle |
Centrifugal |
Main applications |
sugar, oil, chemical |
Driver |
Electric motor, Diesel motor |
Power Specs |
380/415 V 3phase; 50hz/60hz etc. |
Max. permissible fluid temperature |
80°C /150°C |
Type of connection |
Flange |
Installation position |
Horizontal |
Casing/Inner parts material |
Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
Shaft seal type |
Mechanical seal |
chemical resistant acid pump Advantage
♦ 20 years in producing pumps
♦ Independent Design
♦ advanced technology from Australia, Canada, America
♦ OEM available
♦ Specialized Test Equipment
♦ Anti-rust treatment casting
♦ Supply reasonable suggestion for choosing pumps
Shijiazhuang An Pump Machinery Co.,Ltd is a manufacturer and trading enterprise, which is mainly
engaged in pump designing, manufacturing, selling and service. We develop the international trading business
of mining equipment, slurry pumps, and water pumps according the wide customer resource, comprehensive
technology and reasonable staffing.
An pump machinery’s main products includes: slurry pump, desulfurization pump, gravel pump, mud pump,
sewage pump, submersible pump, submersible sewage pump, impurity pump, large capacity split casing pump,
high head multistage water pump,end suction pump, self priming pump, pump parts and ancillary equipment.
which can satisfy different kinds of demands.
Packing and shipping for Stainless steel or Nickel alloy chemical industry acid pump acid chemical
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
We'd love to hear from you, get in touch with us.
Welcome to your inquiry about the Corrosion Resistance Sulfate Acid Pump !
