Rive Lake or Sea Submersible Sump Sewage Water Pump
US$ 500 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
An pump
Model Number:
AQW submersible irrigation water pump
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Agriculture Farm Irrigation Split Casing Water PumpUS$ 350 - 7,000MOQ: 1 Set -
Factory Price Farm Irrigation Diesel Water PumpUS$ 500 - 5,000MOQ: 1 Set
-
Agriculture Farm Irrigation Split Casing Water PumpUS$ 300 - 7,000MOQ: 1 Set
-
2" 4" 6" 8"Diesel Engine Split Casing Irrigation PumpUS$ 300 - 3,000MOQ: 1 Set
-
Powerful Big Split Case Irrigation PumpUS$ 500 - 7,000MOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
An pump
Model Number
AQW submersible irrigation water pump
Theory
Centrifugal Pump
Structure
Single-stage Pump
Usage
Other, submersible tube well water pump
Power
Other, Electric, As requirment like 7hp submersible water pump
Standard or Nonstandard
Standard
Fuel
Diesel
Pressure
Other, High Pressure, 200 Psi water pump or higher
Application
Other, Submersible, Water irrigation agriculture pump
Rive Lake or Sea Submersible Sump Sewage Water Pump
PUMP Application
®®®®®® APPLICATION ®®®®®®
Application for Rive Lake or Sea Submersible Sump Sewage Water Pump
ASW series submersible water pump is mainly used for agriculature irrigation, like the wheat farm, barley farm, tea farm, cotton, rice, tree, or any other farm. This pump can suck water from river, deep weel, sea, stream, or also canal, or any water resources.
PUMP Description
®®®®®® OVERVIEW ®®®®®®
Overview about Rive Lake or Sea Submersible Sump Sewage Water Pump
ASW series submersible water pump is mainly used for drain off the water when irrigation.
ASW pump is high efficiency, energy saving, non-blocking, anti-winding, long life and other notable features can be installed with automatic coupling device. And a common type, auto-mixing type, auto-shredding type, auto-mixing chopped and anti-flushing type five kinds of models.
®®®®®® PERFORMANCE TALBE LIST ®®®®®®
Performance table list about Rive Lake or Sea Submersible Sump Sewage Water Pump
| No | Pump Model |
Outlet Dia
(mm)
|
Flow Rate
(m3/hr)
|
Head
(m)
|
Power
(kw)
|
| 1 | 50ASW | 50 | 5-40 | 7-38 | 0.75-7.5 |
| 2 | 65ASW | 65 | 10-45 | 8-37 | 2.2-7.5 |
| 3 | 80ASW | 80 | 40-75 | 6-28 | 2.2-7.5 |
| 4 | 100ASW | 100 | 65-120 | 4-45 | 3-22 |
| 5 | 150ASW | 150 | 80-200 | 5-62 | 5.5-55 |
| 6 | 200ASW | 200 | 250-500 | 6-50 | 11-75 |
| 7 | 250ASW | 250 | 300-800 | 5-53 | 15-132 |
| 8 | 300ASW | 300 | 500-1400 | 5-38 | 18.5-132 |
| 9 | 350ASW | 350 | 900-2600 | 5-50 | 30-355 |
| 10 | 400ASW | 400 | 1200-2800 | 3-47 | 30-355 |
| 11 | 500ASW | 500 | 1500-4000 | 4-32 | 55-250 |
| 12 | 600ASW | 600 | 2500-6000 | 6-25 | 110-315 |
®®®®®® PERFORMANCE CURVE ®®®®®®
Performance curve for Rive Lake or Sea Submersible Sump Sewage Water Pump
®®®®®® PUMP CONSTRUCTION ®®®®®®

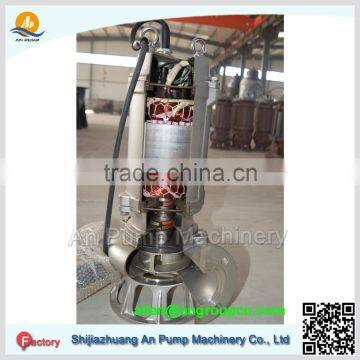

Construction of Rive Lake or Sea Submersible Sump Sewage Water Pump
®®®®®® PUMP FEATURES ®®®®®®
Features about Rive Lake or Sea Submersible Sump Sewage Water Pump
|
Bearing:
Submersible pump ware made by imported international famous bearing, which, with a reasonable configuration, can oxtend the duration of the pump.
|
|
Cooling system:
The buit-in cooling system can have the pump normally work whether the motor is on or under the liquid surface. A part of the liquid is extracted to bring out the beat produced by the motor from the pump circulation to the cooling barrel and to the pump casing and, when external cooling is required, the cooling sleeve may be separated from the pump casing and individually connected to the cooling system.
|
|
Motor:
Of F class insulation, max. working temperatures 155 C, and of a protective grade IPX8 with the effective seal.
|
|
Mechanical seal:
Use high quality mechanic seal , two ways of the seal are in series with each other and individually work to separate the motor from the pump seal to provide the motor with a dual protection.
|
|
Oil chamber:
Oil can lubricate and cool the mechanical seal and realize the attached function of safety by preventing liquid from penetrating into the motor.
|
|
Impeller:
Submersible pump with the optimized design, the impeller wil not be blocked up when to transport liquid with its optimum flow and rate and the maximum efficiency. There are suitable impellers at choice for every point of working condition.
|
|
Pump casing:
Use the know-how of CAD/CAM to make it of max. efficiency and min wearability
|
|
Shaft:
The pump is coaxial with the motor and the sealing device on the end of the shaft preven ts against contacting with the medium to protect is from corrosion.
|
AN PUMP History
®®®®®® OUR HISTRORY ®®®®®®
Our company history ABOUT Rive Lake or Sea Submersible Sump Sewage Water Pump
®®®®®® ORGANIZATIONAL STRUCTURE ®®®®®®
Our comany organizational structure
AN PUMP Service
®®®®®® OUR SERVICES ®®®®®®
Our services for Rive Lake or Sea Submersible Sump Sewage Water Pump
Contact AN PUMP
®®®®®® CONTACT US ®®®®®®
Contact Us for Rive Lake or Sea Submersible Sump Sewage Water Pump
Ailen
Sales Engineer Dept.
E: ailen(@)
SJZ An Pump Machinery Co., Ltd
WhatsApp: 0086-152-0311-6877
T: 0086-311-8994-0549 F: 0086-311-8627-1170
Skype: ailenflypeng WeChat: AilenPeng
