Farmland irrigation system water pumps with spray gun
QS, QSH series single stage split casing centrifugal irrigation water pump (double-suction pump)
Description: QS, QSH series water pumps one of the main characters is large flow rate. It can reach 110m3/h—10000m3/h. The pump structure simple, easy for operation and maintenance. It is suitable for pure water or liquids similar to water in physico-chemical property. We can use stainless steel material for the corrosion liquids. This model is widely used in agriculture irrigation, fire fighting, steel, power industry. The pump head range 6-145m, it can be used in series when high head. Small amount of particles <10mm can pass through.
1) Easy installation and move, open back structure makes it easy to take out the rotor;
2) Pump body support by anchor assure the stable structure and maximum resistance off-center and distortion caused by line load;
3) No overload design, make sure performance operate stably;
4) Adopt national standard hydraulic model make sure high operation efficiency and good anti-cavitation performance;
5) Packing seal and mechanical seal are available.
Performance of Farmland irrigation system water pumps
Type |
Capacity (m3/h) |
Head (m) |
Speed (r/min) |
Power (Nm) |
Efficiency η(%) |
QS150 |
112-220 |
35-84 |
2900 |
30-55 |
68-80 |
QS200 |
160-351 |
31-100 |
2900 |
37-110 |
61-85 |
QS250 |
324-612 |
8.6-65.1 |
1450 |
22-132 |
72-86 |
QS300 |
504-1663 |
8.7-140 |
1450-1470 |
22-680 |
70-87 |
QS350 |
745-1570 |
10-125 |
1450-1470 |
55-630 |
70-88 |
QS400 |
900-1620 |
32-85.5 |
980-1480 |
440-500 |
71.5-84 |
QS500 |
1150-3800 |
10.6-108 |
740-970 |
110-800 |
70-89 |
QS600 |
2300-4000 |
13-80 |
730-970 |
145-730 |
70-91 |
QS700 |
2111-4896 |
39.5-99.5 |
742-980 |
397-1252 |
52-92 |
QS800 |
3960-688 |
23-84 |
600-750 |
450-1600 |
77-92 |
QS1000 |
6600-9900 |
32-52 |
600 |
1250 |
79-88 |
QS1200 |
5832-14400 |
6-95.7 |
500-745 |
710-3450 |
80-90 |
Farmland irrigation system water pumps Applications
- Agriculture water supply
- Agriculture irrigation water feed
- Circulating Water Systems
- Fire Fighting
- Irrigation
- Paper Mills
- Pharmaceuticals
- Ports & Docks
- Sugar Mills
- Vegetable Oil Mills
- Water / Effluent Treatment
- Sea/river Water delivery

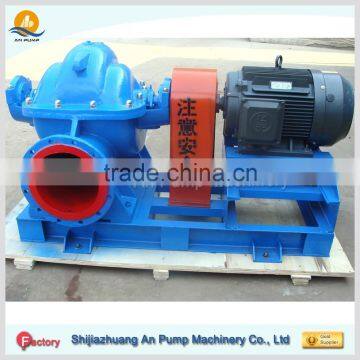

Farmland irrigation system water pumps Pictures
- Standard wooden cases package, if special requirements, should be inform in advance;
- Shipping by sea, by air, by train and truck all available;
- Delivery date: vary from 5-30days according to different model and quantity.
Guarantee and Service
1 year guarantee of whole machine set, except the flow parts
24hours *7 days service is available
Calling or door to door service
User manual and maintenance instruction is available
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An pump machinery company has its own strong type selection & design, research and development team, assure to provide you efficient, energy saving irrigation pumps type design, use and maintenance program.
Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.
Q2. What markets do your pumps export to?
Europe, North & South America, SouthEast Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, Canada, France, America, Middle East, Asia and Africa are gradually improving.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision
and accurate model selection.
Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.
Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
