vertical submersible deep well pump

vertical submersible deep well pump

Specification

1.CE, CCC, ISO9001:2000

2.SS pump and motor
3.Copper wire, brass head
4.Low voltage start (130v)
5.High head, good price

Features

lCompact structure, small volume, light

lSmaller O.D., easy to install and maintenance.

lMore material choice, suitable for various operation conditions.

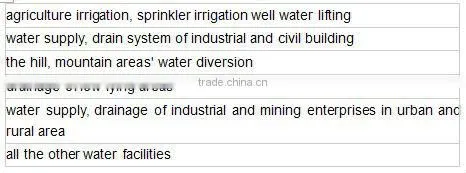

Application

vertical submersible deep well pump characteristics

(1). Motors and pumps assembled into one.
(2). Simple structure.
(3). Easy installation and removal, small area.
(4). Simple using and maintenance.
(5). Safe and reliable operation, no pollution to water, etc.


vertical submersible deep well pump structure explanation

1.Submersible water pump is composed of five parts: water pump,submersible motor,water line,waterproof cable and control switch. Water pump belongs to single suction multistage vertical centrifugal pump.
2.Submersible motor adopts water-filled wet structure,internal chamber was filled with water for cooling the motor and lubricating the bearing.In the operation,due to the changes of temperature,the pressure of the filled water in the internal chamber also changes,it can be automatically regulated by pressure-regulating unit in the lower part of motor.
3.For preventing the sand getting into the motor,the sand-preventing unit including sand slinger and skeleton oil-sealed was installed in the upper part of motor,the whole motor was sealed tightly.
4.There are water injection hole and exhaust hole in the upper part of the motor and discharge hole in the lower part.
5.There are thrust bearing and thrust collar,mainly for sustaining remnant axial force of pump and the empty weight of motor's rotor.

vertical submersible deep well pump drawing

1 More than 25 years'rich experiences in pump business to support you strongly.

2 Having a strong research and development department to keep you updated with true information about China market even the world.

3 Make some special pumps for you when needed.

4 Reacts promptly,such as quick quotation and quick samples.

5 Any other service requested from our customers as long as we can make it.

6 Offer you the good quality product with competitive price.

7,Fast delivery!
