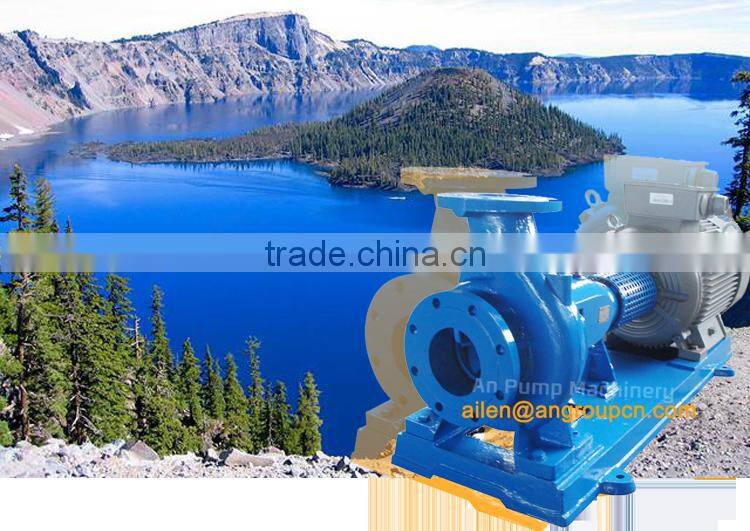

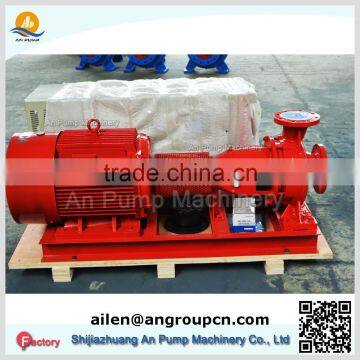

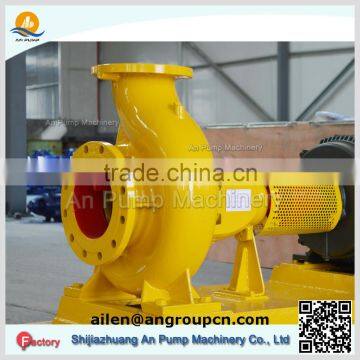

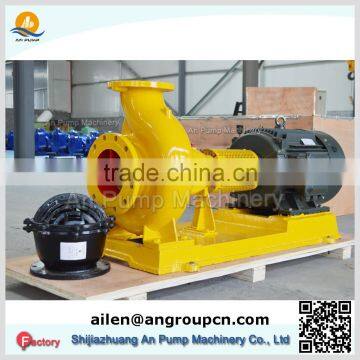

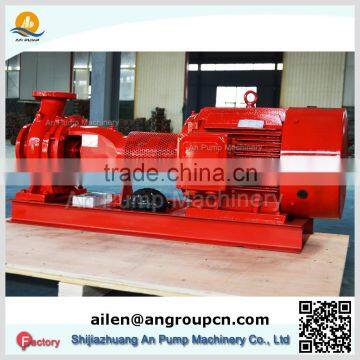

Centrifugal Long Coupled Back Pull Out ISO End Suction Pump
****** OVERVIEW ******
Overview for Centrifugal Long Coupled Back Pull Out ISO End Suction Pump
QI model pump is single-stage end-suction(axial suction) cantilever type centrifugal pump, it have direct coupling type and closed coupled type, which is used to transport corrosive liquid with viscosity similar to water and without solid particles. The marked and rated performances and dimensions adopt ISO2858 international standard.
****** CHARACTERISTICS ******
Characteristics for Centrifugal Long Coupled Back Pull Out ISO End Suction Pump
It has such characteristics as wide range of performance, high efficiency, high mechanical, chemical and physical level and convenient maintenance etc. It is energy saving type product recommended by the nation with its efficiency being 5% greater than that of other similar model pump.
The temperature of transported media of QI model pump is -20 – 125 C deg . Through adopting cooling method, it can transport media with higher temperature if necessary, and is applied to transport various corrosive media or media in which pollution is forbidden similar to water in such industries as chemical industry, petroleum, metallurgy , electric power, papermaking, food, pharmacy and synthetic fiber etc.
****** APPLICATION ******
Application of Centrifugal Long Coupled Back Pull Out ISO End Suction Pump
IS Series Centrifugal End Suction 5HP Diesel Engine Water Pump is used for delivery clearn water or liquid similar water in the properties of physical and chemical.
End suction pump is widely used in water supply or drainager projection in different industries, such as metallurgy, power station, spinning and weaving, chemical, printing, dyeing, ceramics, rubber, heating, afterheating use, air conditioner, farm irrigtion and drainage, and so on...
****** FEATURES ******
Features for Centrifugal Long Coupled Back Pull Out ISO End Suction Pump
It have QI and QIR Type.
QI end suction pump: delivery water not more than 80 Celsius degree.
QIR hot temperature end suction pump: delivery water not more than 150 celsius degree.
If for more higher temperature, please contact Mrs. Ailen Peng ailen(a) , she will help you make the matching solutions.
****** MATERIALS ******
Material list for Centrifugal Long Coupled Back Pull Out ISO End Suction Pump
Metal material |
Rubber Material | ||
Item |
Code |
Item |
Code |
Chrome alloy |
Cr |
Natural rubber |
Ru |
Cast iron |
- |
Synthetic rubber
|
Ternary ethylene, Nitrile rubber, Neoprene rubber, Butyl rubber |
Grey iron |
HT |
||
Ductile cast iron |
QT |
||
Stainless Steel |
SS304, SS306, SS316L |
||
Duplex stainless steel |
CD-4MCu |
||
Bronze |
- |
||
End suction pump Casing |
Cast Iron and Ductile Iron standard; optional Stainless Steel |
IEnd suction pump mpeller |
Bronze standard, optional Cast Iron & Stainless Steel |
End suction pump Shaft |
AISI420 standard, optional AISI304 & AISI316 |
****** PERFORMANCE ******
Performance Curve for Centrifugal Long Coupled Back Pull Out ISO End Suction Pump
Performance table list for Centrifugal Long Coupled Back Pull Out ISO End Suction Pump
| Pump Type | Capacity | Head | Speed | Motor Power(kw) | Eff |
| (m3/h) | (m) | (rpm) | (%) | ||
| QI 50 | 3.4-15 | 3.7-82 | 1450-2900 | 0.55-11 | 21.5-60 |
| QI 65 | 6.8-30 | 3.8-115.4 | 1450-2900 | 0.55-30 | 25-75 |
| QI 80 | 12-60 | 3.6-128 | 1450-2900 | 0.55-37 | 39-75 |
| QI 100 | 24.3-120 | 3.7-133 | 1450-2900 | 1.1-75 | 51-78 |
| QI 125 | 51.4-240 | 8.4-133 | 1450-2900 | 4-110 | 52-81 |
| QI 150 | 104-240 | 13-53 | 1450 | 11-45 | 62-81 |
| QI 200 | 194-460 | 13.1-55 | 1450 | 22-90 | 65.5-82 |
| QI 250 | 320-760 | 22.6-52 | 1480 | 75-132 | 67.5-84.5 |
| QI 300 | 530-1200 | 21.9-38 | 1480 | 90-132 | 61.66-107.6 |
****** CONSTURCTION ******

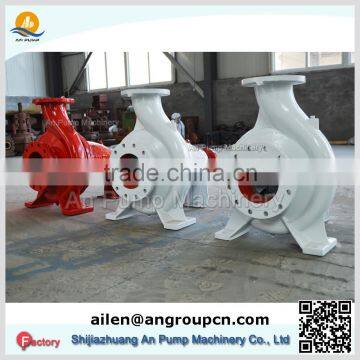

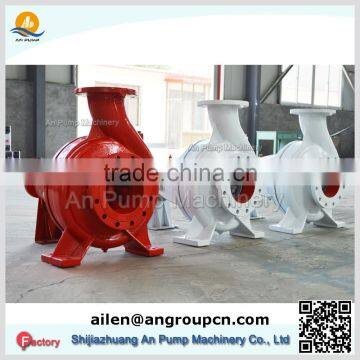

Construction for Centrifugal Long Coupled Back Pull Out ISO End Suction Pump
1 |
Pump casing |
4 |
Impeller nut |
7 |
Mid bracket |
2 |
Impeller |
5 |
Pump cover |
8 |
Shaft |
3 |
Seal ring |
6 |
Seal part |
9 |
Hanging stand |
****** PACKAGING ******
Packaging for Centrifugal Long Coupled Back Pull Out ISO End Suction Pump
****** SHIPPING ******
Shipping for Centrifugal Long Coupled Back Pull Out ISO End Suction Pump
****** AN PUMP SERVICE ******
****** AN PUMP HISTORY ******
****** AN PUMP GROUP ******
****** AN PUMP CERTIFICATIONS ******
Contact AN PUMP for Centrifugal Long Coupled Back Pull Out ISO End Suction Pump
