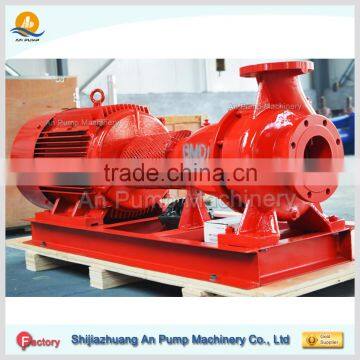

QI series end suction pump for farming water pump
Shijiazhuang An Pump Machinery Co.,Ltd is a manufacturer and trading enterprise, which is mainly engaged in pump designing, manufacturing, selling and service. We develop the international trading business of mining equipment, slurry pumps, and water pumps according the wide customer resource, comprehensive technology and reasonable staffing.
An pump machinery’s main products includes: slurry pump, desulfurization pump, gravel pump, mud pump, sewage pump, submersible pump, submersible sewage pump, impurity pump, large capacity split casing pump, high head multistage water pump,end suction pump, self priming pump, pump parts and ancillary equipment). which can satisfy different kinds of demands.
Centrifugal water pump specification -- farming water pumps
1.Capacity 6.3-400m3/h
2.Head 5-125m
3.Speed 2900 r/min or1450 r/min
4.Discharge 50-200mm
5.Medium temparature: No more than102 degree centigrade
6.Working pressure: No more than0.6 centrifugal pump
General description of farming water pumps
The centrifugal pump is single-stage and single-suction centrifugal pump, which designed according to ISO2858 international standard and the replacement product of BA-type water pump. It is widely used in industrial and municipal water supply and drainage, agricultural irrigation and can also be used for conveying water or physical and chemical properties similar to water or other liquids bellow 80° C.
The pump is also designed according to ISO2858 international standard, which designed for boiler feed water and hot water circulation system. It could also be used for industrial and municipal water supply and irrigation, but the temperature should be not higher than 150° C.
Performance Parameters of farming water pumps
| Type | Flow(m3/h) | Head(m) | Power(KW) | Speed(r/min) |
| QI50 | 3--15 | 3.7--82 | 0.55--11 | 1450--2900 |
| QI65 | 6--30 | 3.8--115.4 | 0.55--30 | 1450--2900 |
| QI80 | 12--60 | 3.6--116.9 | 0.55--37 | 1450--2900 |
| QI100 | 23.7--120 | 3.7--133 | 1.1--75 | 1450--2900 |
| QI125 | 51.4--240 | 8.4--133 | 4--110 | 1450--2900 |
| QI150 | 104--240 | 13--53 | 11--45 | 1450 |
| QI200 | 194--400 | 13.1--55 | 22--90 | 1450 |
| QI250 | 320--760 | 22.6--46.8 | 75--110 | 1480 |
| QI300 | 530--1200 | 21.9--38 | 90--132 | 1480 |
Material list of farming water pumps
Material |
Common(G) |
Wear resistant(P) |
Ultrawear resistant(N) |
Stainless steel(F) |
Pump casing |
HT200 |
QT500-7 |
Wear resistant |
SS304 |
Pump cover |
HT200 |
QT500-7 |
Wear resistant |
SS304 |
Impeller |
SS304 |
Duplex SS |
Duplex SS |
Duplex SS |
Liner of front and behind |
Wear resistant steel |
Wear resistant steel |
Wear resistant |
Duplex SS |
Bearing body |
HT250 |
HT250 |
HT250 |
HT250 |
Shaft |
3Cr13 |
3Cr13 |
3Cr13 |
3Cr13 |
Shaft sleeve |
2Cr13 |
2Cr13 |
2Cr13 |
SS304 |
farming water pumps Application
Domestic Water Supply
Fire Fighting
Circulation for Air-condition System
Agricultural Irrigation
Industrial Water Supply
Sea Water Pumping
Drainage
Municipal Projects.
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
