API610 Centrifugal waste oil transfer pump
1.Centrifugal End Suction Pump Performance:
Centrifugal End Suction Pump Performance | |||||
Pump Type |
Capacity (m3/h) |
Head (m) |
Speed (rpm) |
Motor Power(kw) |
Eff (%) |
QI 50 |
3-14 |
3.7-82 |
1450-2900 |
0.55-11 |
21.5-60 |
QI 65 |
6-30 |
3.8-115.4 |
1450-2900 |
0.55-30 |
25-75 |
QI 80 |
12-60 |
3.6-128 |
1450-2900 |
0.55-37 |
39-75 |
QI 100 |
24.3-120 |
3.7-133 |
1450-2900 |
1.1-75 |
51-78 |
QI 125 |
51.4-240 |
8.4-133 |
1450-2900 |
4-110 |
52-81 |
QI 150 |
104-240 |
13-53 |
1450 |
11-45 |
62-81 |
QI 200 |
194-460 |
13.1-55 |
1450 |
22-90 |
65.5-82 |
QI 250 |
320-760 |
22.6-52 |
1480 |
75-132 |
67.5-84.5 |
QI 300 |
530-1200 |
21.9-38 |
1480 |
90-132 |
61.66-107.6 |

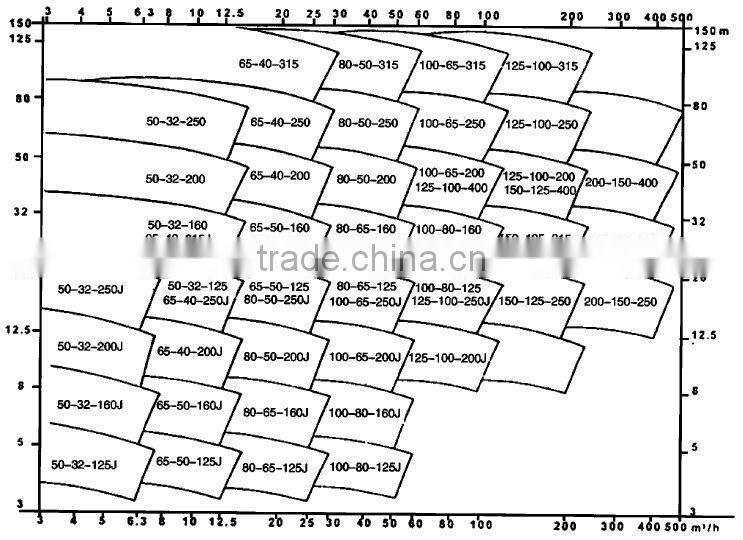

2.Centrifugal End Suction Pump Performance Curve:
3.Centrifugal End Suction Pump Introduction:
QI series pump is single-stage , single-suction centrifugal pump , desiged as per the interational standard ISO2858 . It is a replacement of type BA water pump which is applicable to industrial and urban water supply and discharge as well as the agriculture irrigation . It can be used to transport liquid which have physical and chemical properties similar to clean water with a temperature not exceeding 80°C.
QI series pump is designed according to the functions and dimensions the international standard ISO2858 requires by our company . It is suitable for hot boiler water supply , hot water circulation system , industrial and urban water supply and discharge as well as the agriculture irrigation . Nevertheless , the temperature of the water should be no more than 150°C.
4.Application:
1)Clean, thin, non-corrosive, non-flammable or non-explosive liquid without grain or fiber;
2)Water supply system;
3)Heat, air condition system;
4)Booster, constant pressure water supply;
5)Firefighting, splitting system;
6)Irrigating, farming;
7)Industry cooling, heater circulation system;
8)Industry transferring, drainage system;

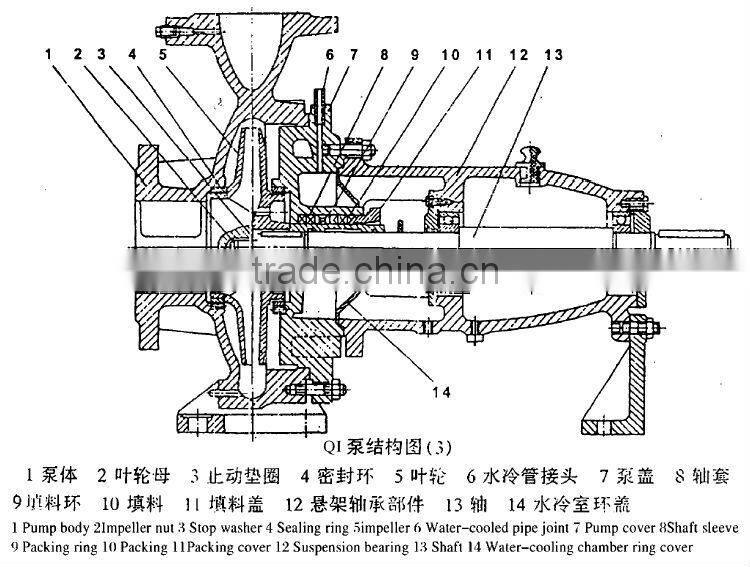

5.Centrifugal End Suction Pump Constructure:

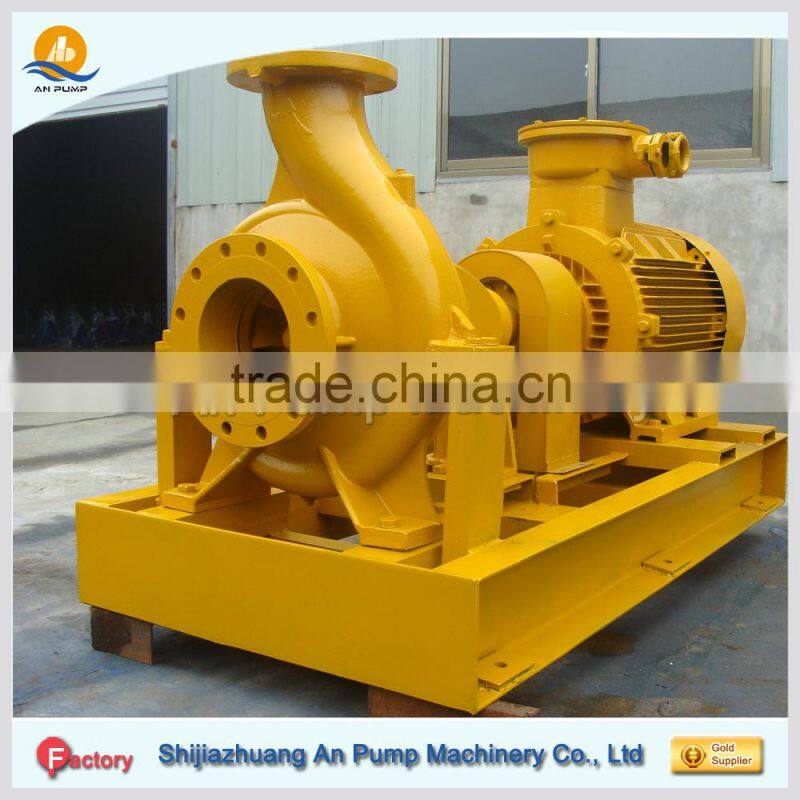

6.Our Product:
7.Our Factory:

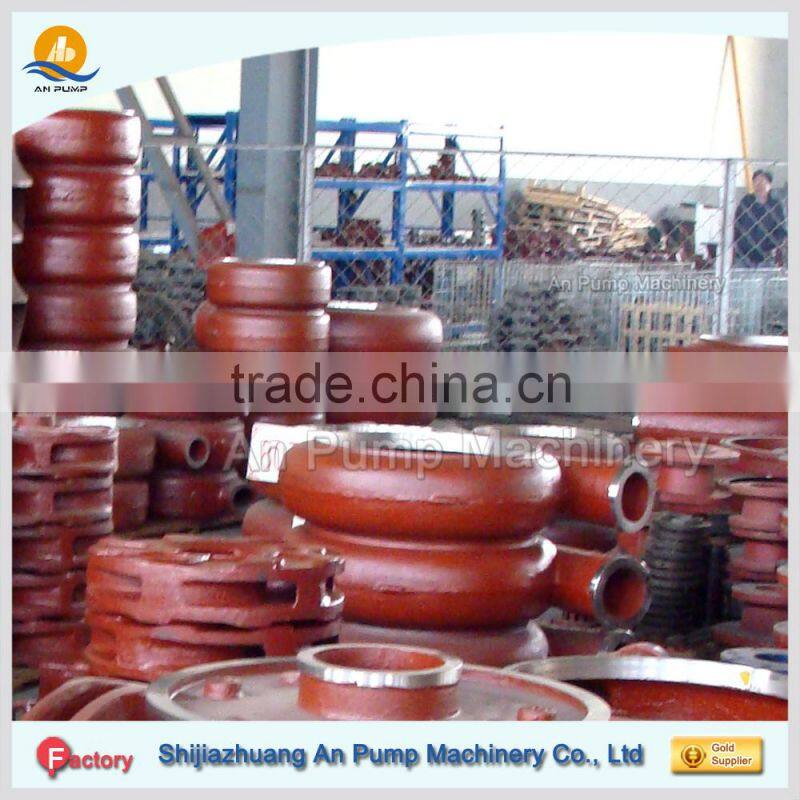

8.Spare Parts:
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has its own Kingda type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
Strong , experienced technical personnel is the powerful guarantee for quality products of slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps. An Pump Machinery technical team set up five R & D teams: hydraulic engineering, water pump structure, new materials research and development, casting, molding etc. Except the commonly used CAD and other design software, the technical teams also use CAPP computer-aided industrial design and CFD hydraulic design software. They combine years of experience in the practical application of the products, repeated use of water conservancy GIS, MIS software and simulation analysis system software demonstrated, calculations, the theoretical calculations product of slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps are accurate and consistent with the actual performance. It allowing users to meet the needs while significantly reducing the investment costs, improves An Pump Machinery Company's strong core competitiveness.
24x7 service for your API610 Centrifugal waste oil transfer pump:
Roger Chen
P: +86 311 899 40549
F: +86 311 862 71170
Office C: +86 150 3285 7866
Personal C: +86 137 805 12387
Wechat /whatsapp: +86 137 805 12387
Skype: chenroger1215
Email: roger at
Email: pump at
(Please put "@" to "at" when you send the email)
