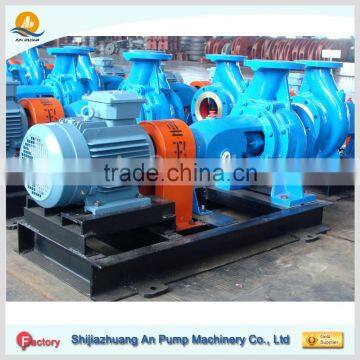

Stainless Steel Sulfuric Acid Chemical Pump

Name: Stainless Steel Sulfuric Acid Chemical Pump
Brand: An Pump
SKU: 141179508
Availability: InStock

US$ 110 - 7,500 MOQ: 1 Set

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

An Pump

Model Number:

QI sulfuric acid pump

Shijiazhuang An Pump Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang/Shenzhen/Shanghai/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name An Pump

Model Number QI sulfuric acid pump

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Other, end suction pump,siemens pump

Power Other, electric pump,clean water pump

Standard or Nonstandard Other, standard,siemens pump,clean water pump

Fuel Other, electric or diesel,diesel water pump,condensate pump

Pressure Other, high pressure pump,electric water pump,

Application Other, agricultural/industry,condensate pump,industrial water pump

stainless steel sulfuric acid chemical pump

Product Description

stainless steel sulfuric acid chemical pump details

Working Principle:	Centrifugal type
Main applications:	Chemical
Driver:	Electric motor or Diesel engine
Power Specs:	220V, 240V, 380V, 400V, 415V, 440V, 50hz/60hz
Max.permissible fluid temperature:	105°C(221°F)
Type of connection:	Flange
Installation position:	Horizontal chemical pump
Casing/Inner parts material:	Cast iron,SS 304,SS 316L,Duplex SS
Shaft seal type:	Mechanical seal
Maximum drive rating:	90KW(10HP)
Maximum caliber:	300mm(12 inch)
Maximum discharge-side pressure:	1.25MPa(12.5bar)
Maximum head:	125m(410ft)
Flow rate range:	6.3-400m3/h(27.7-1760US.GPM)

stainless steel sulfuric acid chemical pump parameter

Centrifugal End Suction Pump Performance
Pump Type	Capacity (m3/h)	Head (m)	Speed (rpm)	Motor Power(kw)	Eff (%)
QI 50	3-14	3.7-82	1450-2900	0.55-11	21.5-60
QI 65	6-30	3.8-115.4	1450-2900	0.55-30	25-75
QI 80	12-60	3.6-128	1450-2900	0.55-37	39-75
QI 100	24.3-120	3.7-133	1450-2900	1.1-75	51-78
QI 125	51.4-240	8.4-133	1450-2900	4-110	52-81
QI 150	104-240	13-53	1450	11-45	62-81
QI 200	194-460	13.1-55	1450	22-90	65.5-82
QI 250	320-760	22.6-52	1480	75-132	67.5-84.5
QI 300	530-1200	21.9-38	1480	90-132	61.66-107.6
