QI series industrial chemical circulating pump
QI series industrial chemical circulating pump specification
Working Principle: |
Centrifugal type |
Main applications: |
Chemical |
Driver: |
Electric motor or Diesel engine |
Power Specs: |
220V, 240V, 380V, 400V, 415V, 440V, 50hz/60hz |
Max.permissible fluid temperature: |
105°C(221°F) |
Type of connection: |
Flange |
Installation position: |
Horizontal chemical pump |
Casing/Inner parts material: |
Cast iron,SS 304,SS 316L,Duplex SS |
Shaft seal type: |
Mechanical seal |
Maximum drive rating: |
90KW(10HP) |
Maximum caliber: |
300mm(12 inch) |
Maximum discharge-side pressure: |
1.25MPa(12.5bar) |
Maximum head: |
125m(410ft) |
Flow rate range: |
6.3-400m3/h(27.7-1760US.GPM) |
QI series industrial chemical circulating pump structure
QI series industrial chemical circulating pump introduction
QI series pump is single-stage , single suction centrifugal pump , desiged as per the interational standard
ISO2858 .It is a replacement of type BA water pump which is applicable to industrial and urban water supply
and discharge as well as the agriculture irrigation . It can be used to transport liquid which have physical and
chemical properties similar to clean water with a temperature not exceeding 80°C.
QI series pump is designed according to the functions and dimensions the international standard ISO2858 requires by our company . It is suitable for hot boiler water supply , hot water circulation system , industrial and urban water supply and discharge as well as the agriculture irrigation . Nevertheless , the temperature of the water should be no more than 150°C.
QI series industrial chemical circulating pump application
♦ urban water supply and drainage |
♦ central heating system water supply and sewerage |
♦ iron and steel metallurgy enterprises |
♦ paper mills |
♦ petrochemical refineries |
♦ oil fields |
♦ construction of thermal power plants and power stations |
♦ airports, chemical factories |
♦ textile mills, sugar factories |
♦ chemical plants, power stations |
♦ mines |
♦ farmland drainage irrigation and hydraulic engineering. |
Application on site

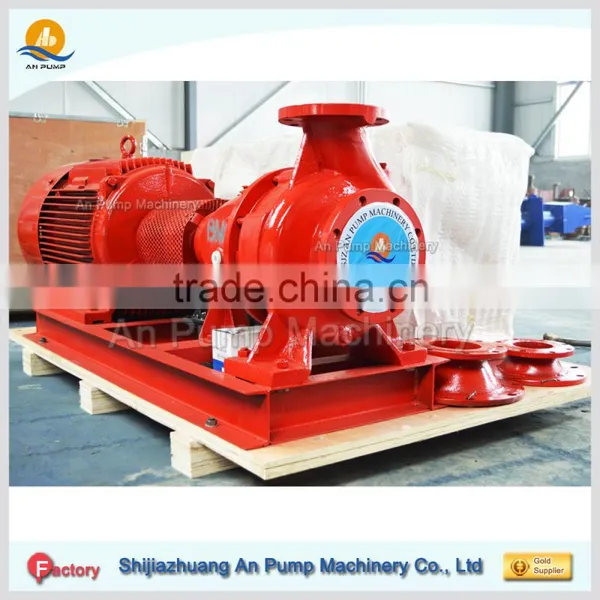

QI series industrial chemical circulating pump packing and shipping
Our Services
1. Offer Large capacity pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Our Main Products
Some clients visit our factory
Learn more , please contact us directly.
