Y&L (China) Electric Motor Mixed Flow Transfer Pump/Electric Motor Mixed Flow Clear Water Pump
- 5000 Unit / Units per Month
- Shanghai /Ningbo
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Y&L/DEFU | Model Number: | HW |
Theory: | Mixed Flow Pump | Structure: | Other, horizontal single suction single stage pump | Usage: | Other, Agriculture Machinery/Equipment |
Power: | Other, 3kw, 4kw, 7.5kw, 11kw, 18.5kw, 55kw, 110kw, 250kw etc | Standard or Nonstandard: | Standard | Fuel: | Other, Electric Motor |
Pressure: | Other, 0-20m low pressure | Application: | Other, Irrigation, fire fighting, flood etc. |
Product Description

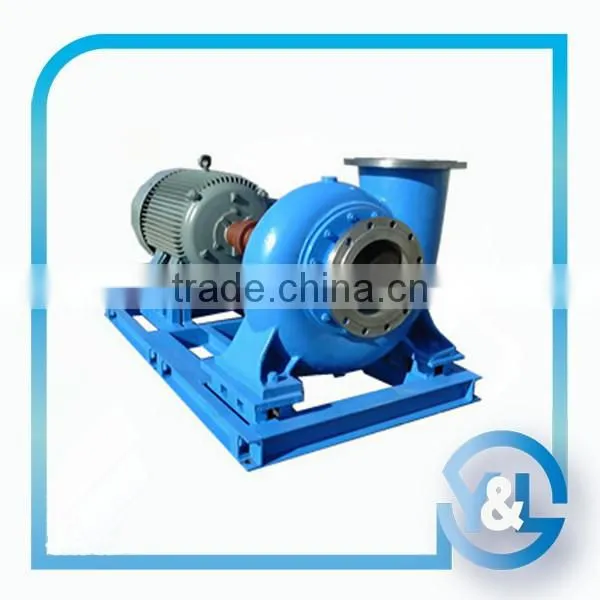

Y&L (China) Electric Motor Mixed Flow Transfer Pump/Electric Motor Mixed Flow Clear Water Pump
Product Introduction
This Horizontal mixed-flow pump is a kind of shell type single suction pump with one impeller .The reasonal structure makes for simple structure, reliable in operation, easy installation, high efficiency, small dimension, light weight.
Mixed Flow Pump Can With Electric Motor By Belt Coupling
Mixed Flow Pump With Electric Motor By Directly Coupling
Shanghai Y&L Pump Company | Electric Motor Mixed Flow Transfer Pump | |
Mixed Flow Pump
| Pump Model | 150HW-5S |
Pump Inlet/outlet Diameter | 150mm(6 inch) | |
Pump Flow at Pump Head | 137m3/h at 6.1m, 180m3/h at 5m, 216m3/h at 3.7m | |
Pump Speed | 1450rpm | |
Shaft Power | 3kw | |
Motor Power | 4kw(5HP) | |
Pump Efficiency | 80.5% | |
Pump Net Weight | 65kg | |
Enigine | Engine Type | Air cooler or water cooler |
Motor | Motor Type | general motor or explosion-proof motor |
Performance Curve For All Pump Models
( Detailed parameters pls do not hesitate to contact us!)
This single stage mixed flow pump is applicable for transporting clear water, pulp with the concentration no more than 3%, solution with PH value from 3-10 and fiber length no more than 80mm, as well as other liquid with the physicochemical property similar to that of water. The liquid temperature shall be no more than 50℃.
Our horizontal mixed-flow pump can be widely seen in irrigation, wastewater treatment system and municipal water supply and drainage system. Additionally, our company can also offer low-head mixed-flow pump, which features large flow, low energy consumption and high efficiency. It is particularly suitable for pump station construction and renewal.
Bare Shaft Pump
1. Q: Whats the MOQ ?
A: 1 set for regular product ,the special one we need to discuss.
2. Q : What're your payments ?
A: For small order valve < 4000USD, our customer chose 100% T/T.
For order valve >4000USD, we can accept 30 % T/T inadvance , 70 % should be paid before shipping.
3 . Q : How long is the deliver time ?
A : For the order in stock ,we will deliver goods at once against payment.
For the orders out of stock , the products time is 7 days for bare pump, 25days for electric pump set or diesel engine pump set , the deliver time is base on the shipping date and your order by sea.
4. Q: What about the package ?
A : Standard export Plywood case .
5.Q : How is the pump delivered to us ?
A : For small order will be delivered by internation express ,like DHL,TNT ,FEDEX,UPS.
For large order ,it will be delivered by air ,sea ,vehicle or multi-modal transport.
6. Q : How long is the warranty ?
A: According to the internation standards , pump in standard operation is 1 year ,3 monthes for spare parts.
Our factory name is Shanghai Y&L Pump Co., Ltd, located in Shanghai, major produce the diesel dewatering pumps,sewage pumps etc, original started in 1997, and we start to produce the self priming pump sewage pump in 2002.
In 2012, it founded the trading company named Wenzhou DEFU Machinery Co., Ltd, office located in Wenzhou,Zhejiang. We made many cases until now, such as high flow pumps for mining project in Indonesia, 10set flood pumps for Thailand government, 18pcs end suction pumps for irrigation (pumping sea water) in Malaysia etc.
Certificate
